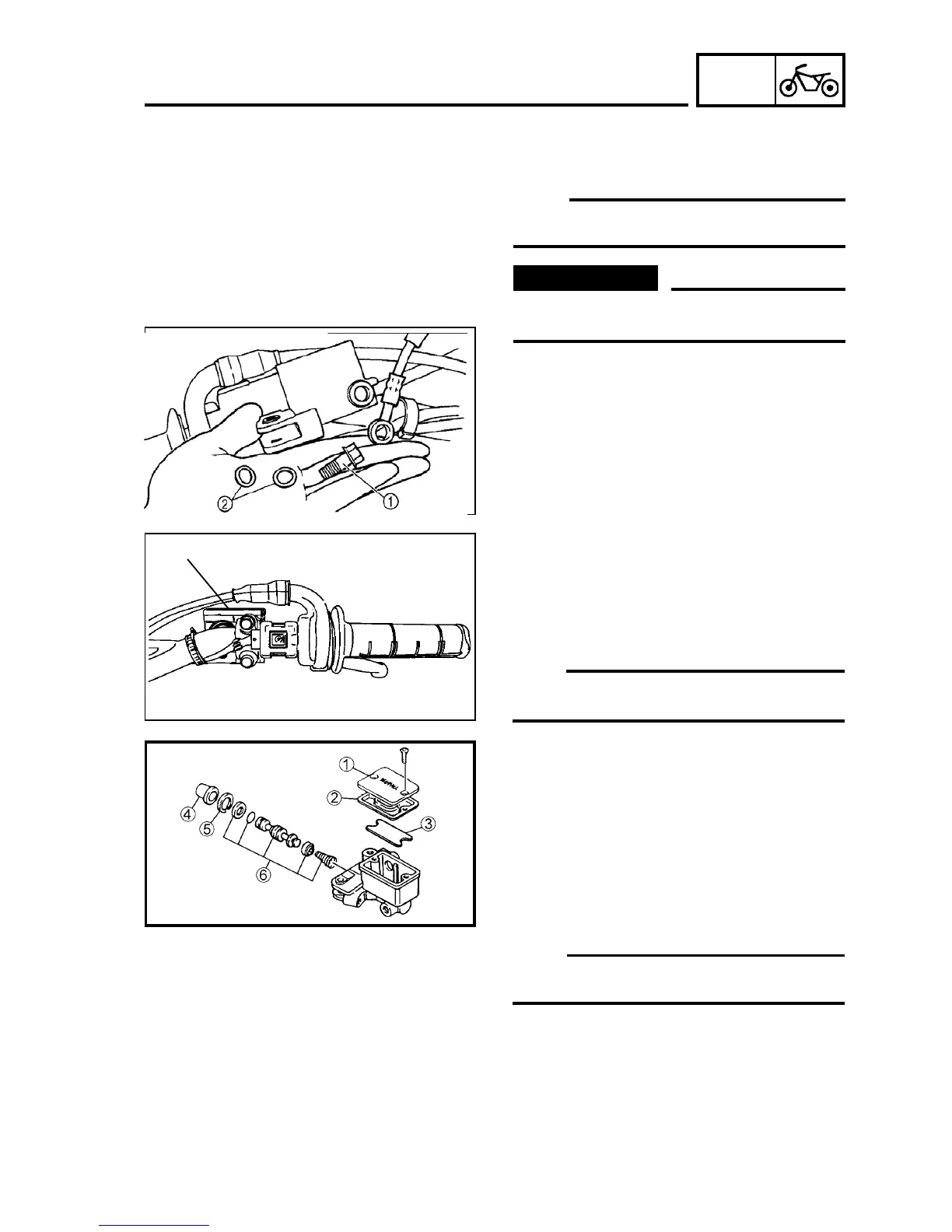

FRAME

3. Remove:

• Master cylinder cover 1

• Diaphragm 2

• Plate 3

• Dust protector 4

• Lock ring 5

• Master cylinder kit 6

NOTE:

Place a container under the master cylinder in

order to collect the remaining brake fluid.

NOTE:

Remove the lock ring using a pair of pliers

for internal lock ring.

FRONT BRAKE

6-14

WARNING

Support the motorcycle firmly preventing

it from falling.

NOTE:

Before dismounting the master cylinder, drain

the brake fluid.

MASTER CYLINDER DISMOUNTING

1. Remove:

• Connection screw 1

• Copper washers 2

2. Remove:

• Master cylinder 1

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
