ELECT
7-4
SWITCH CHECKS
CHECKING THE SWITCH
CONNECTIONS
1. Disconnect the main switch coupling
from the harness.
2. Verify if some wire is disconnected from
its terminal inside the coupling. If a wire is
disconnected, repair it.
Before checking the switches, see the
connection table and check the color
combinations.
To understand how to check the switches,
see the following example:

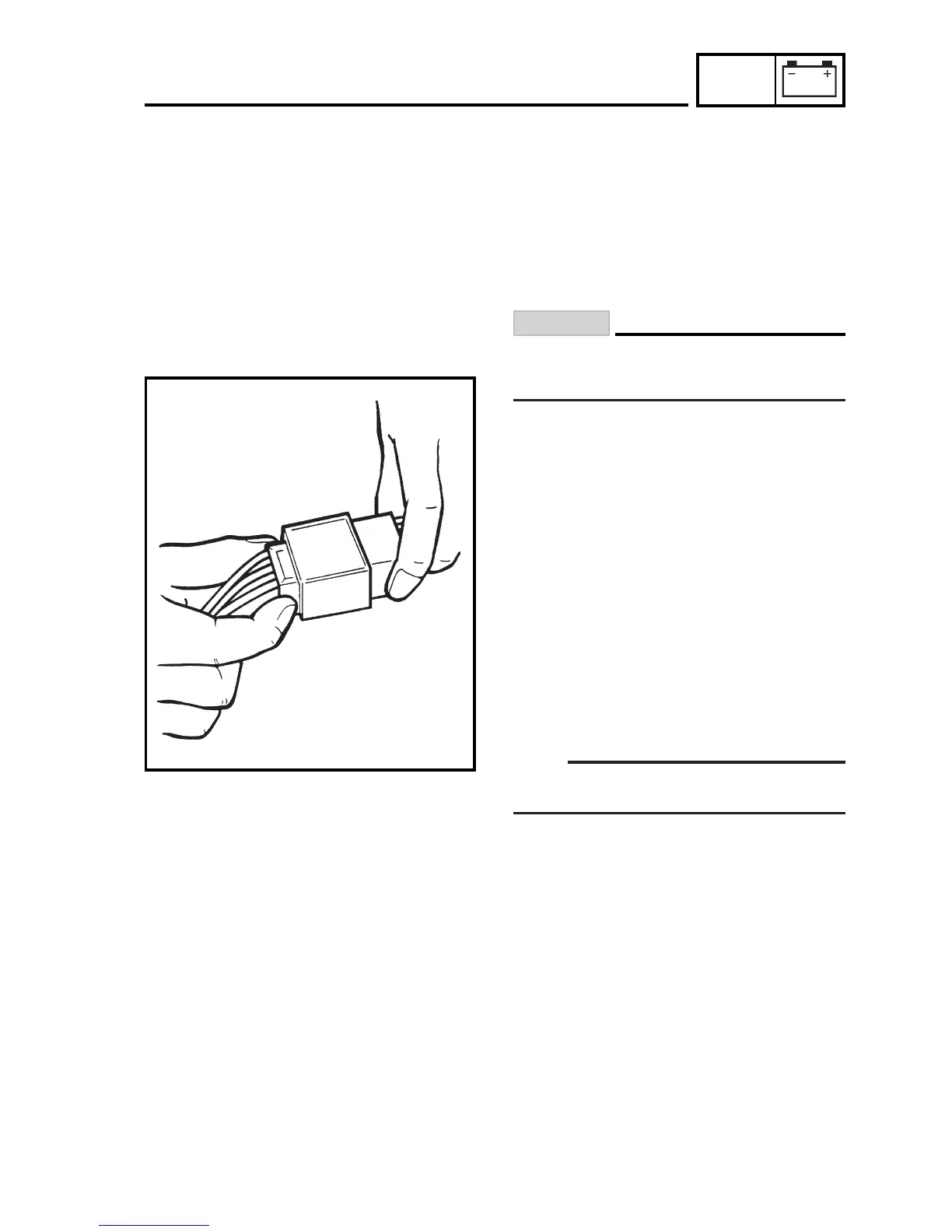

CAUTION:
Do not disconnect the couplings by pulling
them by the wires, otherwise the wires may
separate from their terminals.
NOTE:
If the coupling is dirty with mud or dust,
blow it with compressed air.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
