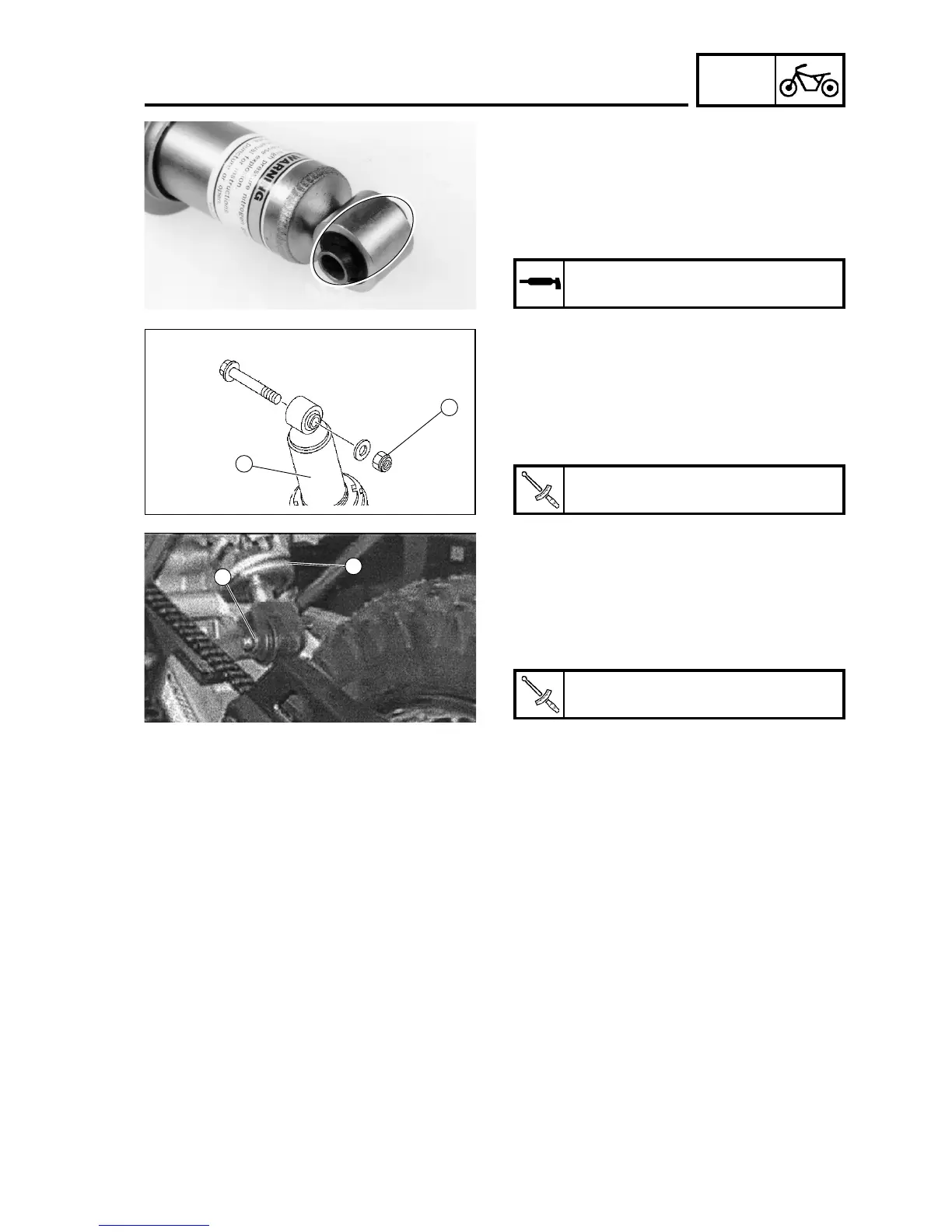

FRAME
1. Lubricate:
• Bushing (internal surface)
INSTALLATION
Shock Absorber
Reverse the "REMOVAL" procedures.
Lithium-based grease
6-60
REAR SHOCK ABSORBER AND BALANCE
2. Install:
• Shock absorber 1 (upper part)
3. Tighten:
• Nut 2
4. Install:
• Shock absorber 1 (lower part)
5. Tighten:
• Nut 2
6. Install:
• Air filter box
• Seat
• LH side cover
1
2
1
2
Nut
22
22
2 (lower part):
34.5 N.m (3.4 kgf.m; 25 ft.lb)
Nut
22
22
2 (upper part):
34.5 N.m (3.4 kgf.m; 25 ft.lb)

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
