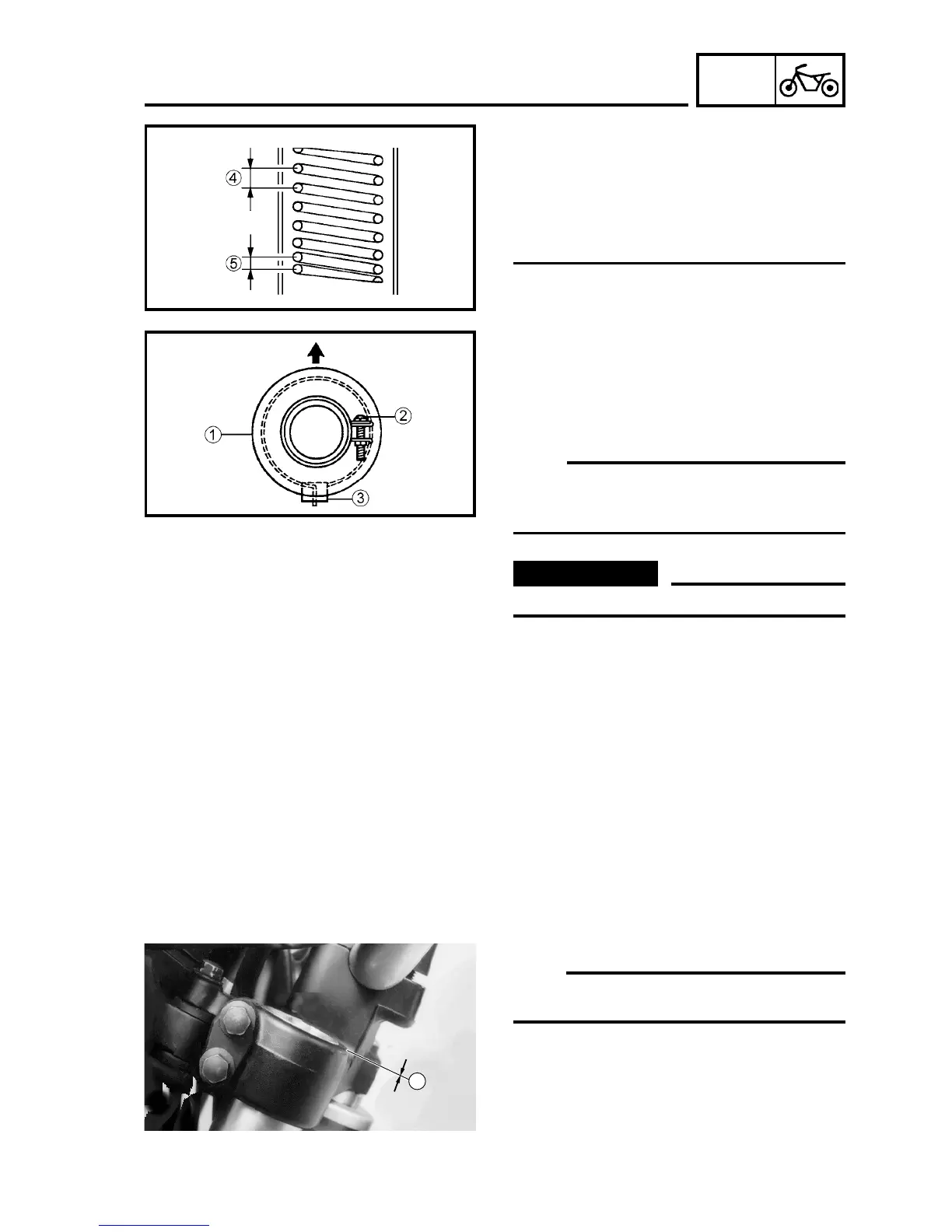

FRAME
FRONT FORK
6-38
a
NOTE:
• Install the spring with the longest pitch
4 up. 5 shorter pitch.
• Before installing the spring seat, apply
grease to the O-ring.
• Compress the spring seat and install the
lock ring.
INSTALLATION
Always use a new plastic belt.
NOTE:
Install the tie wrap and the plastic belt as
shown in the figure.
Cut the plastic belt end 3.
13. Install:
• Dust cover 1 (LH)
• Tie wrap 2
• Plastic belt 3
VV
VV
V
WARNING
Reverse the "REMOVAL" procedure.
NOTE:
Adjust the internal tube flush a with the
top of the upper handle-bars board.
1. Install:
• Front fork
Tighten the board screws temporarily.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
