Yamaha ttr230 User Manual

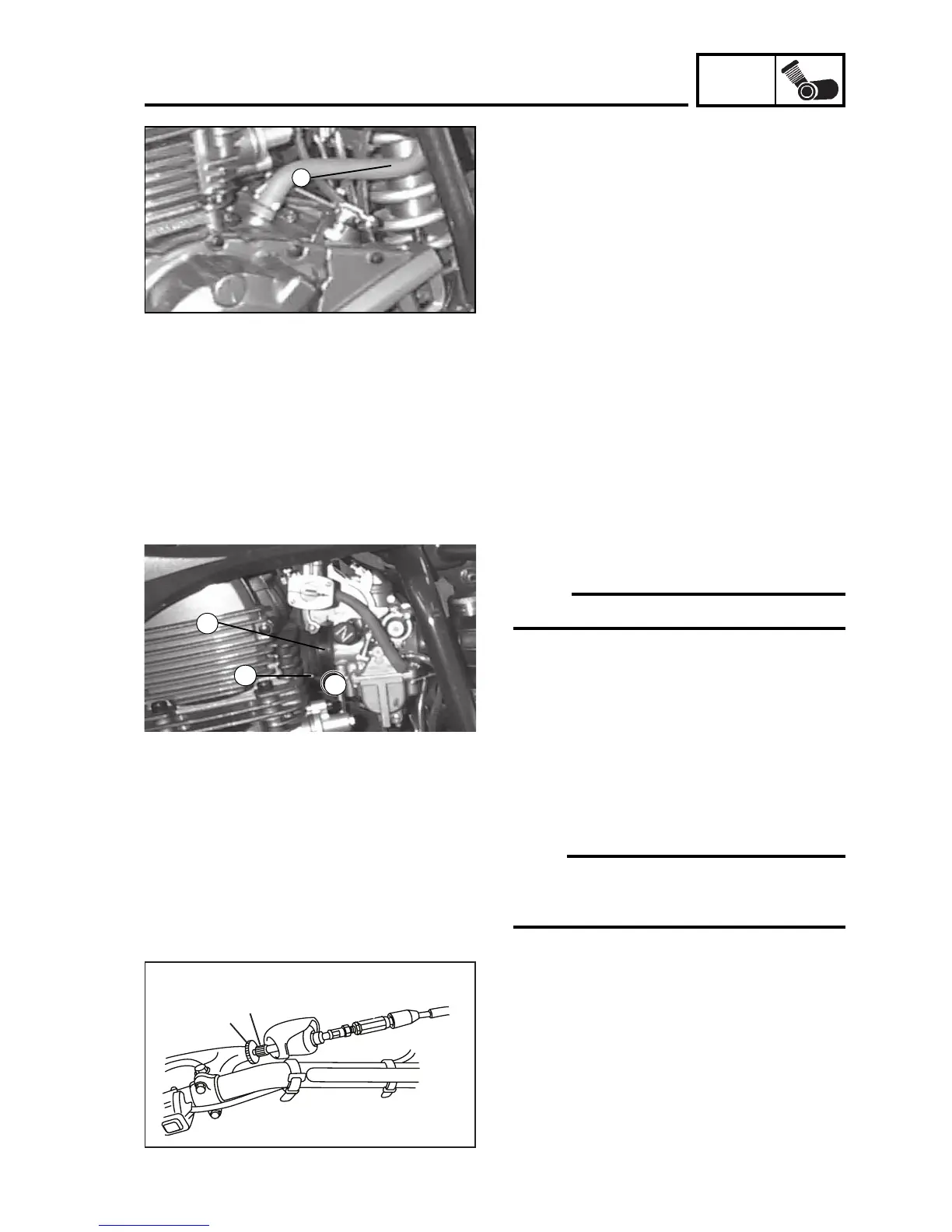

ENGINE
ENGINE REMOVAL
4-3
CABLES AND WIRING
NOTE:
Cover the carburetor with a clean cloth in
order to prevent dirt from entering the
carburetor.
BREATHER HOSE
AND CARBURETOR
1. Disconnect:
• Engine breather hose 1
2. Drain:
• Fuel (bowl chamber)
3. Loosen:
• Bolts 1 (carburetor connections)
NOTE:
Move the carburetor tie wrap 2 back.
4. Loosen:
• Bolts 3 (intake manifold)
5. Disconnect:
• Carburetor (through the left side of
the motorcycle)
1. Loosen:
• Nut 1
• Adjuster 2
(cable adjusting screw)
2. Disconnect:
• Clutch cable
(clutch lever and cable fastener)
1
1
3
2
3
4
1
2

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
