FRAME
6-12
FRONT BRAKE
VV
VV
V
WARNING
Support the motorcycle firmly preventing
it from falling.

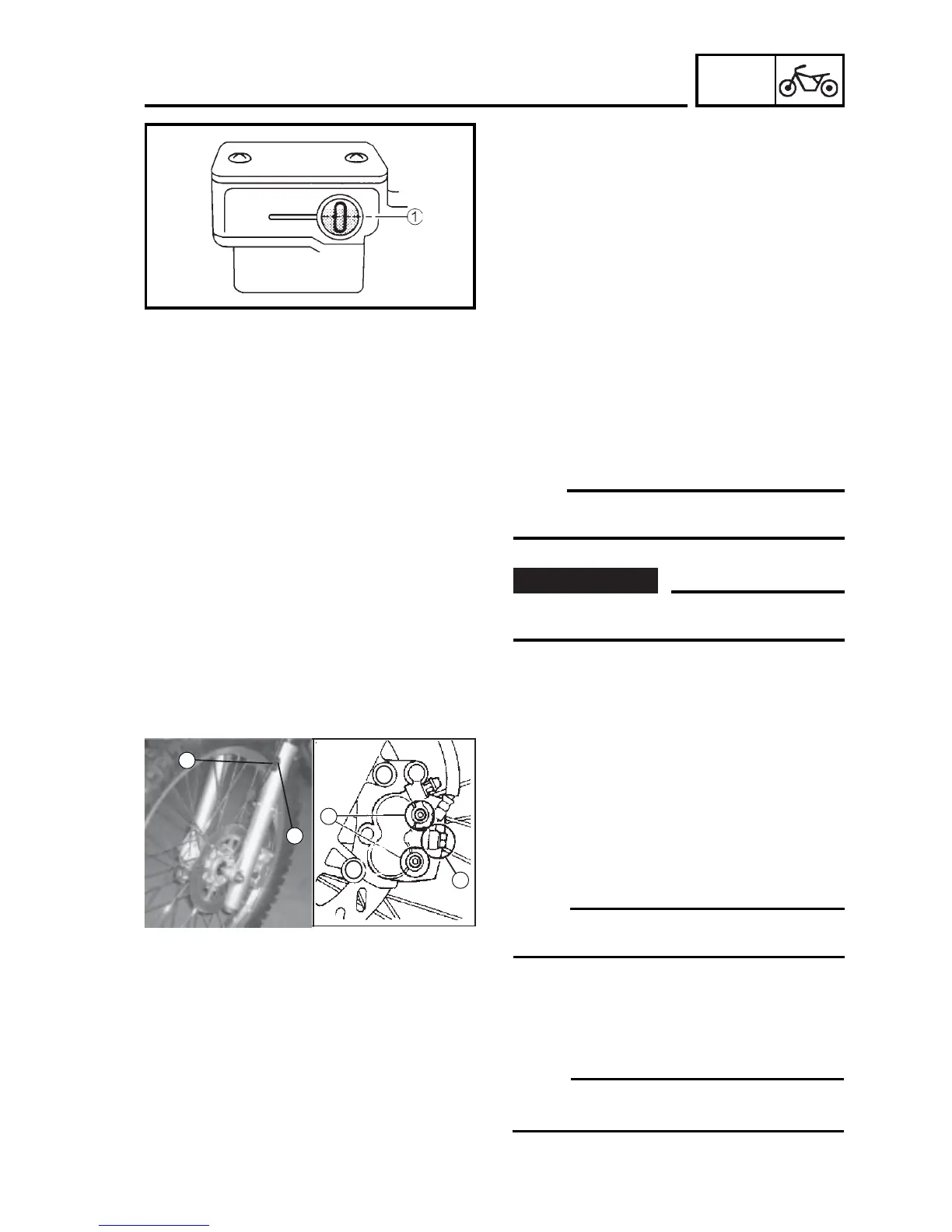

BRAKE CALIPER DISMOUNTING
NOTE:
Before dismounting the brake caliper, drain
the brake fluid.
NOTE:
Loosen just a little in order to prevent the
brake fluid from leaking.
4. Remove:
• Screws 3
• Connection screw 4 and copper
washers
1. Remove:
• Screws 1 (brake hose fastening).
• Brake hose fastener 2.
3. Loosen:
• · Connection screws 4
9. Check:
• Brake fluid level.
See Section "FRONT BRAKE FLUID LEVEL
CHECK," CHAPTER 3.
1 Low level "LOWER."
10. Check:
• Brake lever operation
Soft, spongy touch => Bleed the brake
See Section "AIR BLEEDING," CHAPTER 3.
LOWER
NOTE:
Place a container under the caliper in order
to collect the remaining brake fluid.
2
1
3
4

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
