ENGINE
INSPECTION AND REPAIR
4-40

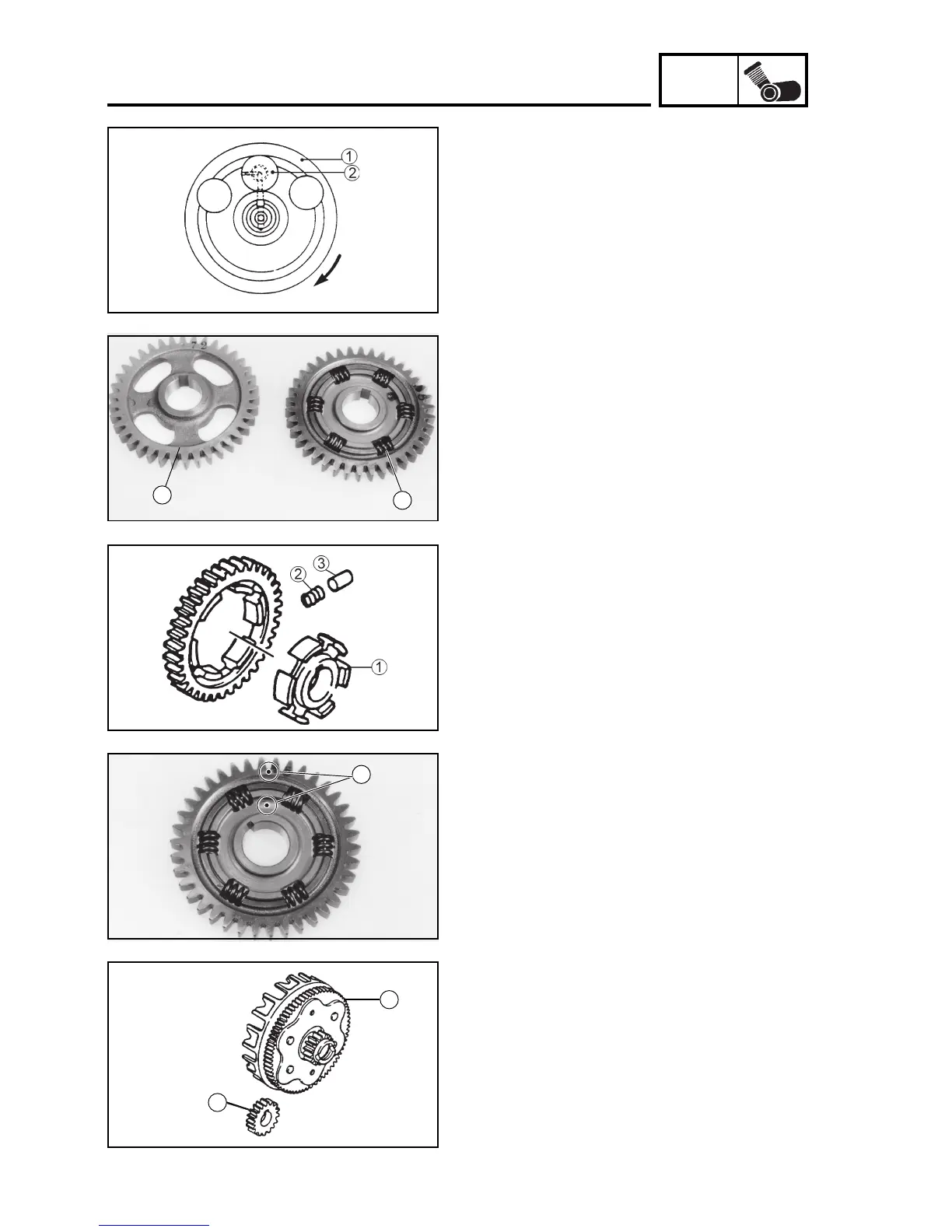

Crankshaft mounting:
The crankshaft 1 and the crankshaft pin
oil passage 2 should be correctly aligned
with a maximum tolerance of 1 mm.
1. Check:
• Primary gear teeth 1
• Driven gear teeth (sleeve) 2
Wear/damages => Replace both gears.
Excessive running noise =>
Replace both gears.
PRIMARY GEAR
1. Check:
• Balancer driving gear teeth 1
• Balancer gear teeth 2
Wear/damages => Replace gears.
BALANCER GEARS
*************************************
*************************************
2. Check:
• Impact hub 1
• Spring 2
• Dowel pin 3
Wear/breakage/damages => Replace.
3. Check:
• Dot marks 1
• Align the marks
2
1
1
2
1

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
