Yamaha ttr230 - Crankshaft

ENGINE
ENGINE DISMOUNTING
4-21
NOTE:
Verify that the tool spindle is aligned with
the crankshaft center line.
CRANKSHAFT

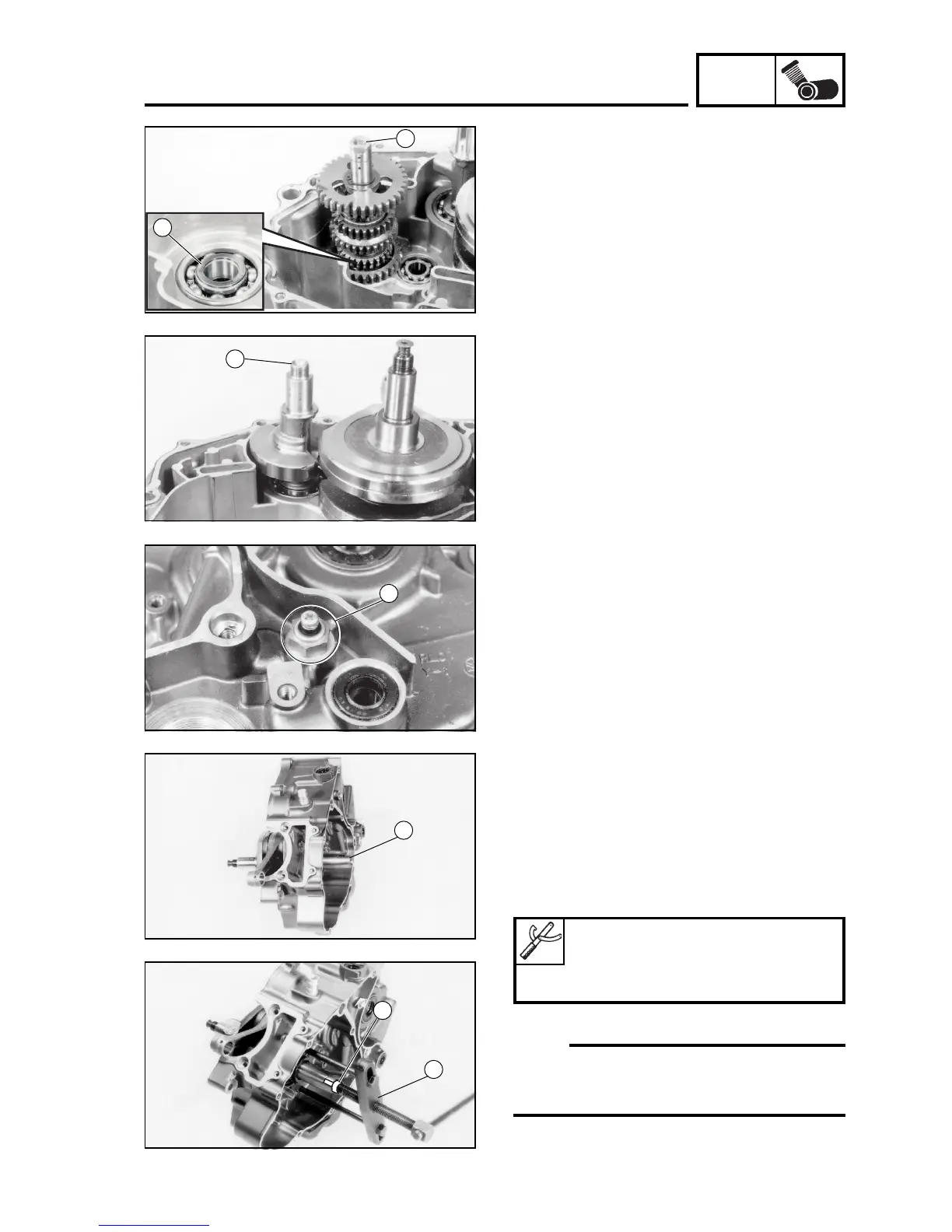

3. Remove:
• Secondary shaft assembly 1
• Washer 2
4. Remove:
• Balancer shaft 1
5. Remove:
• Dead center switch 1
1. Remove:
• Crankshaft assembly 1
Use the case separator 2 and the
adapter 3.
1
1
2
1
1
Case separator:
90890-03081
Adapter:
90890-01382
2
3
