Yamaha ttr230 User Manual

FRAME
FRONT BRAKE
6-8

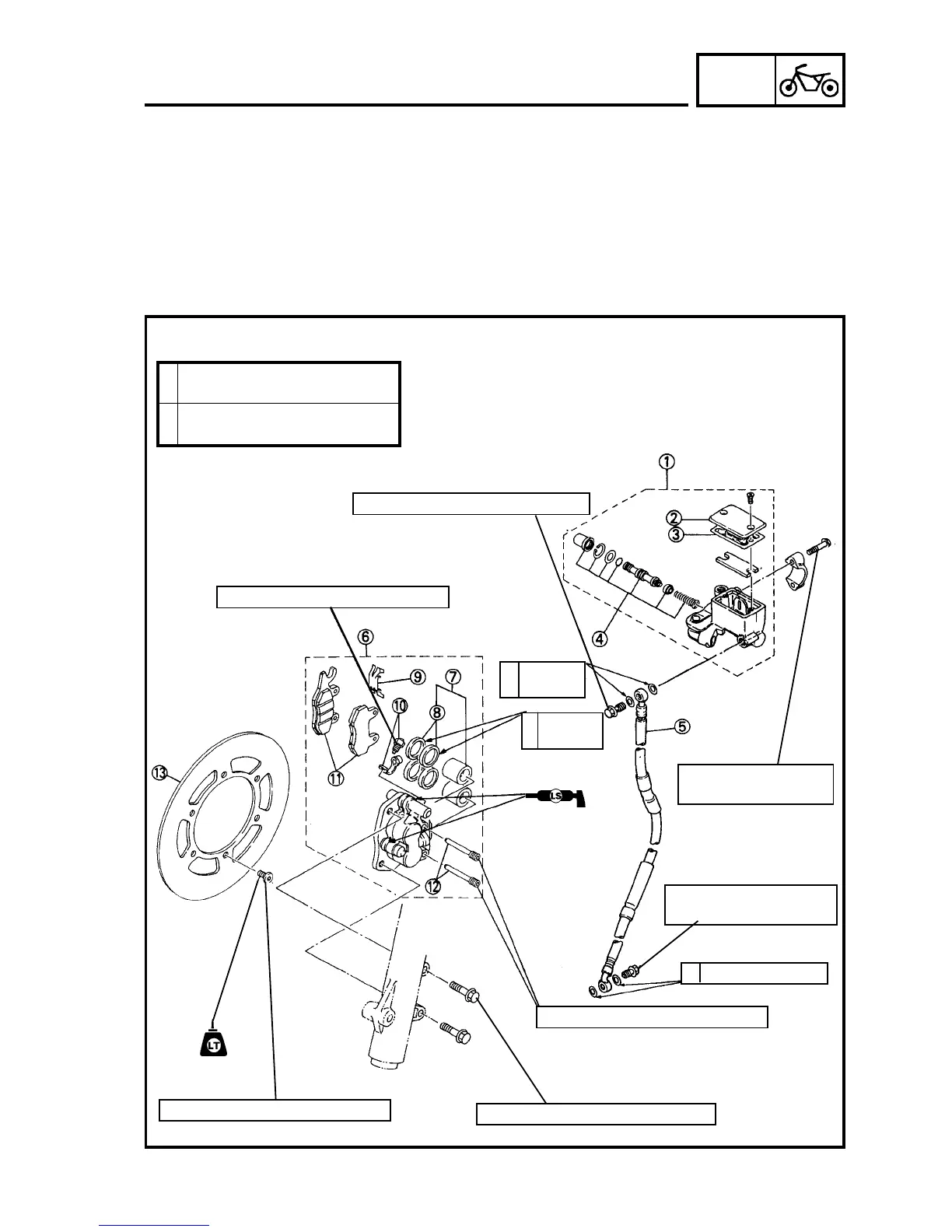

FRONT BRAKE
1 Master cylinder assembly
2 Master cylinder cover
3 Diaphragm
4 Master cylinder kit
5 Brake hose
6 Brake caliper assembly
7 Caliper piston
8 Retainer kit
9 Pad spring
0 Bleeding screw
A Brake pads
B Brake pad pin
C Brake disc
7 N.m
(0.7 kgf.m; 5.0 ft.lb)
27 N.m
(2.7 kgf.m; 19.5 ft.lb)
18 N.m (1.8 kgf.m; 13.0 ft.lb)
Pad wear limit:
0.8 mm
B
A
Brake fluid:
DOT # 4
40 N.m (4.0 Kgf.m ; 28.9 ft.lb)
C USE A NEW ONE
27 N.m (2.7 kgf.m; 19.5 ft.lb)
6 N.m (0.6 kgf.m; 4.3 ft.lb)
13 N.m (1.3 Kgf.m ; 9.4 ft.lb)
USE A
NEW ONE
C
C
USE A
NEW ONE

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
