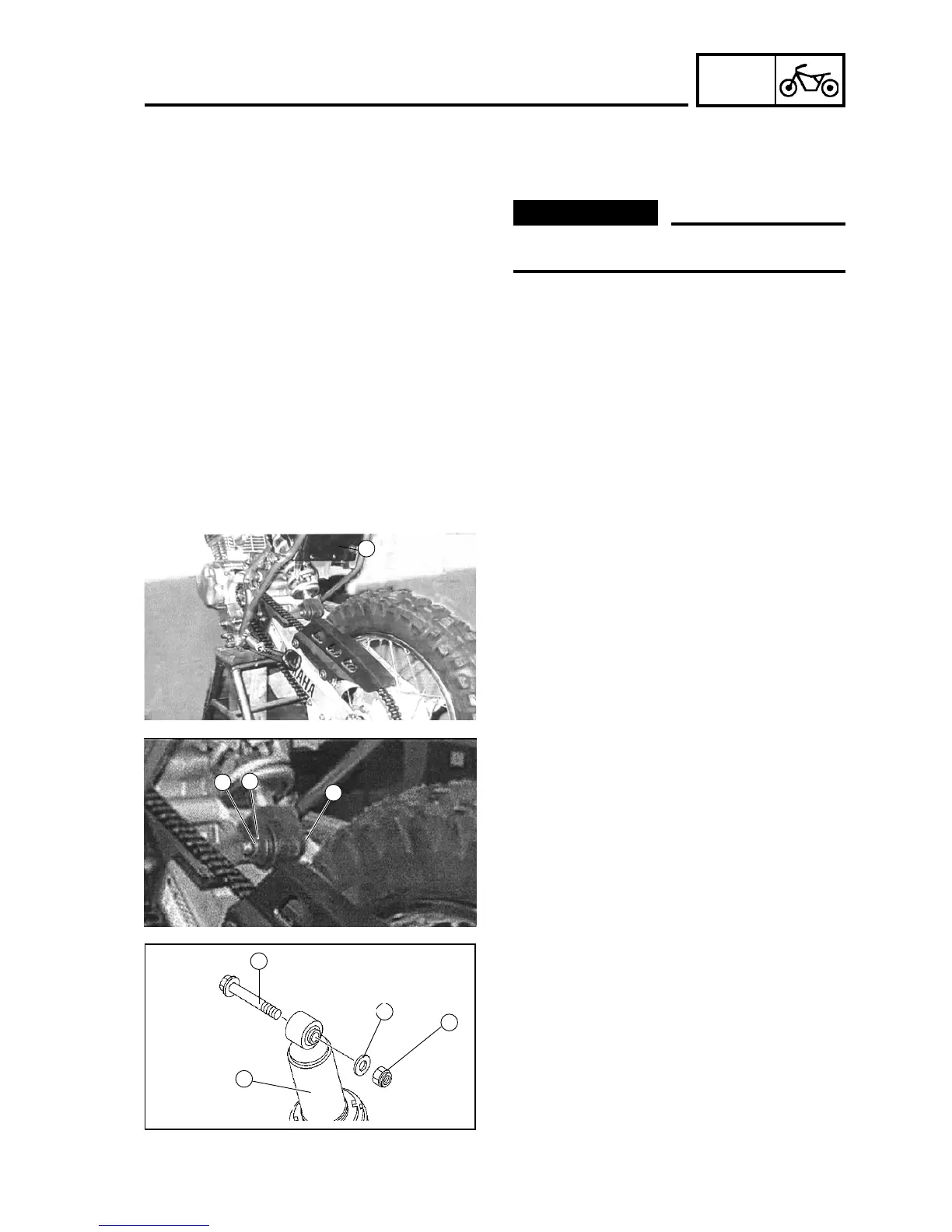

FRAME
REMOVAL
REAR SHOCK ABSORBER AND BALANCE
6-56
6. Remove:
• Upper nut 1
• Washer 2
• Upper screw 3
• Shock absorber 4
5. Remove:
• Lower nut 1
• Washer 2
• Lower screw 3
1. Place the motorcycle on a flat area.
2. Remove:
• LH side cover
• Seat
See Section "SEAT, FUEL TANK AND
COVERS," CHAPTER 3.
3. Lift the rear wheel placing a support under
the engine.
4. Remove:
• Air filter box 2
Support the motorcycle firmly preventing
it from falling.
VV
VV
V
WARNING
Shock Absorber
1
2
3
4
3
2
1
2

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
