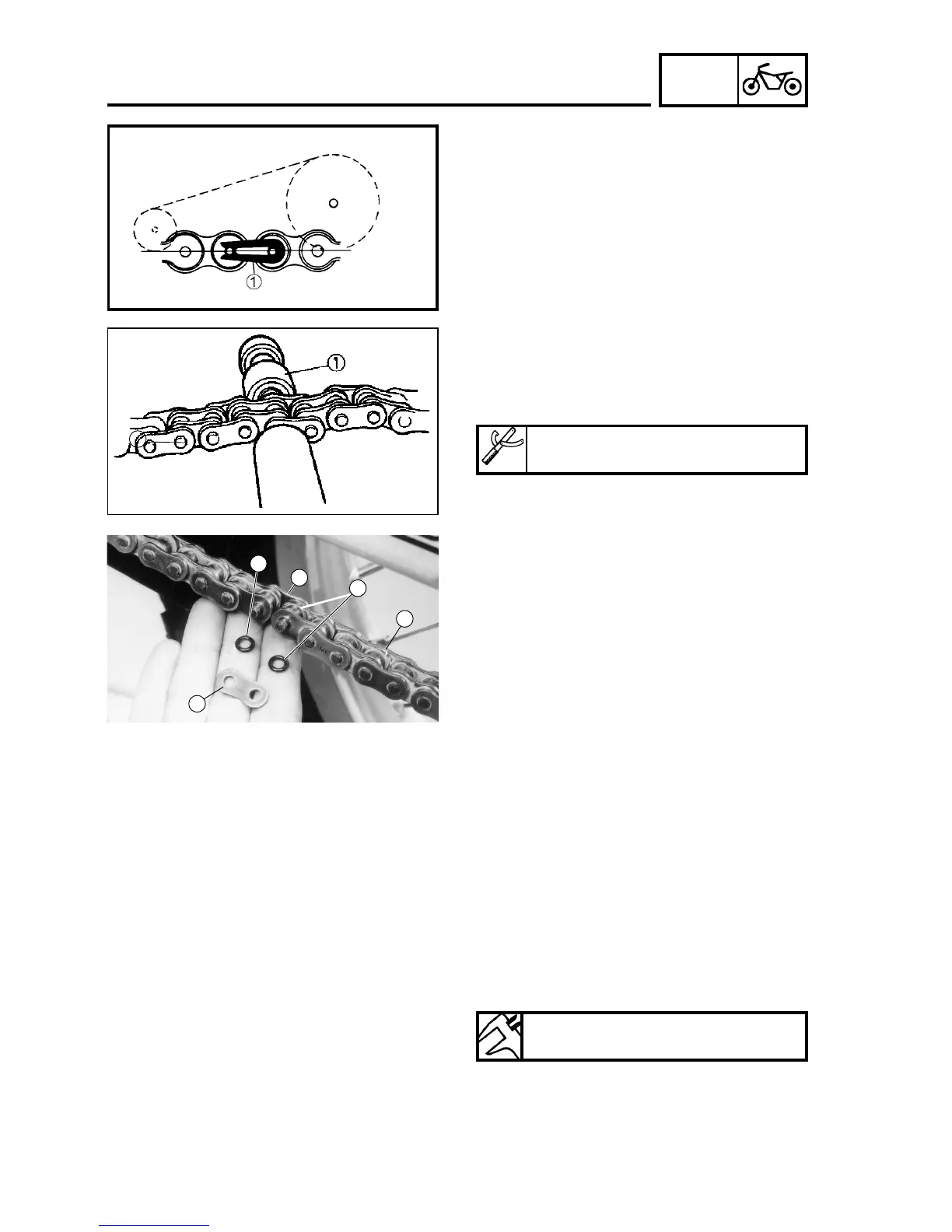

FRAME

5. Remove:

• Chain seam lock 1

6-65

TRANSMISSION RATIO

INSPECTION

1. Measure:

• 10 link length a

Out of specification = > Replace the

chain.

8. Remove:

• Rear wheel

7. Remove:

• Link plate 1

• O-ring 2

• Seam 3

• Transmission chain 4

6. Remove:

• Chain seam

Use the chain pin puller 1.

10 link length limit:

119.7 mm

Chain pin puller:

90890-01286

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
