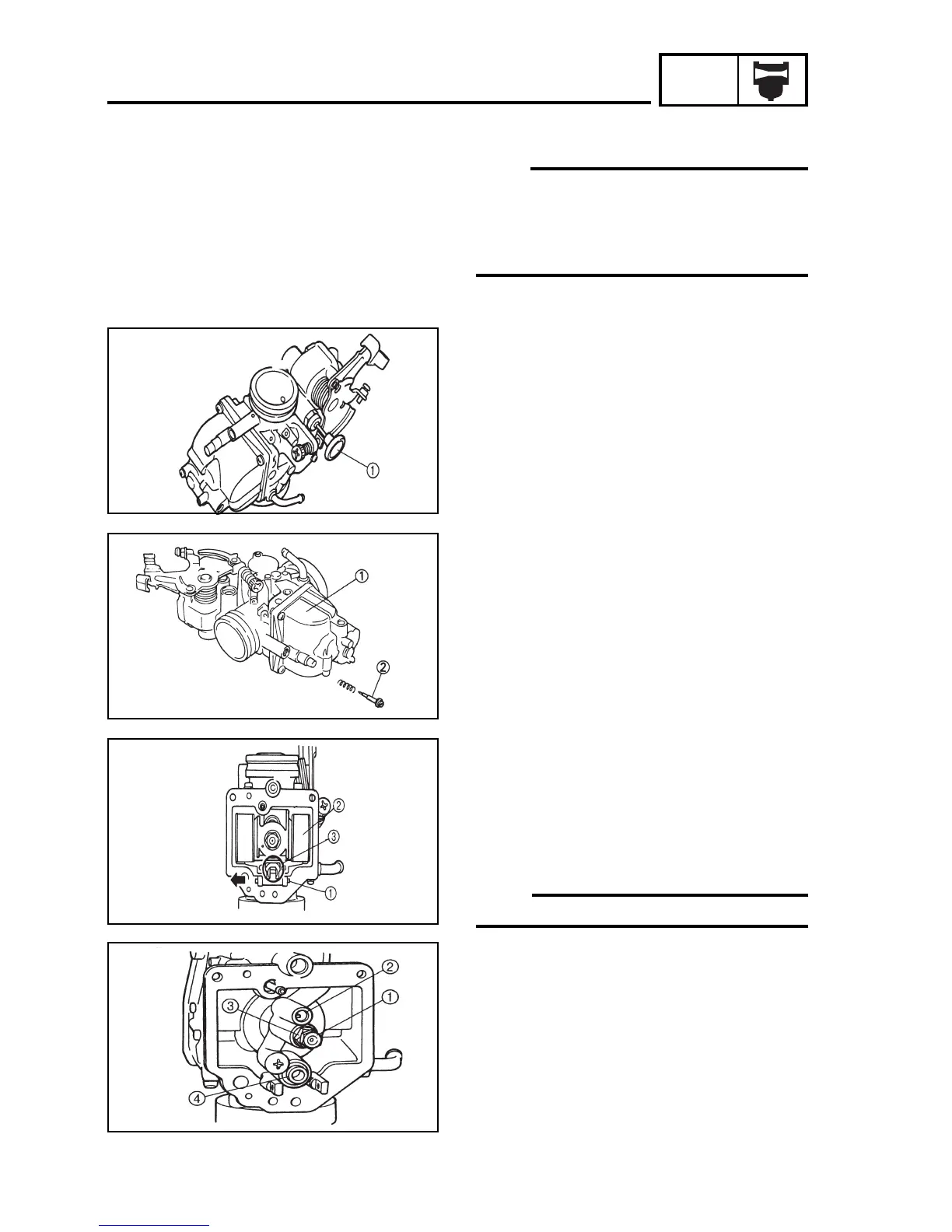

CARB

CARBURETOR

5-3

NOTE:

Remove the float pin in the arrow direction.

1. Disconnect:

• Choke assembly 1

2. Remove:

• Carburetor bowl 1

• Pilot screw 2

3. Remove:

• Float pin 1

• Float 2

• Needle valve assembly 3

NOTE:

The following parts can be cleaned

and checked with no need for dismounting:

• Pilot screw

• Choke

• Idle speed screw

DISMOUNTING

4. Remove:

• Main adjusting nozzle 1

• Pilot adjusting nozzle 2

• Diffuser 3

• Needle valve seat 4

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
