SPEC

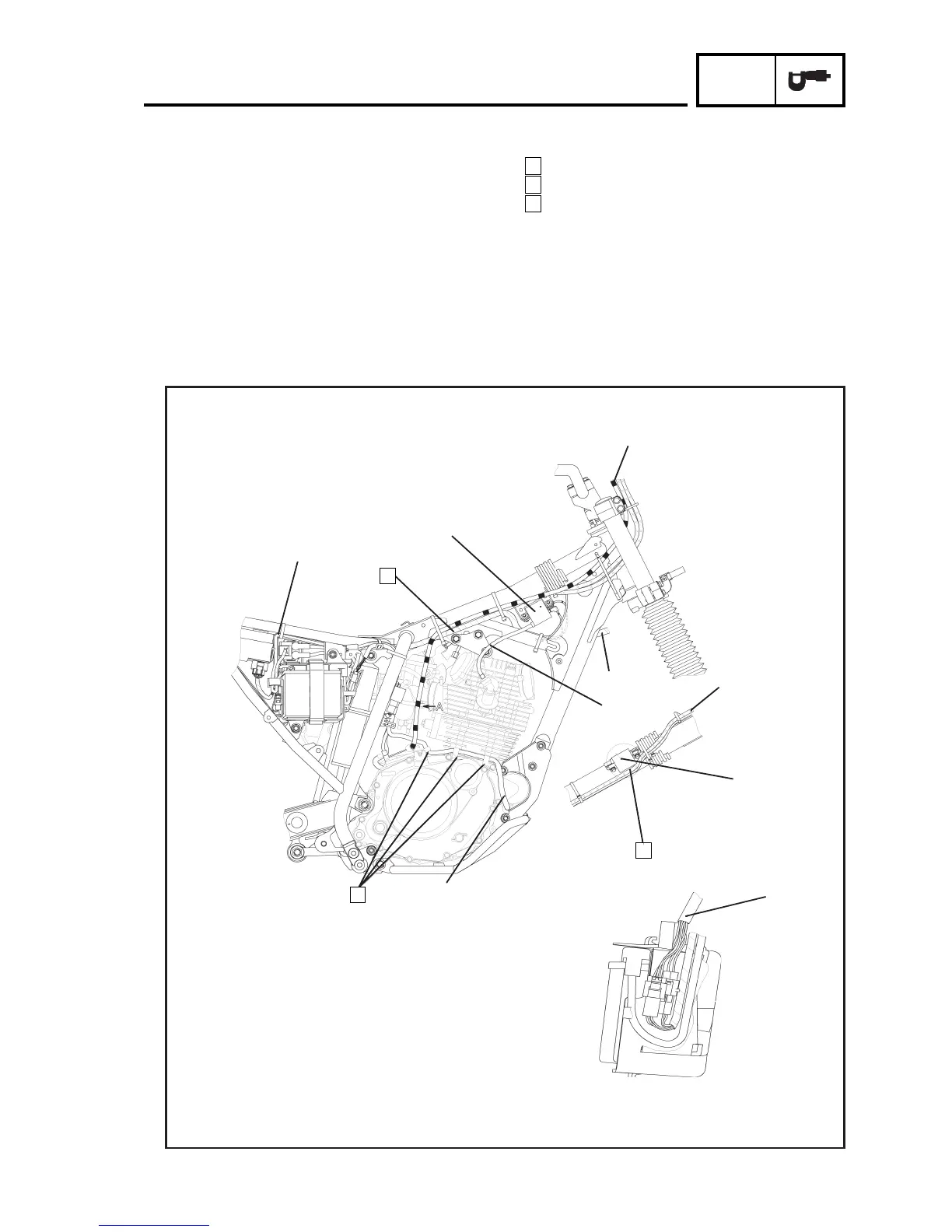

CABLE ROUTING

1 Clutch cable

2 Negative cable (ground)

3 Ignition coil

4 AC magnet harness

5 Starting motor cable

6 High voltage cable

7 Main harness

MOTORCYCLE (RIGHT SIDE)

A The harness should not touch the bolt

B Fasten the cables by using the clamps

C The accelerator cable should not touch

the ignition coil

2-24

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
