SPEC

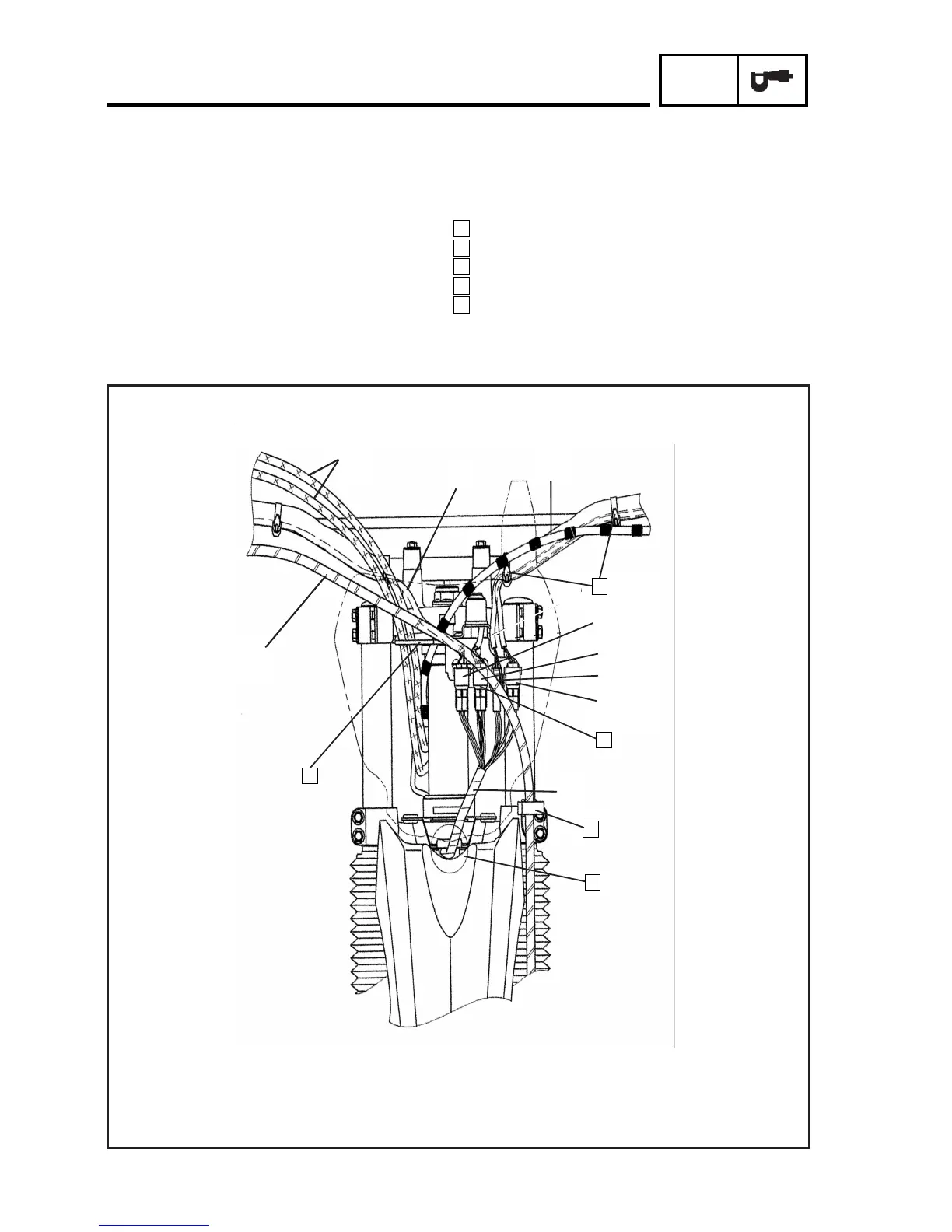

CABLE ROUTING
1 Accelerator cable
2 Brake hose
3 Starting switch harness
4 Clutch cable
5 Starting switch connector
6 Ignition switch connector
7 Clutch switch connector
8 Engine stop switch connector
9 Main harness
FRONT
A Route the cables into the slot
B Route the hose into the support
C Fasten the connectors in the support
D Route the harness through the opening
E Mount with tie wraps (both sides)
1
A
3
4
5
6
7
8
9
2
B
D
C
E
2-23
