ENGINE

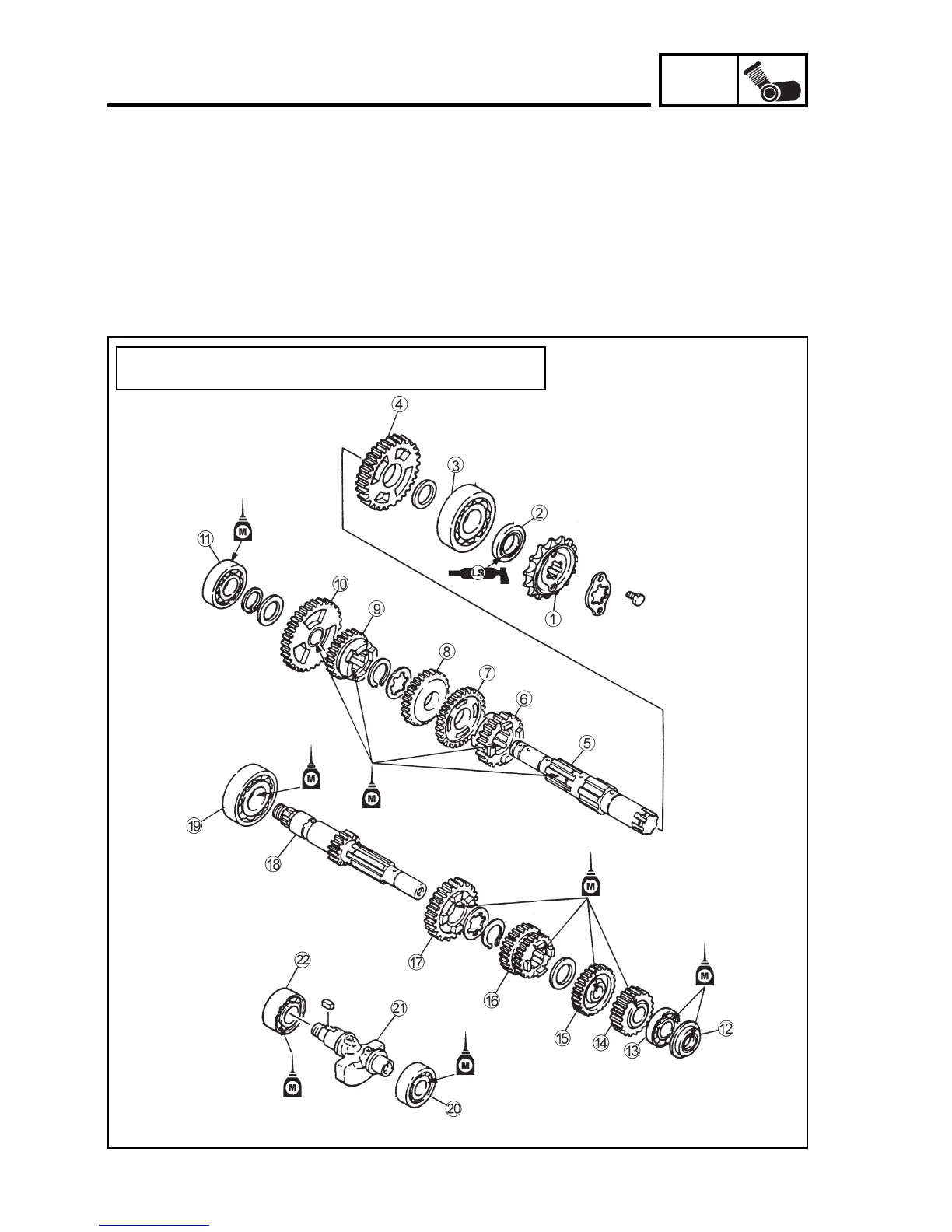

BALANCER AND TRANSMISSION

1 Pinion gear

2 Retainer

3 Roller bearing

4 2nd driven gear

5 Driven shaft

6 5th driven gear

7 3rd driven gear

8 4th driven gear

9 6th driven gear

0 1st driven gear

A Roller bearing

B Retainer

C Roller bearing

D 2nd driving gear

E 5th driving gear

F 3rd driving gear

G 4th driving gear

H Main shaft

I Roller bearing

J Roller bearing

K Balancer

L Roller bearing

ENGINE MOUNTING AND ADJUSTMENTS

4-54

Warping limit of the main and driven shafts:

0.08 mm

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
