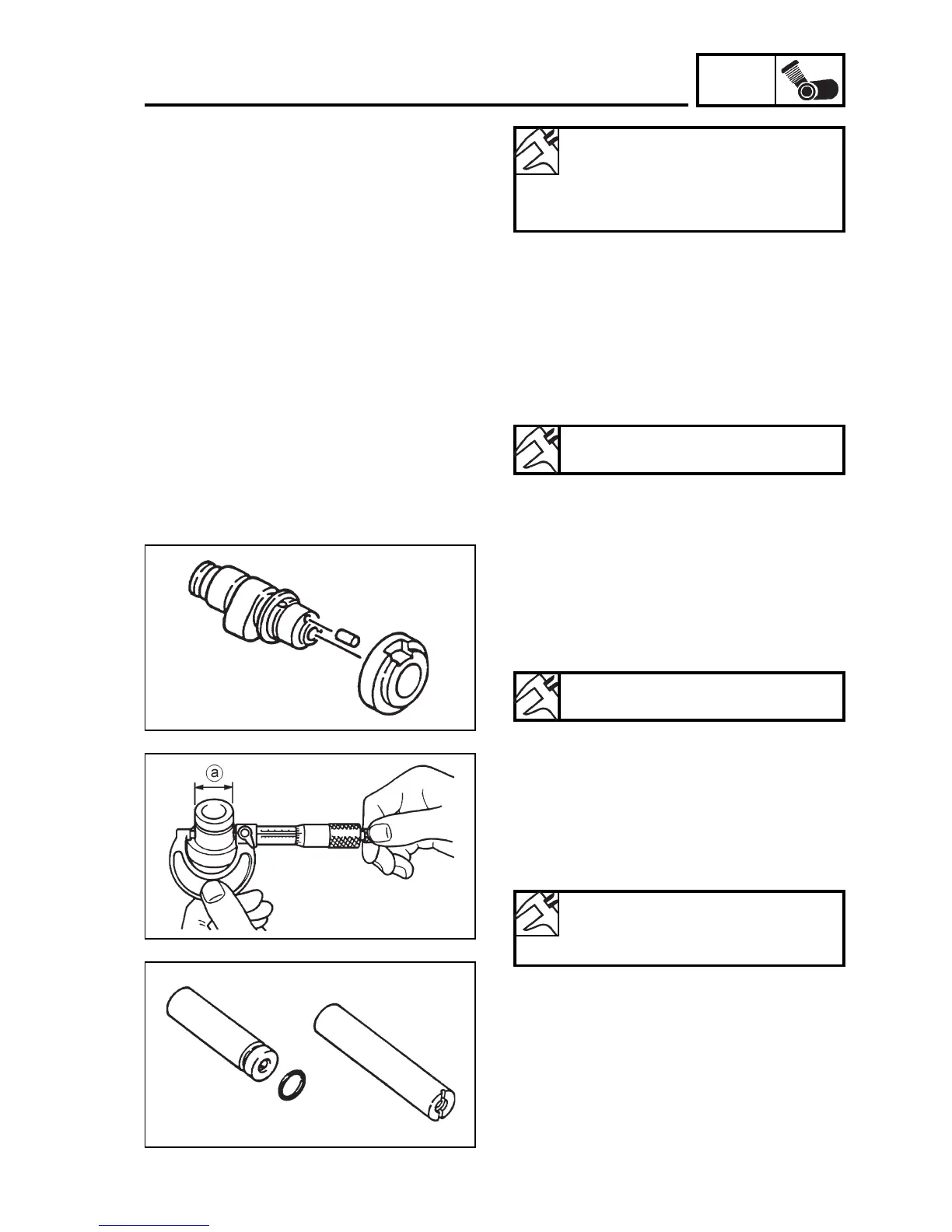

ENGINE
INSPECTION AND REPAIR
4-33
1. Check:
• Rocker shaft
Blue color / wear => Replace,
inspect the lubrication system.
ROCKER AND ROCKER SHAFT
5. Measure:
• Camshaft roller bearing diameter a
Out of specification => Replace camshaft.
As per specification => Replace bearing
(spacer).
4. Measure:
• Clearance between camshaft and
bearing
Out of specification => Measure the
camshaft bearing diameter.
3. Measure:
• Warping (Camshaft)
Out of specification => Replace.
Cam height
Exhaust:
a 30.15~30.25 mm
b 36.51~36.61 mm
Warping (Camshaft)
Less than 0.03 mm
Camshaft clearance – bearing:
0.020~0.061 mm
Camshaft bearing
diameter:
24.960~24.980 mm

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
