BATTERY INSPECTION/ FUSE INSPECTION
FUSE INSPECTION
1. Remove:
• Side cover (RH)
See Section “SEAT, FUEL TANK AND
COVERS.”
2. Remove:
• Main fuse 1
3-45
• Take special care to make sure the jaws
contact efficiently the battery terminals
and do not short. (A corroded jaw may
cause the battery terminal to overheat. A
weak jaw spring may generate sparks.)
• Before removing the jaws from the
battery terminals, turn off the charger
switch.

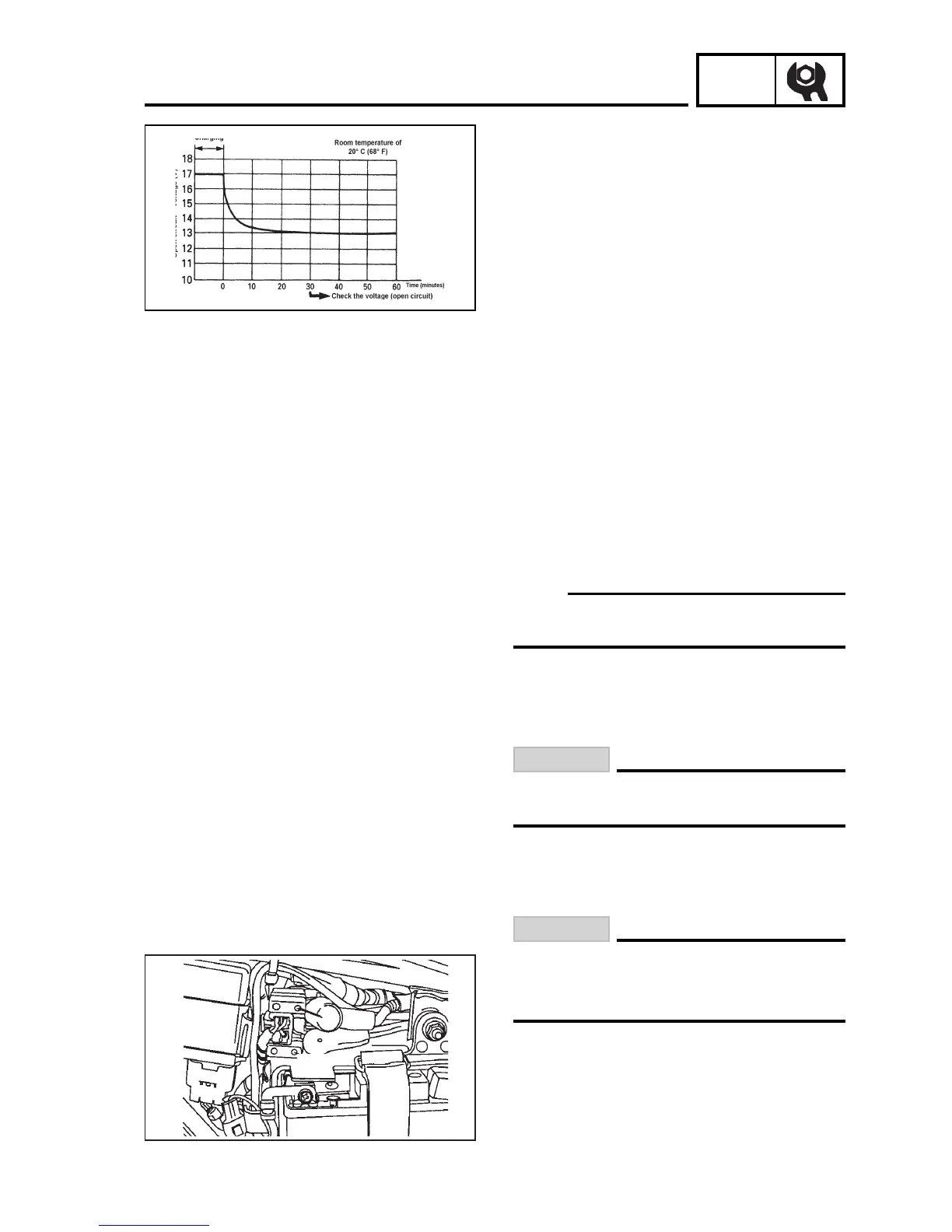

• The changes to the open voltage circuit
of the MF battery after charging are
shown in the figure. The open voltage
circuit will be stabilized 30 minutes after
the conclusion of the charging process.
Therefore, in order to check the conditions
of the battery, carry out the measurement
in the circuit after this period.
6. Check:
• Battery terminals
Dust/dirt => clean using a wire brush
Poor contact => fix
NOTE:
After cleaning, apply conventional grease
to the terminals.
7. Install:
• Battery
8. Connect:
• Battery terminals
Connect the positive terminal first, then,
the negative terminal.
CAUTION:
9. Install:
• Right side cover
The main switch should be at OFF position
while the fuse is checked or replaced.
Otherwise, a short-circuit may occur.
CAUTION:
1

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
