ENGINE
ENGINE MOUNTING AND ADJUSTMENTS
4-49
ENGINE MOUNTING AND
ADJUSTMENTS

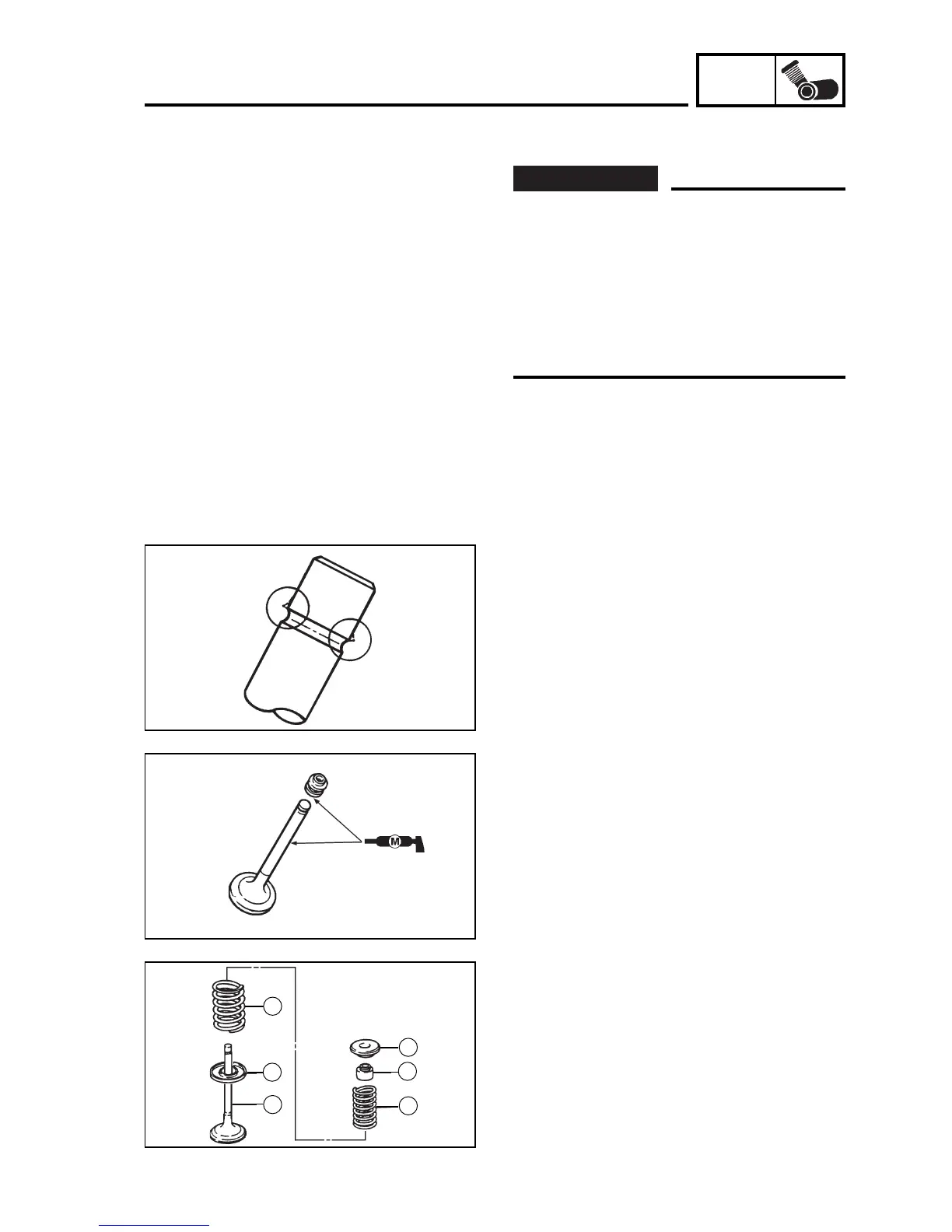

3. Install the components shown in the
figure in the following sequence:
• Retainer 2 on the valve guide
• Valve 6
• Lower spring seat 5
• Internal spring 3
• External spring 4
• Upper spring seat 1
2. Apply:
• Molybdenum disulfide-based oil
(to stem and retainer)
VALVES
1. Remove burrs:
• Valve stem head
The engine mounting requires the
replacement of the following parts with new
ones:
• O-ring
• Gaskets
• Retainer
• Copper washers
• Lock washers
• Locks
VV
VV
V
WARNING
1
2
3
4
5
6

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
