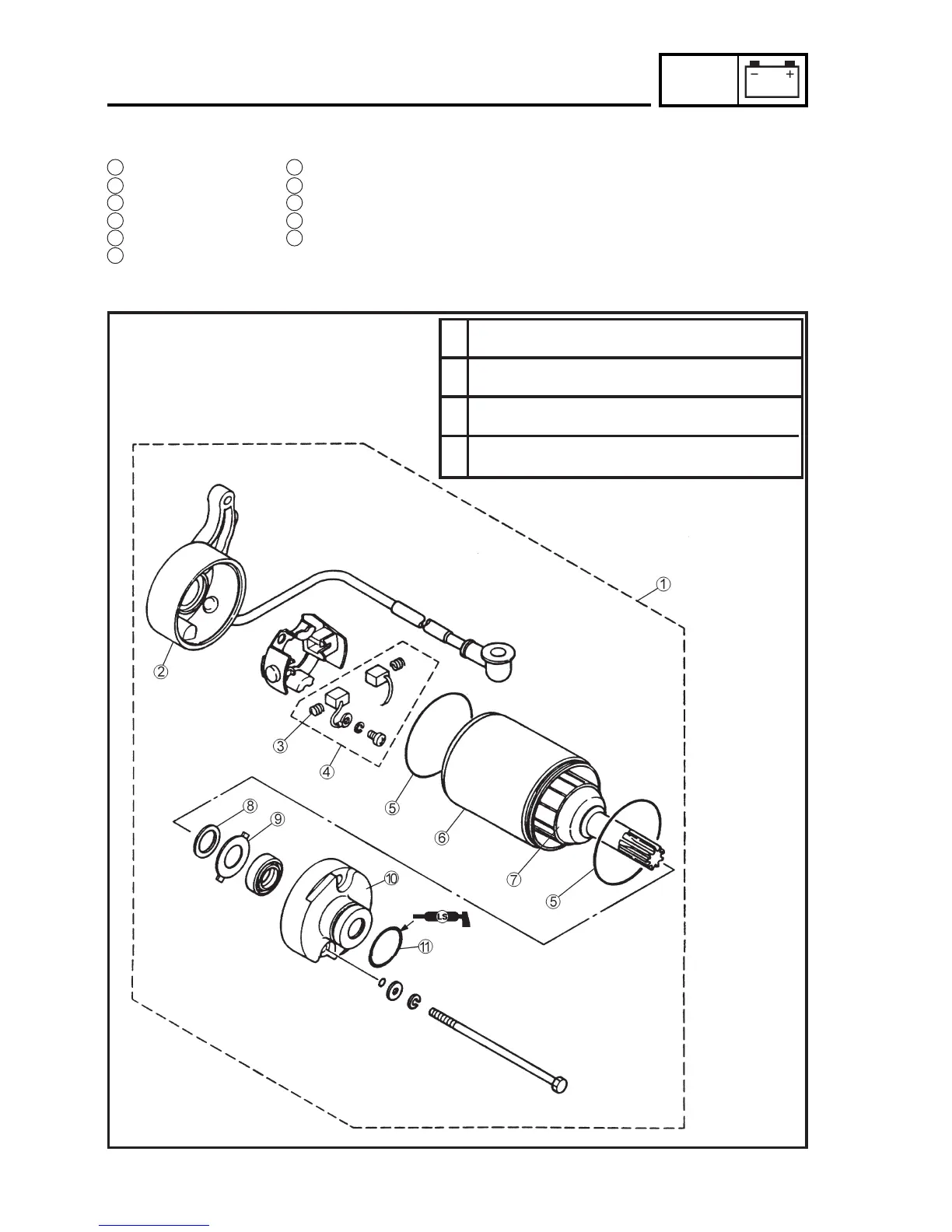

ELECTRIC STARTING SYSTEM
STARTER MOTOR
Starter motor
Rear support
Spring
Brush assembly
O-ring
Stator assembly
1
2
3
4
5
6
Rotor assembly
Shim
Lock washer
Front support
O-ring
7
8
9
10
11
Minimum brush length limit
3.5 mm
Switch wear limit
21.0 mm
Mica depth
1.5 mm
Rotor coil resistance
0.017~0.021 at 20° C
Ω
A
B
C
D

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
