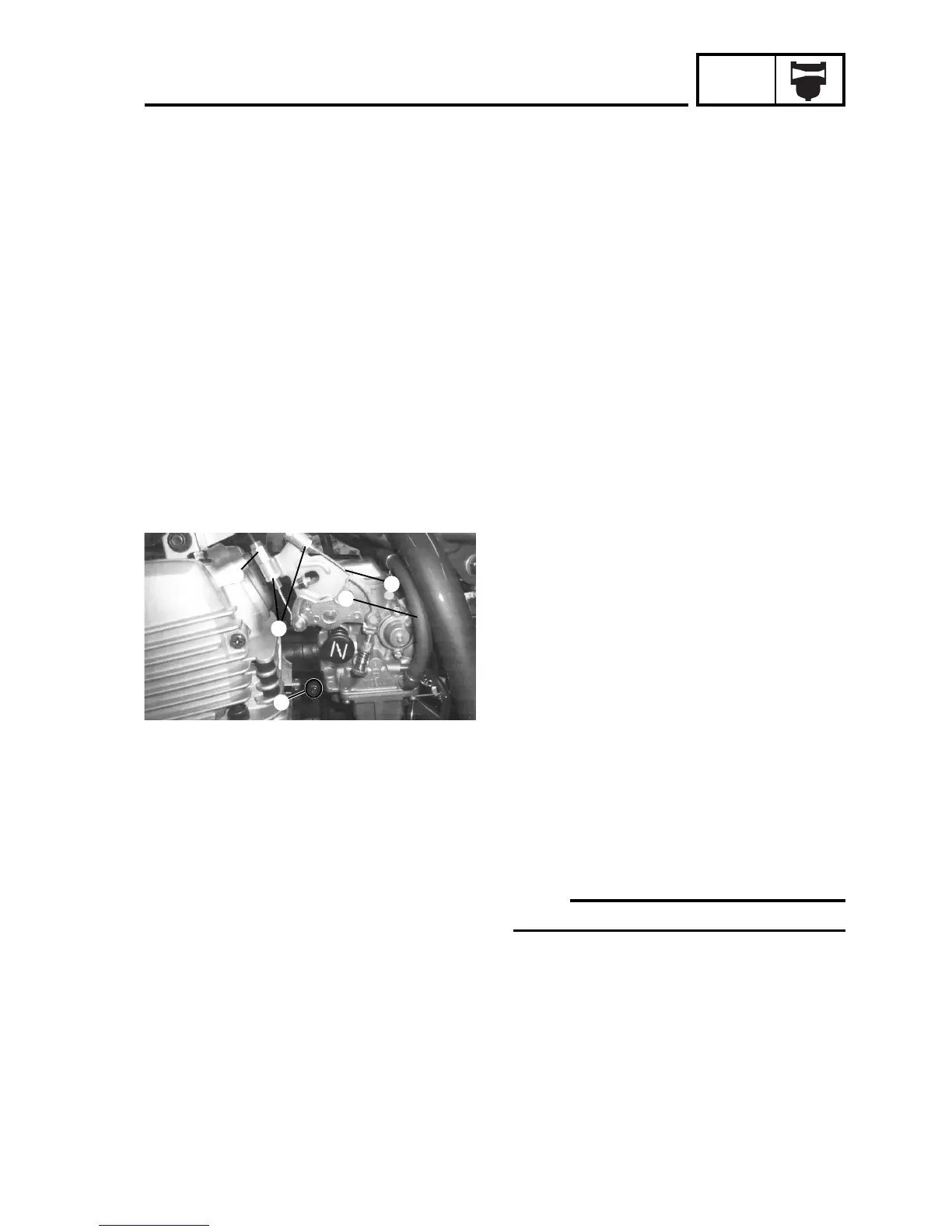

CARB

CARBURETOR

5-2

1. Drain:

• Fuel (bowl)

See Section “ENGINE REMOVAL,”

CHAPTER 4.

2. Loosen:

• Lock-nut 1 (throttle cable)

3. Disconnect:

• Throttle main cable 2

• Throttle return cable 3

• Breather hose

• Fuel hose 4

• Drain hose

4. Loosen:

• Connection bolts 5

5. Remove:

• Carburetor

NOTE:

Move the carburetor tie wrap back.

REMOVAL

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
