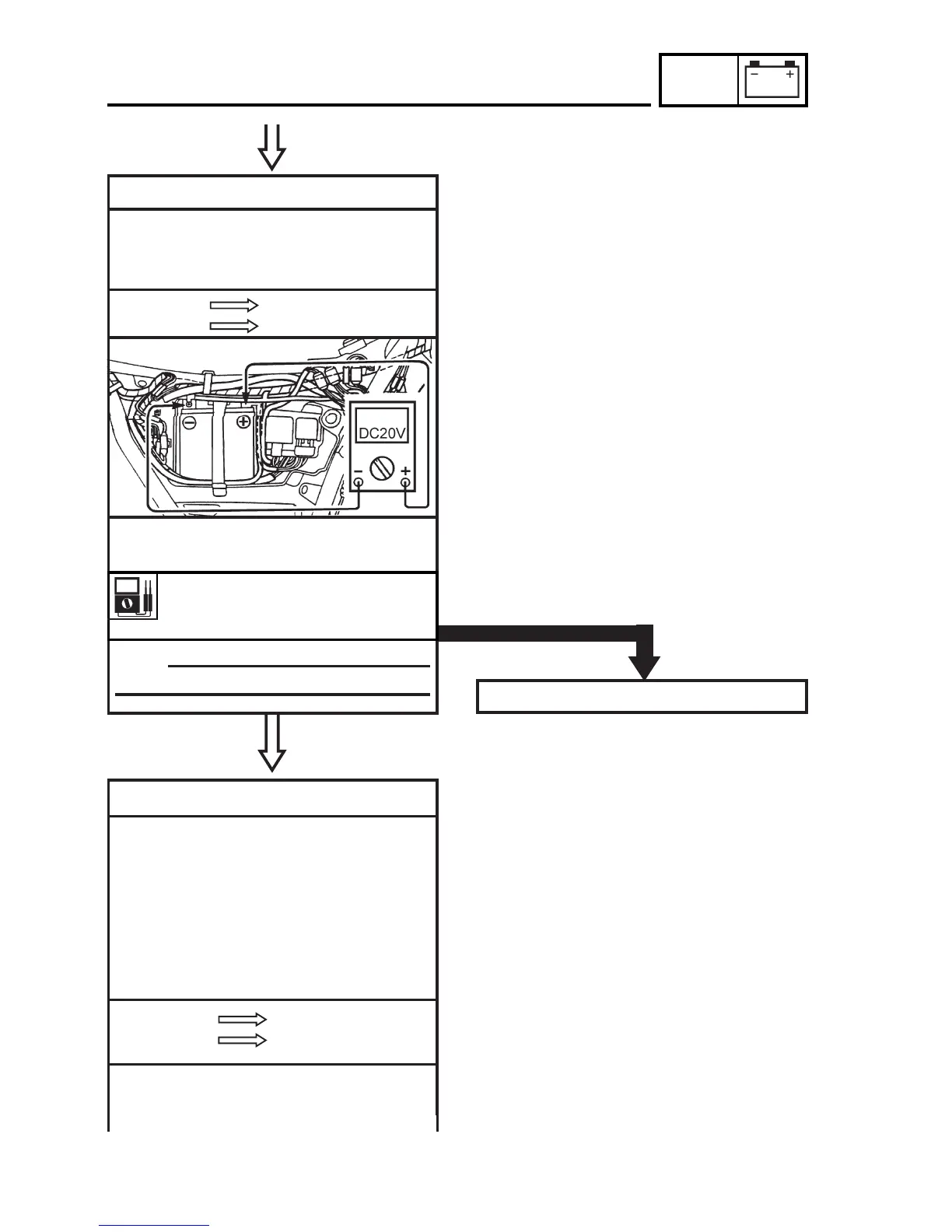

CHARGING SYSTEM
3. Charging voltage
• Start the engine and speed up to 5,000
rpm.
• Check the charging voltage.
OUT OF
SPECIFICATIONS
Charging system at normal conditions.
ACCORDING TO
SPECIFICATIONS
• Connect the inductive tachometer to
the spark plug cable.
• Connect the multimeter (DC20V) to the
battery.
Terminal (+) Battery terminal (+)
Terminal ( - ) Battery terminal (-)
NOTE:
Use a fully charged battery.
Charging voltage:
14.0V at 5,000 rpm
4. Charging coil resistance.
Terminal (+) white wire (W)
Terminal ( - ) ground (B)
Ω
• Disconnect the charging coil connector
from the harness.
• Connect the multimeter ( x1) to the
charging coil.
• Measure the charging coil resistance.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
