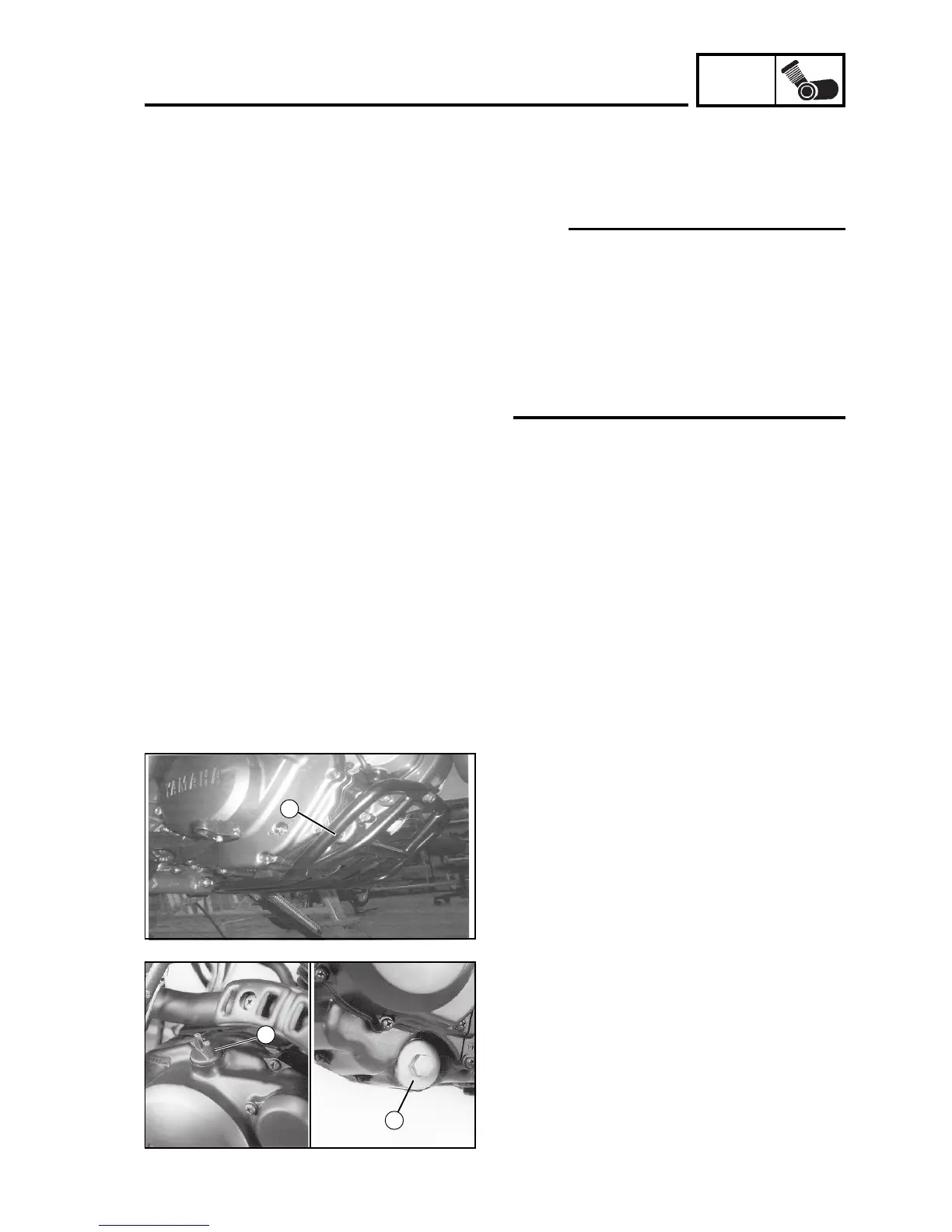

ENGINE

ENGINE REMOVAL

4-1

ENGINE INSPECTION

NOTE:

It is not necessary to remove the engine

in order to remove the following

components:

• Head

• Cylinder

• Piston

• Clutch

• Oil pump

• Magnet rotor

ENGINE REMOVAL

1. Remove:

• Side covers

• Seat

• Fuel tank

SEAT, FUEL TANK AND COVERS

1. Remove:

• Crankcase guard 1

CRANKCASE GUARD

1. Remove:

• Oil filling screw 1

• Drain plug 2

See Section “ENGINE OIL

CHANGE”, CHAPTER 3.

ENGINE OIL

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
