Yamaha ttr230 User Manual

FRAME
REAR SHOCK ABSORBER AND BALANCE
6-55
Use goggles in order to protect the eyes
against the gas and drilling chips.

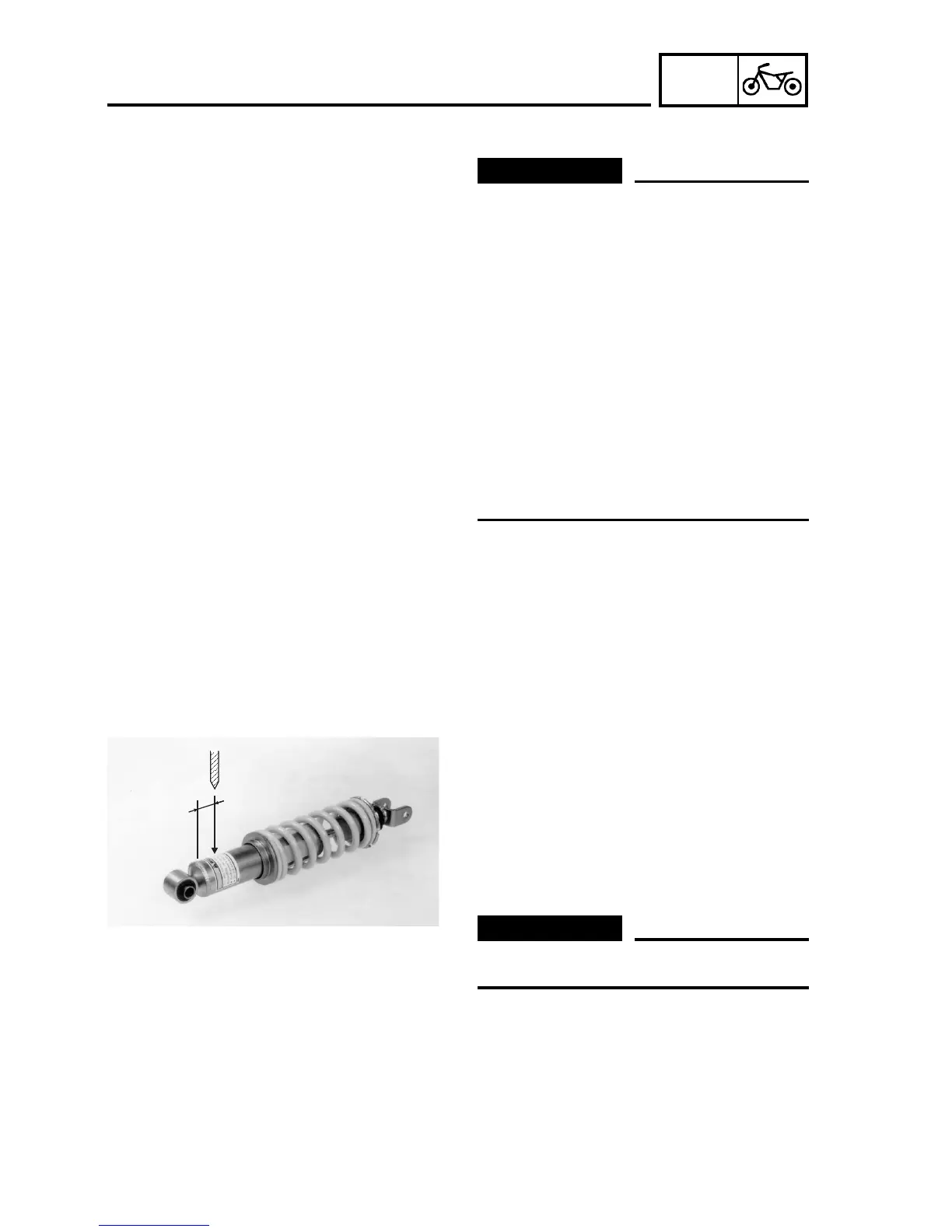

Shock absorber discarding steps:
• Before discarding the shock absorber,
exhaust the nitrogen. Drill a 2 ~ 3 mm
hole on the gas chamber at 15 ~20 mm
from the gas chamber end.
NOTES ON DISCARDING
•This shock absorber contains nitrogen gas
at high pressure. Read and understand the
following information before handling. The
manufacturer assumes no liability for injuri-
es or damage resulting from mishandling.
•Do not try to pierce or open the shock
absorber assembly.
•Do not subject the shock absorber to flames
or other high temperature sources, since this
may result in explosion of the unit due to
excessive gas pressure.
•Do not deform or damage the cylinder in
any way. Damage to the cylinder will result
in poor performance of the shock absorber.
•When discarding the shock absorber, ob-
serve the following instructions in Section
"NOTES ON DISCARDING."
VV
VV
V
WARNING
NOTES ON HANDLING
*************************************
VV
VV
V
WARNING
*************************************

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
