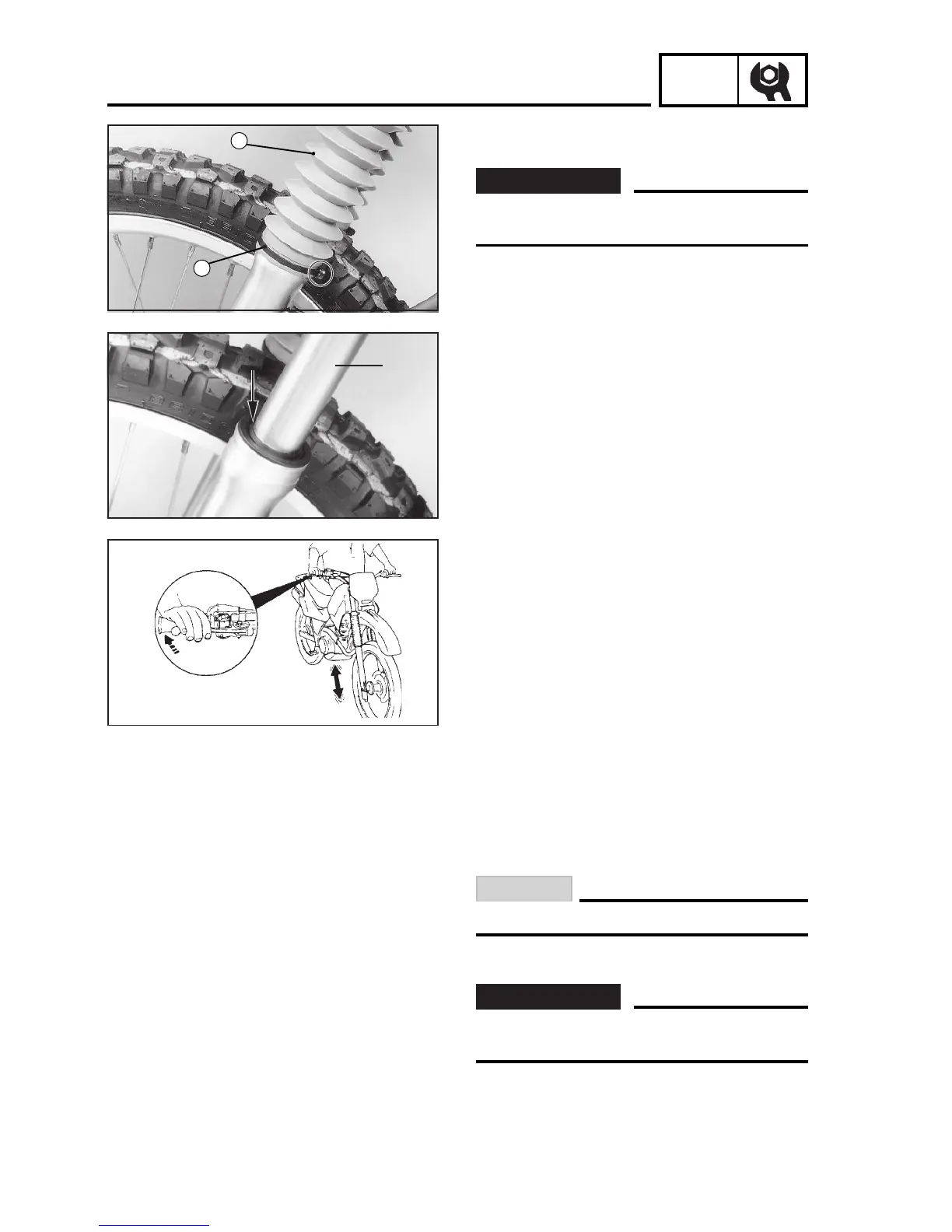

FRONT SUSPENSION INSPECTION
1. Place the motorcycle on a flat area.
2. Remove:
• Clamp 1
• Dust cover 2
3. Check:
• Internal tube 1
Scratches/damage => Replace.
• Oil retainers
Excessive leakage => Replace.
4. Hold the motorcycle upright and actuate
the front brake.
5. Check:
• Operation
Force the suspension downwards
repeatedly.
Irregular operation => Repair.
See Section “FRONTSUSPENSION” CHAPTER
6.
6. Install:
• Dust cover
• Clamps
See Section “FRONT SUSPENSION
INSTALLATION,” CHAPTER 6.
REAR SHOCK ABSORBER ADJUSTMENT
1. Adjust:
• Spring preload
• Shock absorbing
3-36
FRONT SUSPENSION INSPECTION
The motorcycle should be firmly supported
in order to prevent falls.
V
WARNING
CAUTION:
Always use new clamps.
The motorcycle should be firmly supported
in order to prevent falls.
V
WARNING
2
1
1
