Yamaha ttr230 User Manual

INSP
ADJUS
• Tighten the lock-nut.

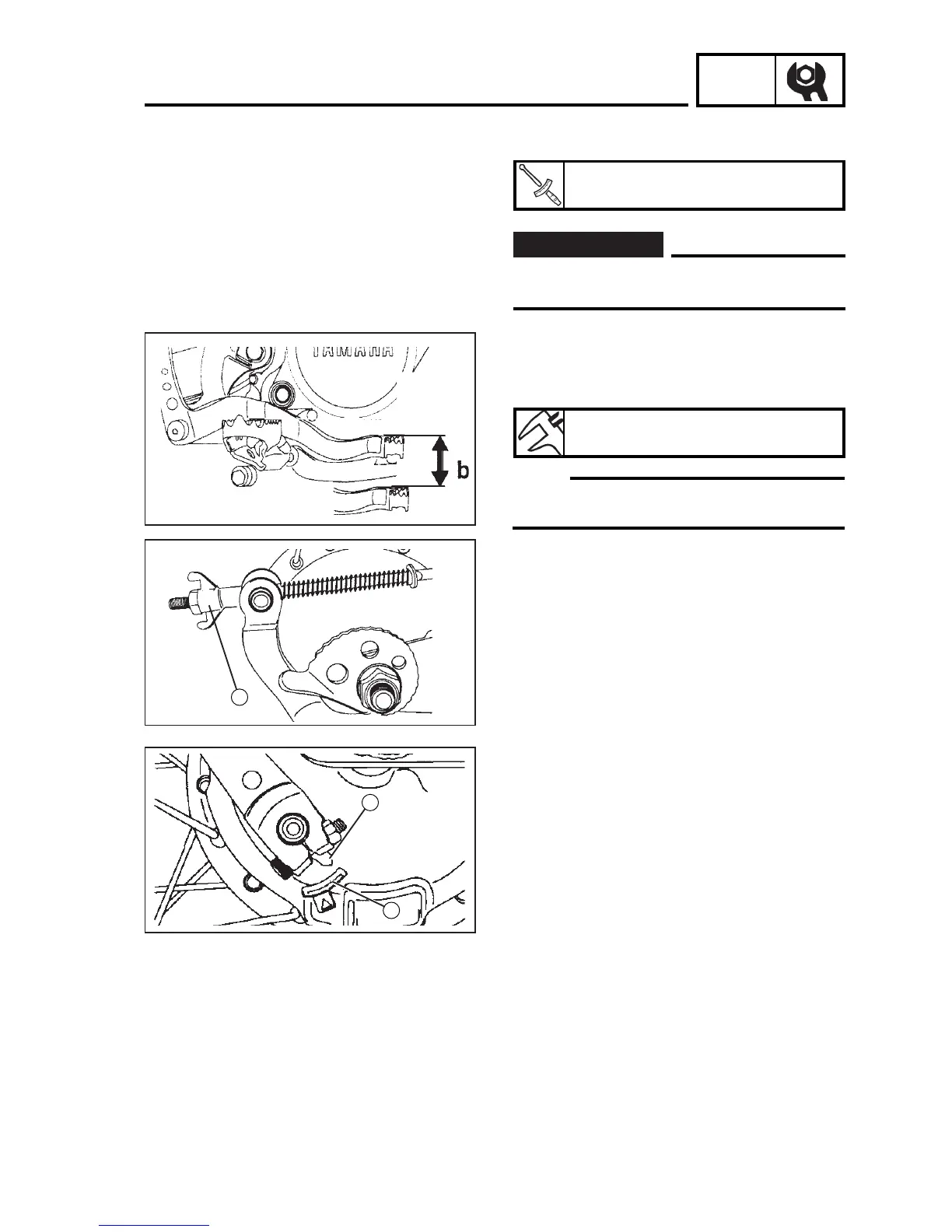

BRAKE LINING CHECK
1. Press the brake pedal
2. Check:
• Wear indicator 1
Indicator at the wear limit mark 2=>
Replace brake linings. See Section
“REAR WHEEL” CHAPTER 6.
BRAKE LINING CHECK
See Section “BRAKE SHOE CHECK.”
Brake pedal free play adjustment steps:
• Turn the adjuster 1 until the free play is
within the specification.
4. Adjust:
• Brake pedal free play
3. Check:
• Brake pedal free play b
Out of specification => Adjust.
************************************
************************************
*************************************
3-31
Lock-nut:
7N.m (0.7 Kg.m ; 5.1 ft.lb)
After adjusting the height, adjust the free
play of the brake pedal.
V
WARNING
NOTE:
Before adjusting the free play, adjust the
height of the brake pedal.
Brake pedal height:
20 ~ 30 mm (0.8 ~1.2 in)
1
1
2

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
