ENGINE
INSPECTION AND REPAIR
4-35

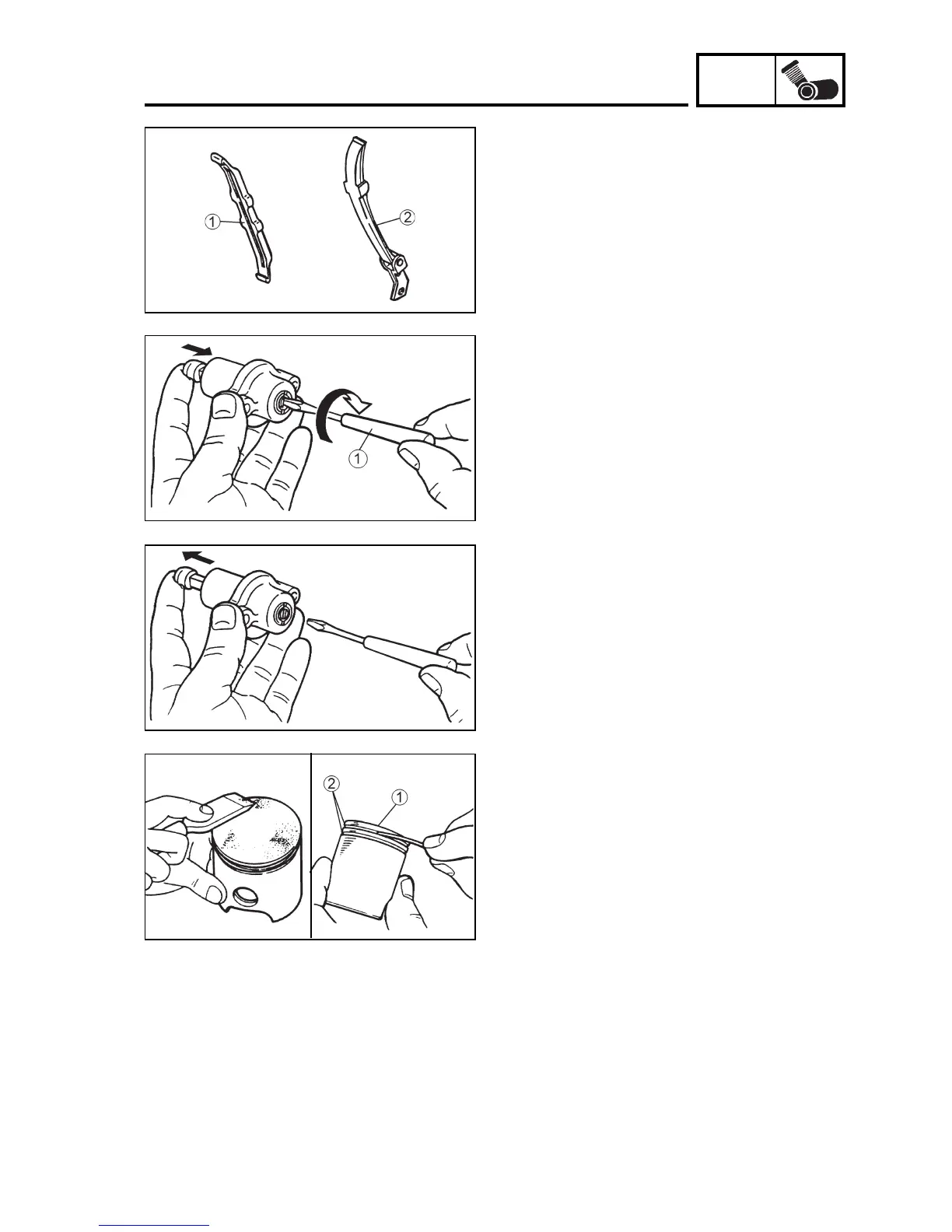

1. Remove:
• Carbon fouling
(from piston head 1 and ring grooves
2)
2. Check:
• Piston side
Wear/scratches/damages => Replace.
CYLINDER AND PISTON
************************************
************************************
3. Check:
• Chain guide 1 (Exhaust side)
• Chain guide 2 (Intake side)
Wear/damages => Replace.
4. Check:
• Camshaft chain tensioner clearance
Checking steps:
• Use a screwdriver 1, turning clockwise,
to pull and lock the tensioner system.
• Press the stem and verify the smoothness
of the movement.
• If the test result is unsatisfactory, replace
the assembly.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
