Yamaha F200B - Electrical Component; Port; Electrical System

5-1
ELEC
Electrical system

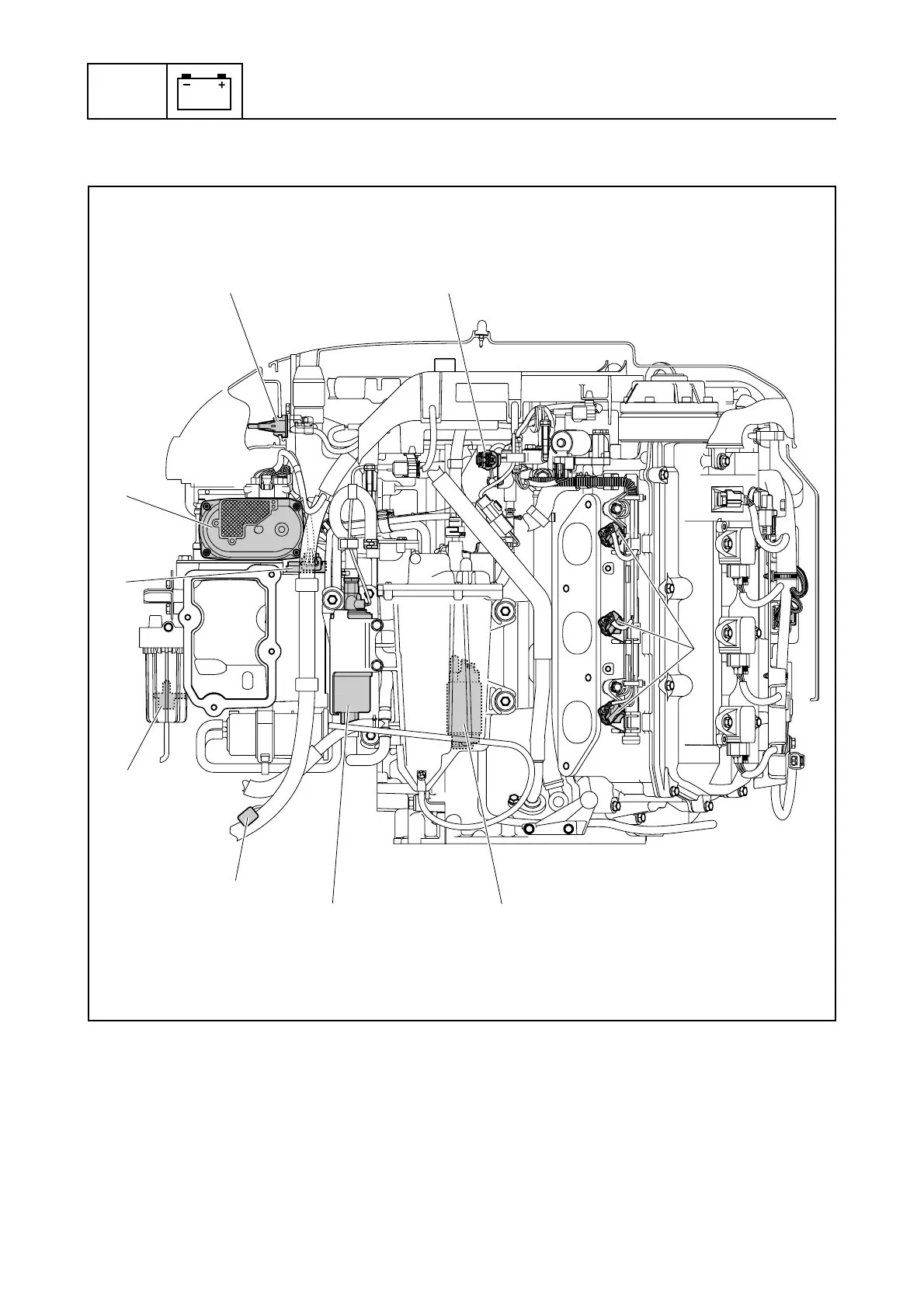

Electrical component
Port
1 Air temperature sensor
2 YDIS coupler
3 Fuel injector
4 High-pressure fuel pump
5 Low-pressure fuel pump
6 Condenser (connect to the air pressure
sensor)
7 Water detection switch (in fuel cup
assembly)
8 Air pressure sensor
9 ETV
3
9
5
6
7
8
1
4
2
