Yamaha F200B Service Manual

6-43

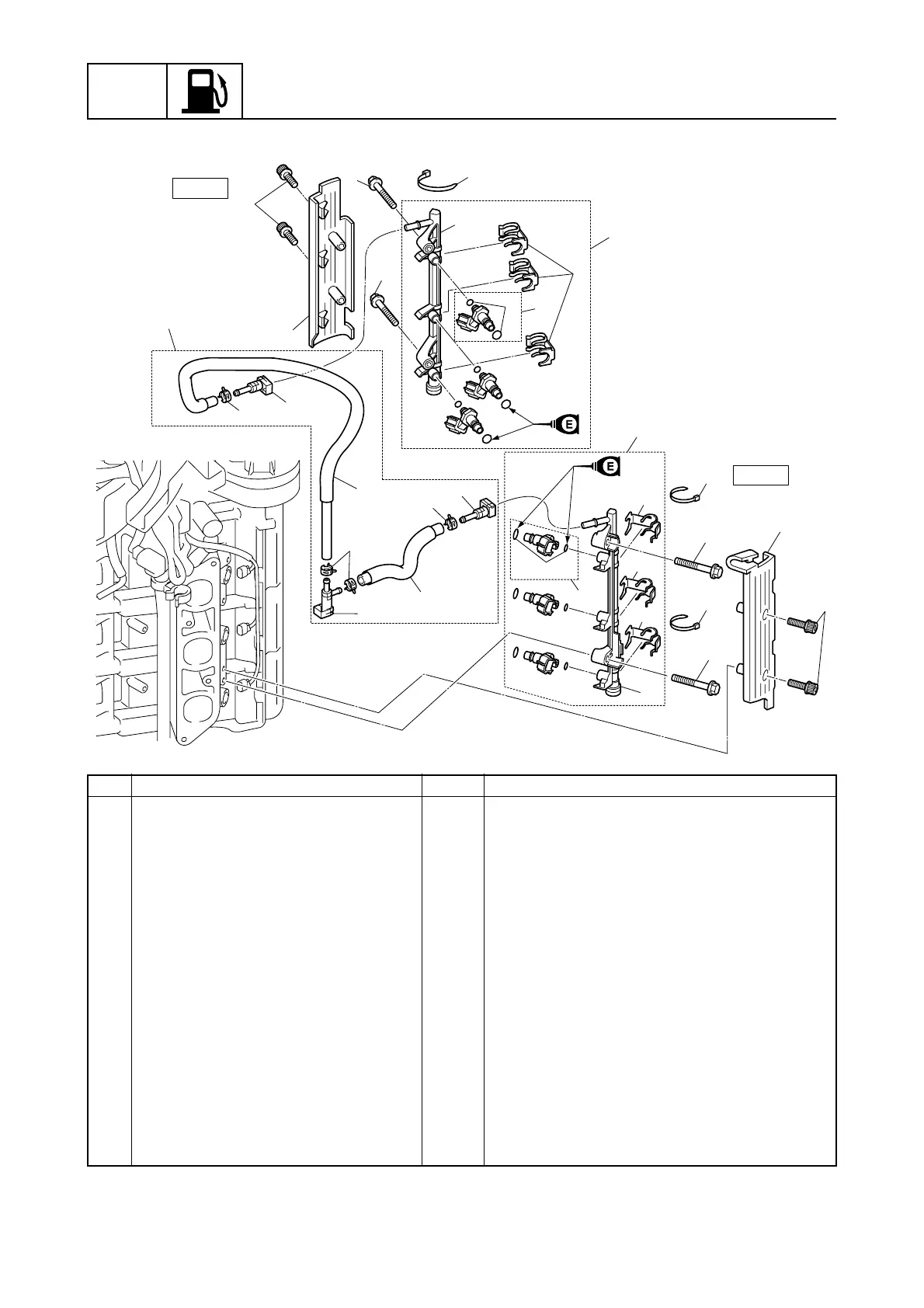

FUEL
Fuel system
Fuel injector
No. Part name Q’ty Remarks
1Bolt 4 M6 × 20 mm
2 Cover (STBD) 1
3Bolt 4 M6 × 35 mm
4 Plastic tie 3
5 Fuel rail assembly (STBD) 1
6 Fuel rail (STBD) 1
7 Fuel injector 6
8O-ring set 6 39
3939
39
9 Holder 6
10 Fuel rail assembly (PORT) 1
11 Fuel rail (PORT) 1
12 Cover (PORT) 1
13 Quick connector 2
14 Clamp 4
15 Hose 1
16 Quick connector 1
17 Hose 1
1
1
2
12
4
10
3
3
3
9
9
9
3
11
4
4
7
16
14
14
8
5
9
7
6
PORT
STBD
8
17
18
13
14
15
13
