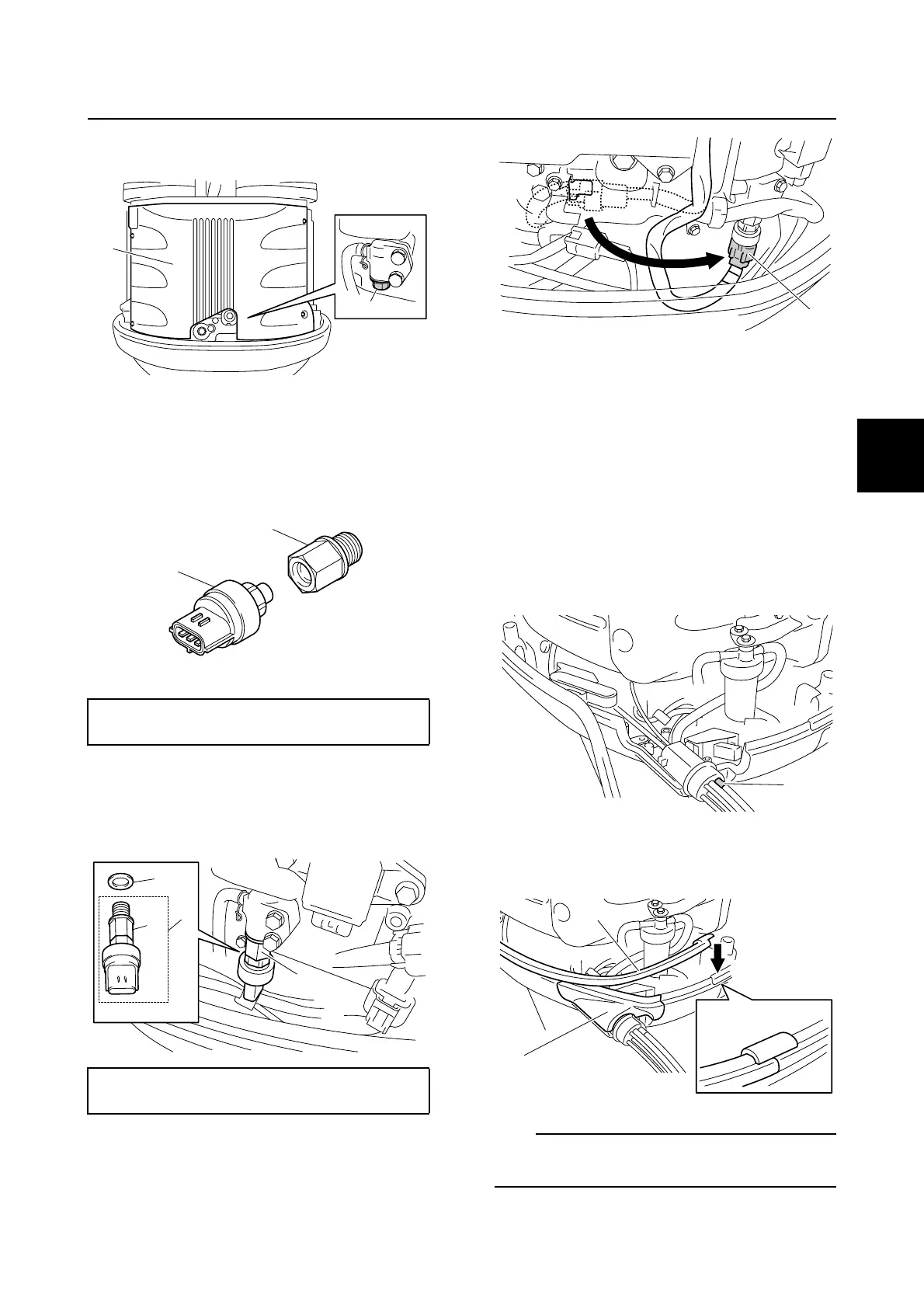

3-14
3
1. Remove the engine ECM cover 1, and
then remove the plug 2.
2. Install the water pressure sensor 3 to
the water pressure sensor adapter 4,
and then tighten the water pressure sen-
sor 3 to the specified torque.
3. Install a new gasket 5 and the water
pressure sensor assembly a, and then
tighten the water pressure sensor
adapter 4 to the specified torque.
4. Remove the cap, and then connect the
water pressure sensor coupler b.
5. Install the engine ECM cover.
Installing the rigging grommet
1. Route each harness through the proper
hole in the rigging grommet. See “Rig-
ging grommet description” (3-9) for the
detailed description of the rigging grom-
met.
2. Align the white tape a on the battery
cable with the outer end of the rigging
grommet.
3. Install the retaining plate 1.
4. Install the rubber seal 2.
TIP:
Make sure that the rubber seal is installed
securely.
Water pressure sensor 3:
18 N·m (1.8 kgf·m, 13.3 ft·lb)
Water pressure sensor adapter 4:
23 N·m (2.3 kgf·m, 17.0 ft·lb)
1
2
3
4
5
4
a
4
W
b
a
1
2
Rigging grommet mounting
