6-45
FUEL
Fuel system

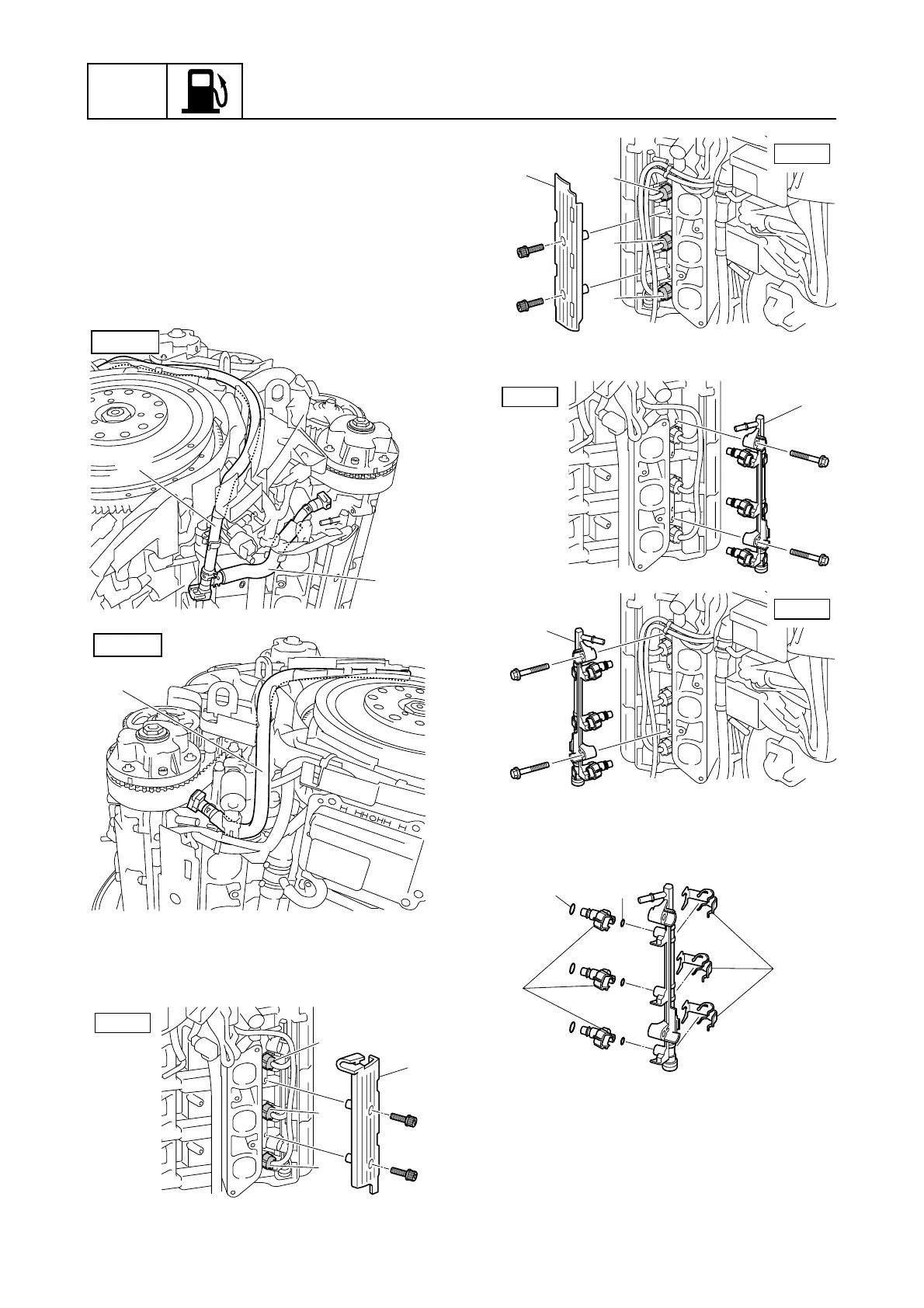

Removing the fuel injector
Cover the fuel components using a rag to
prevent fuel from spilling out.
1. Disconnect the quick connectors. See
steps 3–5 in “Disconnecting the quick
connector” (6-7).
2. Remove the fuel hoses 1 and 2.
3. Remove the fuel rail covers 3 and 4,
and then disconnect the fuel injector cou-
plers a.
4. Remove the fuel rails 5 and 6.
5. Remove the holders 7, and then remove
the fuel injectors b and O-rings c and
d.
Checking the fuel rail
1. Check the fuel rails. Replace if cracked
or deformed.
2
1
PORT
2
STBD
3
a
a
a
PORT
4
a
a
a
STBD
PORT
5
STBD
6
7
b
cd
