Yamaha F200B Service Manual

7-29
POWR
Power unit

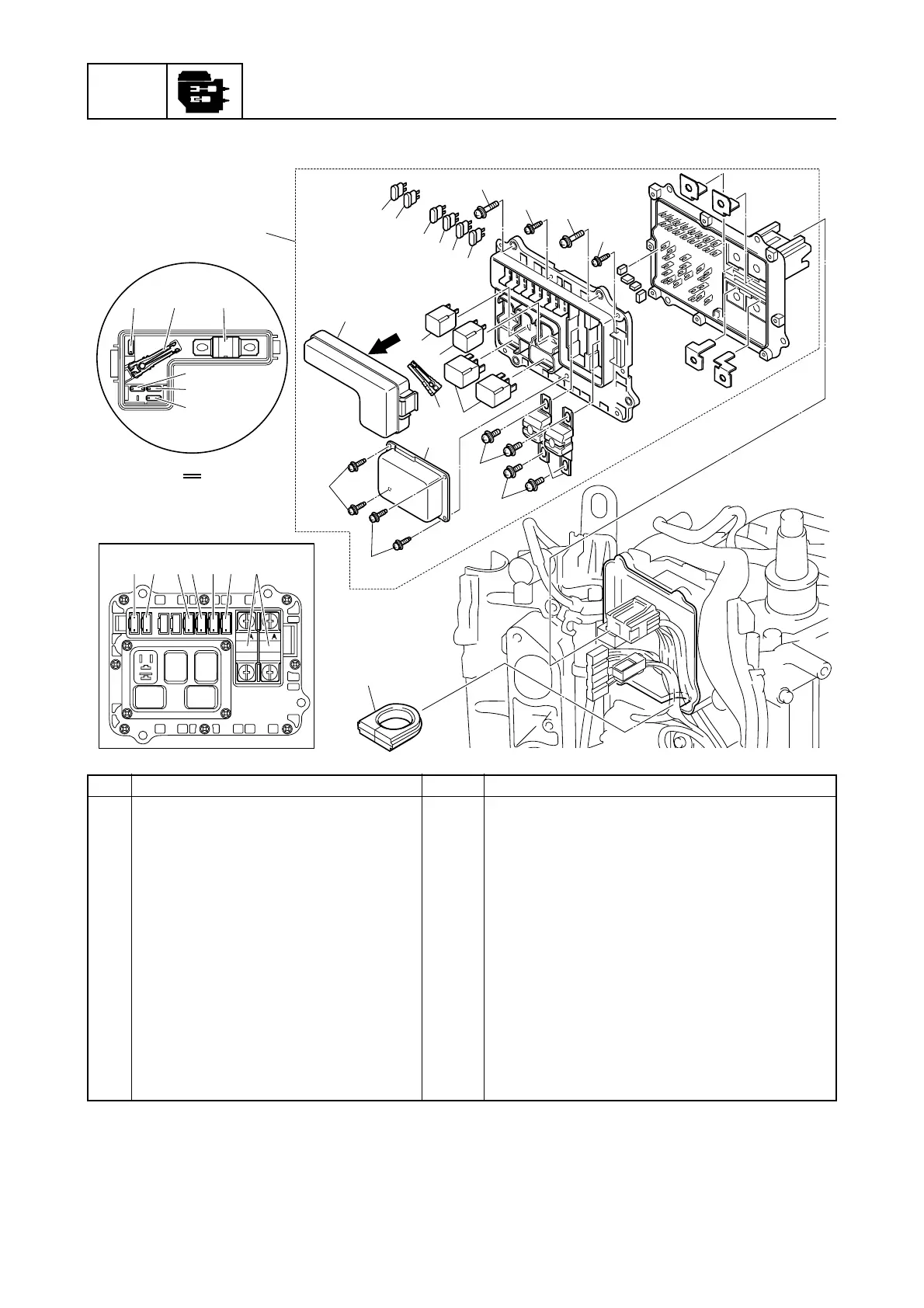

Fuse box
No. Part name Q’ty Remarks
1 Fuse box assembly 1
2 Fuse 3 10 A, Spare is included.
3 Fuse 3 30 A, Spare is included.
4 Fuse 2 20 A, Spare is included.
5 Fuse 2 15 A, Spare is included.
6Screw 4 ø5 × 20 mm
7 Relay 4
8 Cover 1
9 Fuse 3 60 A, Spare is included.
10 Screw 4 M5 × 10 mm
11 Cover 1
12 Fuse puller 1
13 Screw 12 ø3 × 10 mm
14 Grommet 1
60 60
A
A
2
3
3
5
4
2
9
10
10
7
7
7
12
122
5
3
4
8
13
13
11
6
13
13
6
14
23 3
59
9
4
2
1
