Yamaha F200B - Checking the Engine Start Switch

5-66
5
6. Install the starter relay, and then install
the relay cover and fuse cover.
7. Install the intake manifold (STBD). See
“Installing the intake manifold” (6-18).

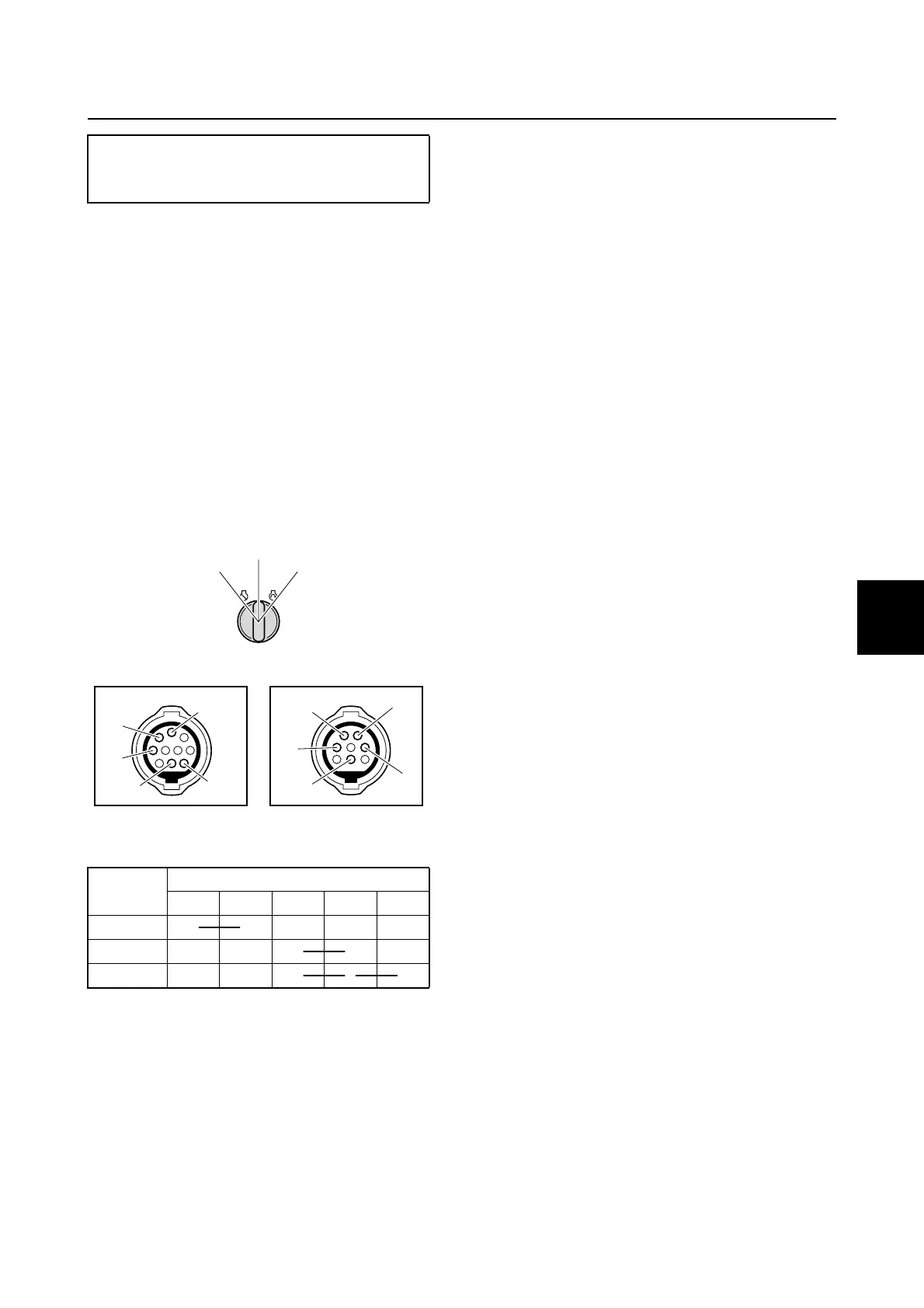

Checking the engine start switch
1. Disconnect the 10-pin coupler. (703
remote control model)
Disconnect the engine start switch cou-
pler. (704 remote control model)
2. Check the engine start switch for continu-
ity.
È 703 remote control model
É 704 remote control model
3. Connect the 10-pin coupler. (703 remote
control model)
Connect the engine start switch coupler.
(704 remote control model)
Starter relay input voltage:
Terminal b–Terminal c
12.0 V (battery voltage)
Switch
position
Terminal
a b cde
OFF C
CC
CC
CC
C
ON C
CC
CC
CC
C
START C
CC
CC
CC
CC
CC
C
ÈÉ
c
d
a
b
e
a
c
b
d
e
OFF
ON
START
Ignition unit and component / Starting unit and component
