5-6
5

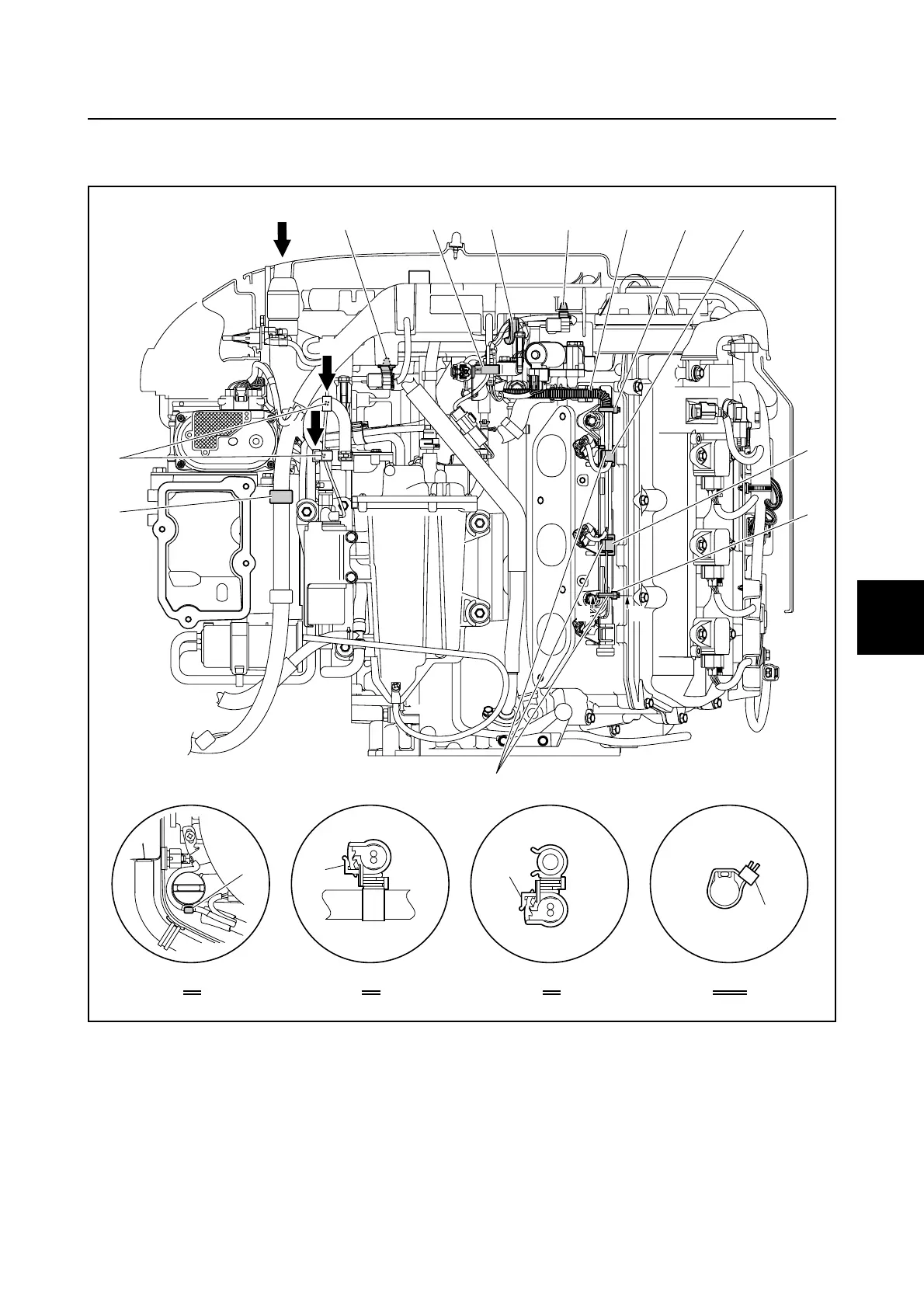

Wiring harness routing
Port
È Install the low-pressure fuel pump coupler
onto the wiring harness guide.
É Fasten the thermoswitch connectors and
wiring harness using the holder.
Ê Install the engine temperature sensor lead
and thermoswitch lead on the hook of the
wiring harness guide.
Ë Install the engine temperature sensor cou-
pler onto the wiring harness guide.
Ì Fasten the wiring harness using the holder
on the fuel rail cover.
Í Fasten the wiring harness to the fuel rail
using the plastic tie. Make sure that there
is no slack in the wiring harness.
ËÈÌÉÍÊ
Ñ
Î
Ï
Ò
Ó
Ô
×
×
Ù
Õ
A
D D
B
C
A B C
D-D
Electrical component / Wiring harness routing
