2-17
TECH
FEA
Technical features and description

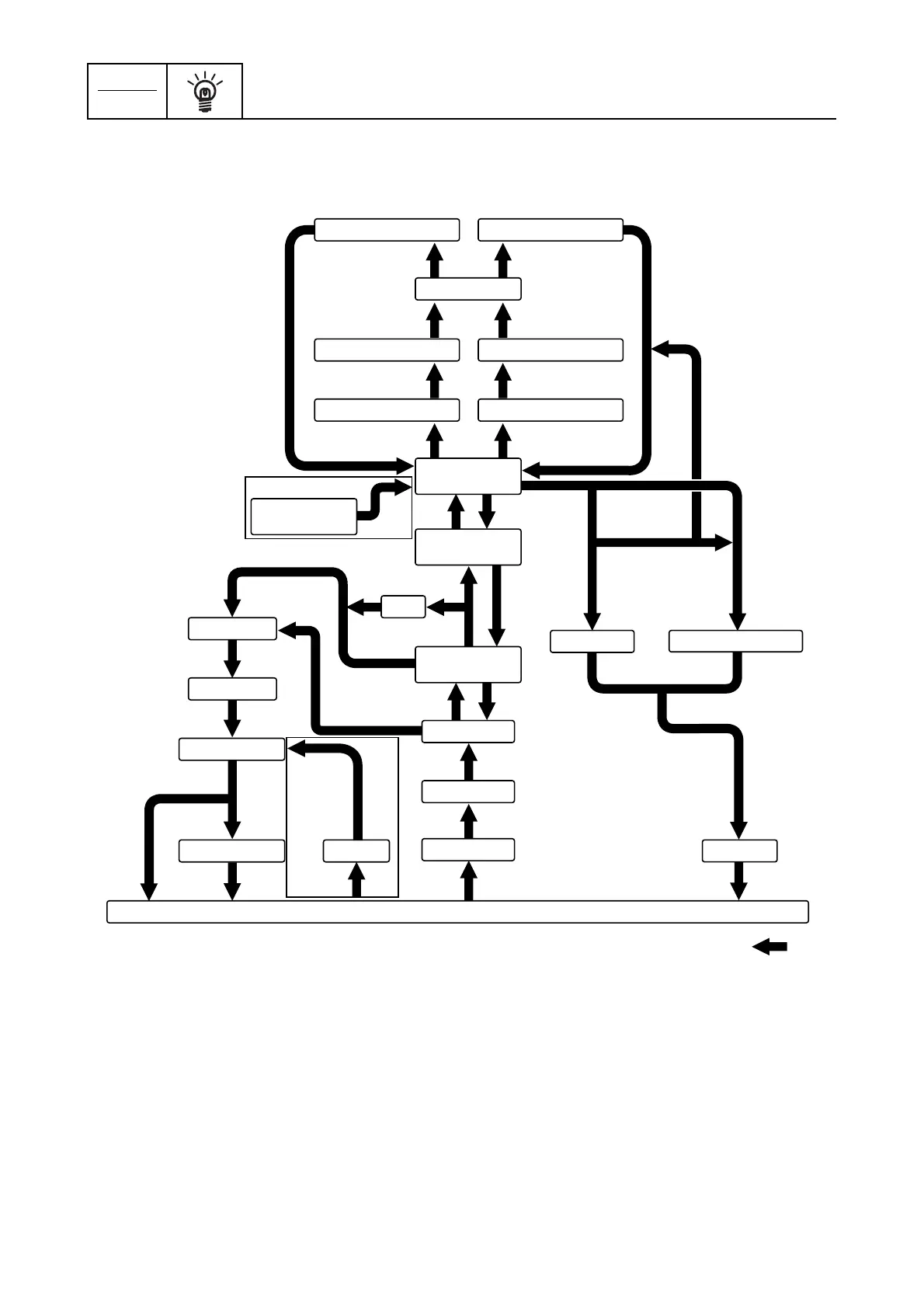

Cooling system
Cooling diagram
È
Cooling water flow
É
When flushing the cooling water passage
Ê
Dynamic water pressure when the boat is cruising (F250G and FL2
50G)
PCV
È
Ê
É
Rectifier Regulator
Fuel cooler
Muffler
Thermostat (PORT)
Thermostat (STBD)
Exhaust cover (PORT)
Cylinder block
Cylinder head (PORT)
Cylinder head
(STBD)
Cylinder block
Upper case
Lower case
Propeller boss
Oil pan
Water pump
Water inlet
Water
Trim tab
Upper
Exhaust guide
Exhaust cover (STBD)
Lower
Exhaust guide
Pilot hole
Flushing device
61
63
