2-16
2
Lubrication system

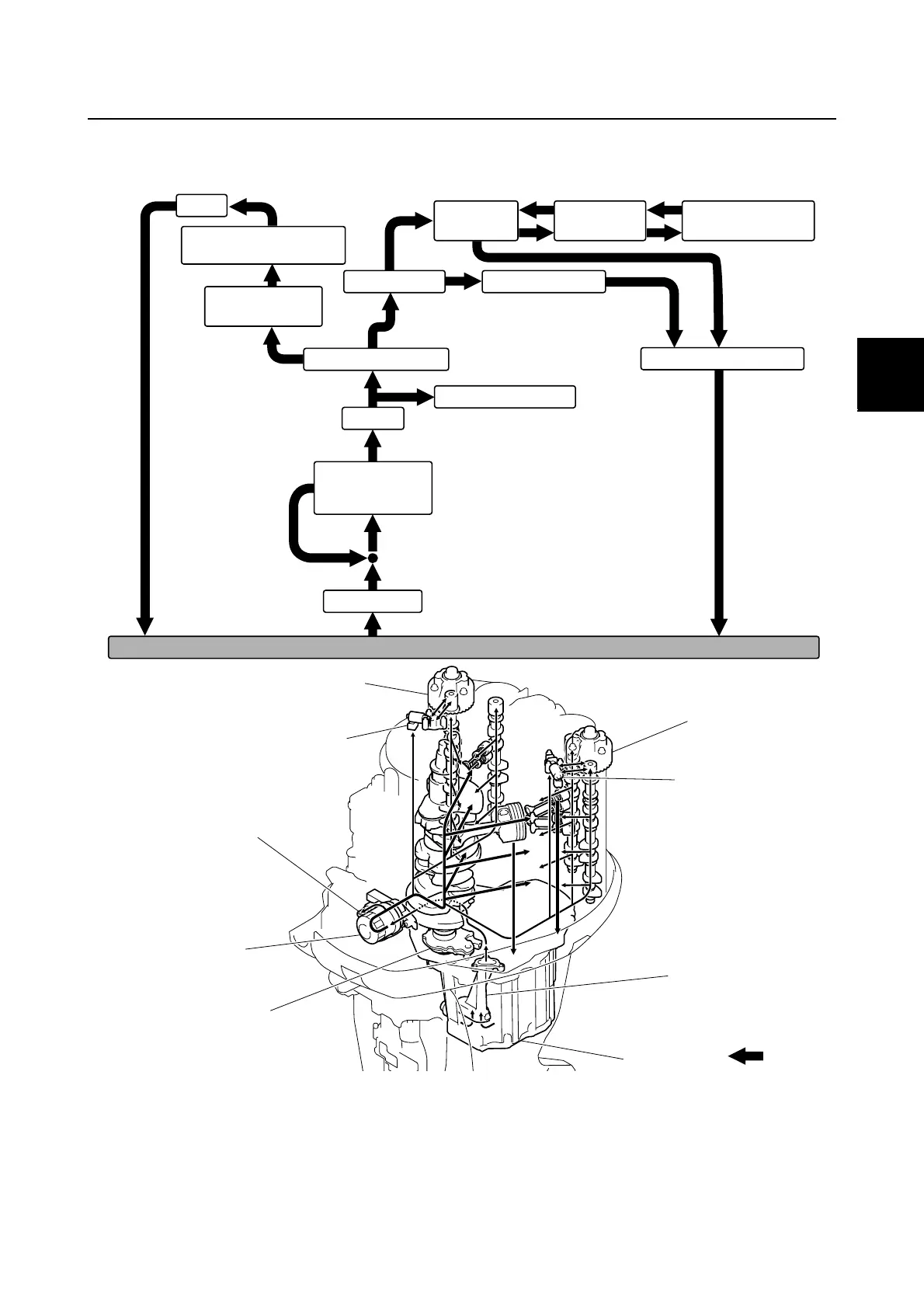

Lubrication diagram
È
Engine oil flow
1
Oil pan
2
Oil strainer
3
Oil pump with relief valve
4
Oil filter
5
Oil pressure sensor
6
OCV
7
VCT assembly
È
OCV
1
2
3
4
5
6
6
7
7
Piston
Crankpin
(connecting rod big
end)
Camshaft
passage hole
VCT assembly
Camshaft journal
Valve and related parts
Crankshaft
main journal
Main gallery
Oil pressure sensor
Oil filter
Oil pump with
relief valve
Oil strainer
Oil pan
Cylinder head
Fuel system / Lubrication system
60
