Rigging information

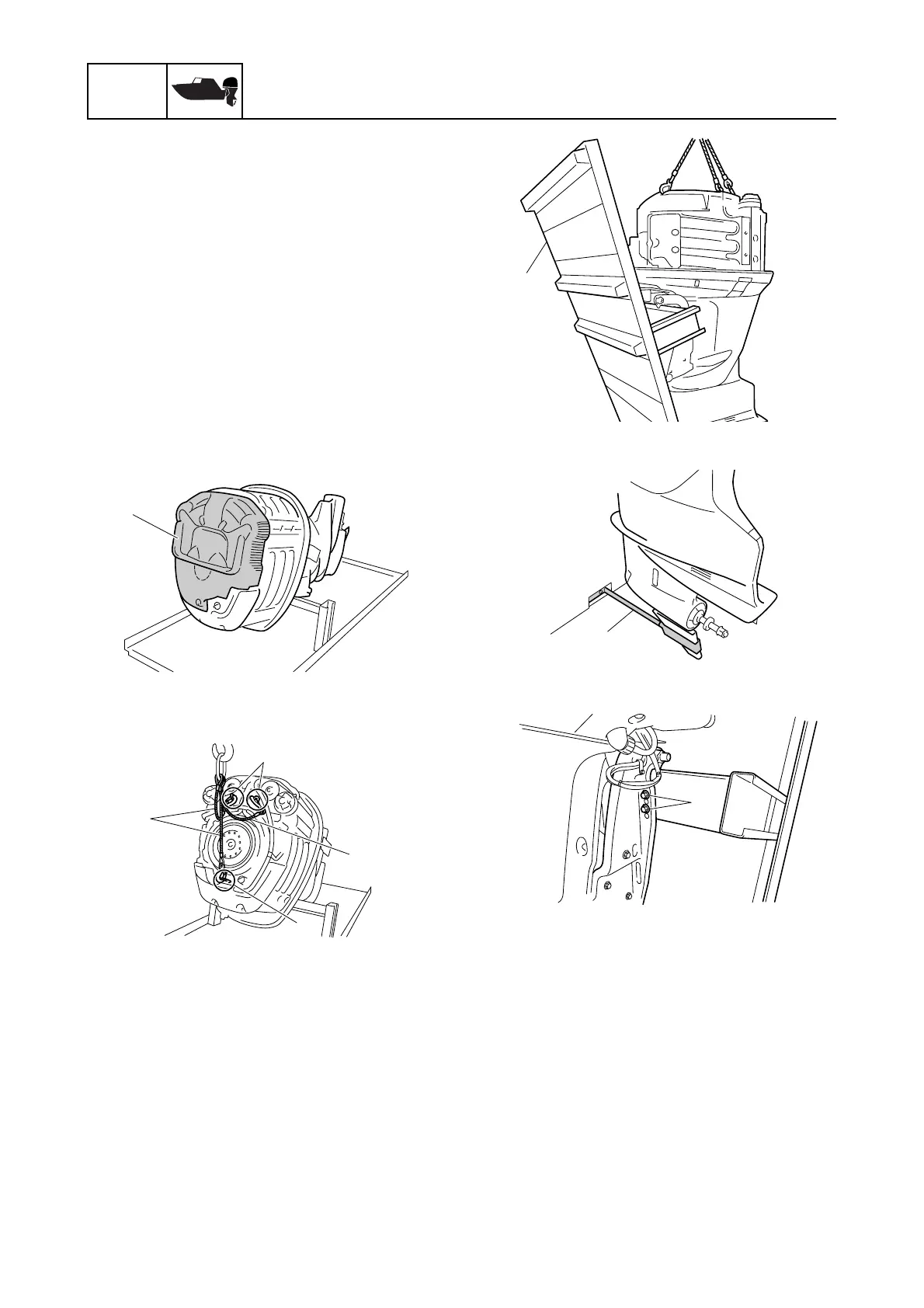

Uncrating procedure
1. Check the crate for shipping damage.
2. Remove the top cover.
3. Remove all of the bolts from the bottom
plate, and then remove the frame.
NOTICE: Be careful not to damage the
outboard motor.
4. Remove the wrapping, and then check
the outboard motor for concealed dam-
age.
5. Remove the top cowling, and then
remove the flywheel magnet cover 1.
6. Install a lifting harness 2 to the engine
hangers 3.
7. Tension the lifting harness.
8. Lift up the outboard motor along with the
bottom plate 4 carefully. NOTICE: Make
sure that the lifting harness does not
damage any parts of the outboard
motor.
9. Remove the skeg holder 5.
10. Remove the bolts 6.
11. Remove the steering retainer, and then
install a hydraulic steering cylinder fol-
lowing the recommendation of the manu-
facturer.
1
2
2
3
3
4
5
6
