Yamaha F200B Service Manual

6-37
FUEL
Fuel system

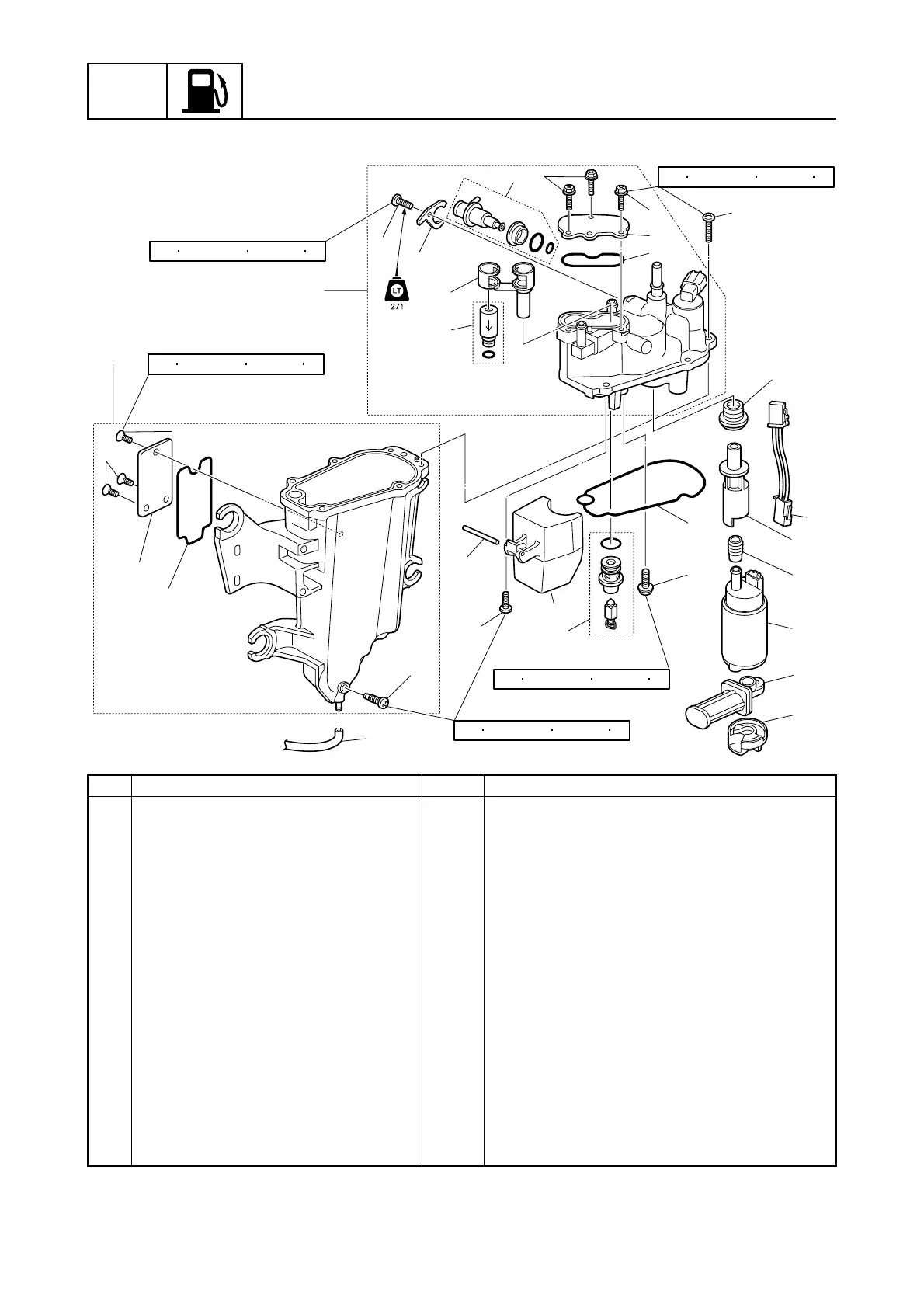

Vapor separator and high-pressure fuel pump
No. Part name Q’ty Remarks
1 Cover assembly 1
2Screw 1 M5 × 12 mm
3 Holder 1
4 Pressure regulator 1
5Bolt 3 M4 × 12 mm
6 Cover 1
7Gasket 1 39
3939
39
8 Filter 1
9 Check valve 1
10 Screw 6 M4 × 16 mm
11 Gasket 1 39
3939
39
12 Grommet 1
13 Joint 1
14 Damper 1
15 High-pressure fuel pump 1
16 Lead 1
17 Filter 1
4 N m (0.4 kgf m, 3.0 ft lb)
4 N m (0.4 kgf m, 3.0 ft lb)
2 N m (0.2 kgf m, 1.5 ft lb)
2 N m (0.2 kgf m, 1.5 ft lb)
2 N m (0.2 kgf m, 1.5 ft lb)
3
2
5
4
8
9
5
6
7
10
1
12
15
11
19
16
17
18
13
14
20
23
21
22
28
29
24
25
27
26
25
