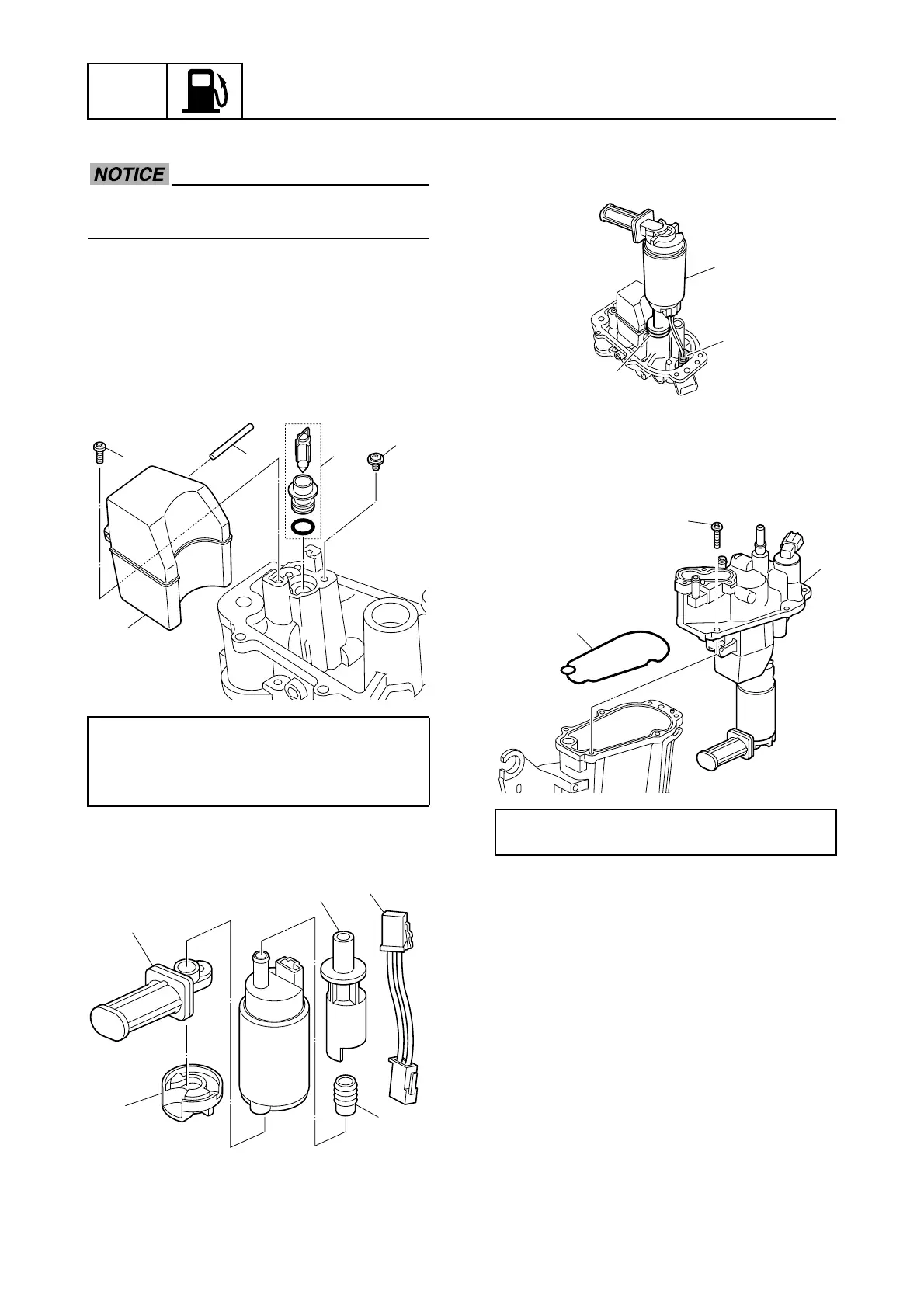

Assembling the vapor separator
Do not reuse a gasket, always replace it
with a new one.
1. Install the needle valve assembly 1, and
then tighten the needle valve assembly
screw 2 to the specified torque.
2. Install the float 3 and pin 4, and then
tighten the float pin screw 5 to the spec-
ified torque.
3. Install the damper 6, joint 7, filter 8, fil-
ter holder 9, and lead 0.
4. Connect the high-pressure fuel pump
coupler a, and then install the grommet
A and high-pressure fuel pump B.
5. Install a new gasket C and the float
chamber cover D, and then tighten the
float chamber cover screws E to the
specified torque.
6. Install the check valve F, the filter G, a
new gasket H, and the vapor separator
cover I, and then tighten the vapor sep-
arator cover bolts J to the specified
torque.
Needle valve assembly screw 2:
2 N·m (0.2 kgf·m, 1.5 ft·lb)
Float pin screw 5:
2 N·m (0.2 kgf·m, 1.5 ft·lb)
5
3
4
1
2
8
6
7
9
0
Float chamber cover screw E:
2 N·m (0.2 kgf·m, 1.5 ft·lb)
a
B
A
C
E
D
