7-16
7

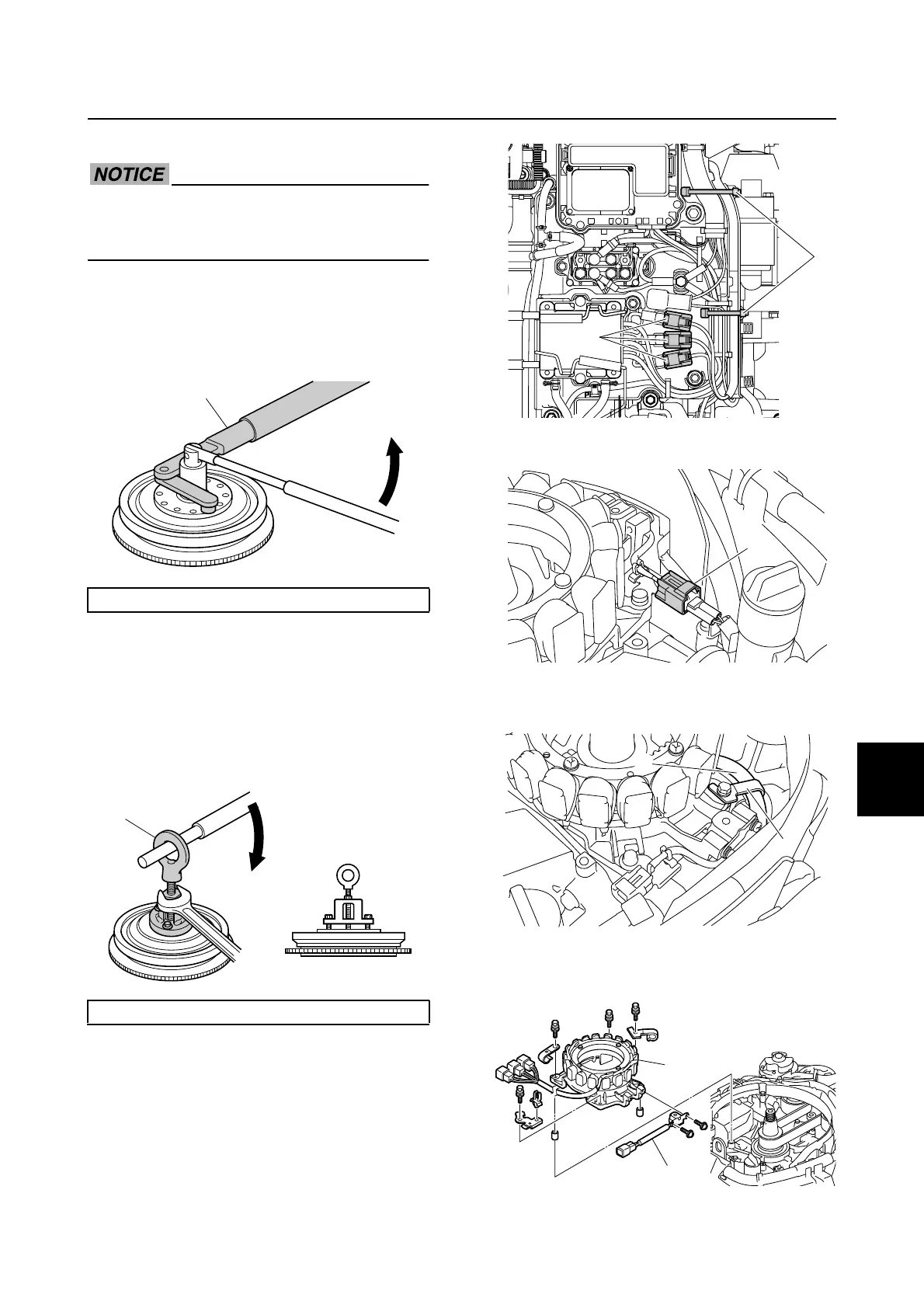

Removing the flywheel magnet
Do not turn the flywheel magnet counter-
clockwise. Otherwise, the water pump
impeller could be damaged.
1. Loosen the flywheel magnet nut.
NOTICE: Apply force in the direction
of the arrow to prevent the special
service tool 1 from slipping off easily.
2. Remove the flywheel magnet using the
special service tool 2, and then remove
the Woodruff key. NOTICE: To prevent
damage to the engine or tools, screw
in the puller set bolts evenly and com-
pletely so that the flywheel puller is
parallel to the flywheel magnet.
3. Remove the plastic ties 3, and then dis-
connect the stator assembly couplers a.
4. Disconnect the pulser coil coupler b.
5. Remove the vapor gas hose 4 from the
holder 5.
6. Remove the stator assembly 6, and
then remove the pulser coil 7.
Flywheel holder 1: 90890-06522
Flywheel puller 2: 90890-06521
1
2
3
a
b
5
4
6
7
Flywheel magnet
