7-17
POWR
Power unit
Checking the pulser coil
1. Check the pulser coil. See step 6 in
“Checking the pulser coil” (5-55).

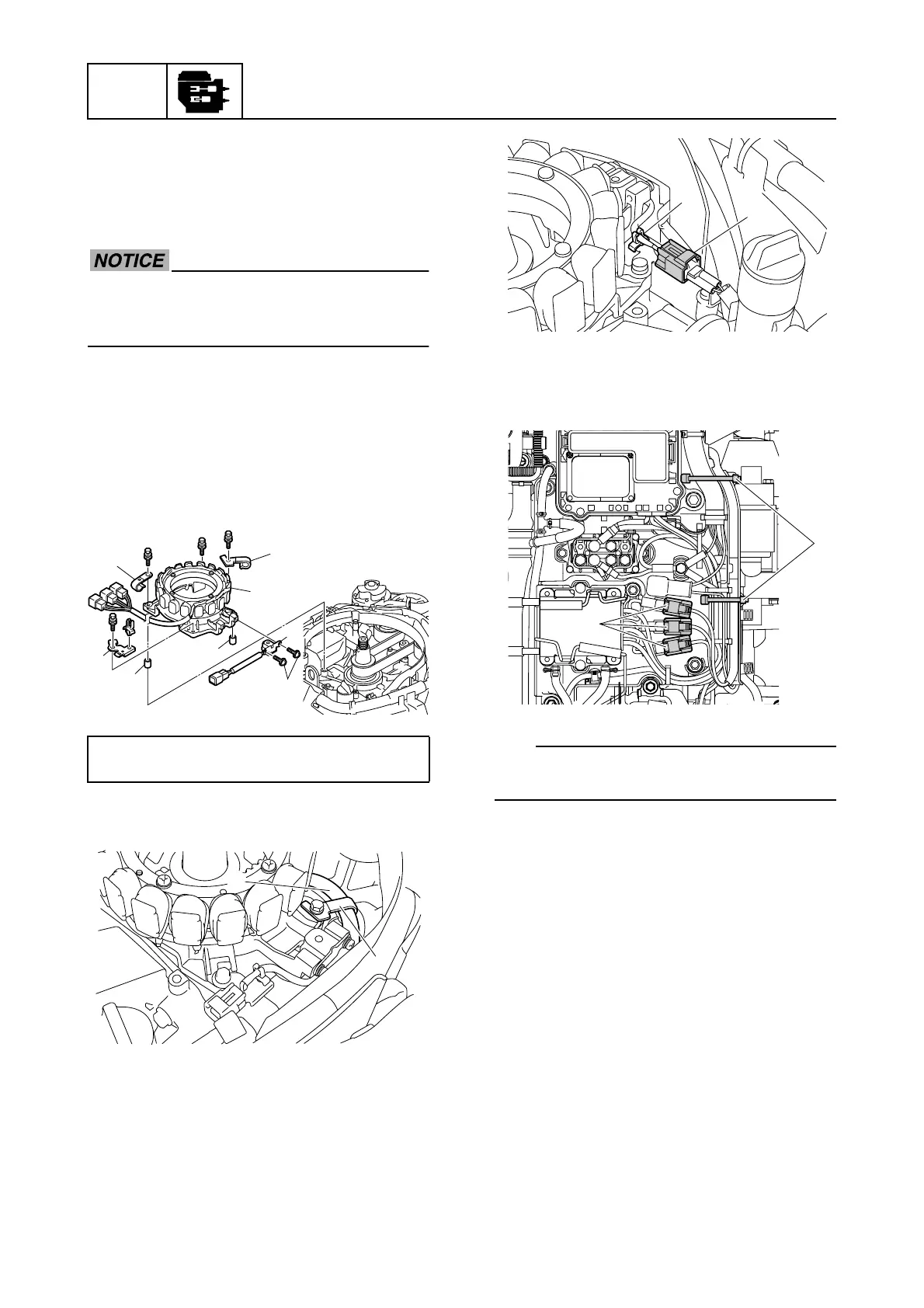

Installing the flywheel magnet
Do not turn the flywheel magnet counter-
clockwise. Otherwise, the water pump
impeller could be damaged.
1. Install the pulser coil 1 to the stator
assembly 2, and then tighten the pulser
coil screws 3 to the specified torque.
2. Install the dowels 4 and stator assembly
2, and then install the holders 5 and 6
and bracket 7.
3. Fasten the vapor gas hose 8 using the
holder 5.
4. Connect the pulser coil coupler a, and
then fasten the pulser coil lead using the
holder 9.
5. Connect the stator assembly couplers b,
and then fasten the stator assembly lead
using the plastic ties 0.
TIP:
To fasten the stator assembly lead, see “Wir-
ing harness routing” (5-6).
6. Install the Woodruff key A, and then
install the flywheel magnet B.
Pulser coil screw 3:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
2
5
1
3
6
7
4
4
5
8
a
9
0
b
