2-12
2
Fuel system

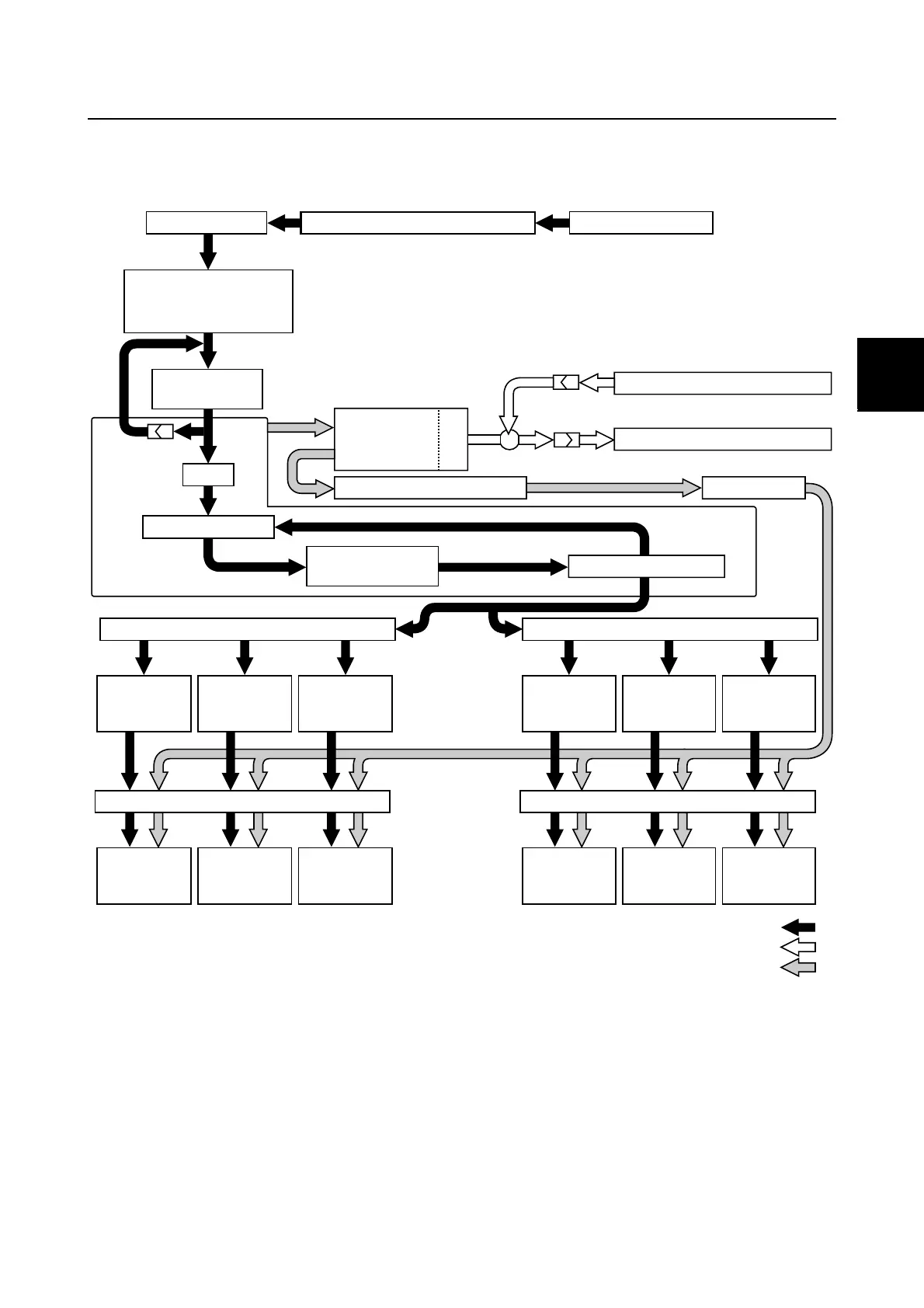

Fuel diagram
È
Fuel fl
ow
É
Air flow
Ê
Vapor gas flow
É
È
Ê
Primer pump
Boat fuel filter (optional)
Boat fuel tank
Fuel filter (with water
separator and water
detection switch)
Check valve
Atmosphere (cowl inside)
Check valve
Atmosphere (cowl outside)
Low-pressure
fuel pump
Filter
Float chamber
High-pressure
fuel pump
Canister
Vapor shut-off valve
Surge tank
Pressure regulator
Fuel rail (PORT)
Fuel
injector #6
Fuel
injector #4
Fuel
injector #2
Combustion
chamber #6
Combustion
chamber #4
Combustion
chamber #2
Intake manifold (PORT)
Fuel rail (STBD)
Fuel
injector #1
Fuel
injector #3
Fuel
injector #5
Combustion
chamber #1
Combustion
chamber #3
Combustion
chamber #5
Intake manifold (STBD)
Check valve
Vapor
separator assembly
Power unit system / Fuel system
