Yamaha F200B Service Manual

5-12
5
Rear
È Fasten the wiring harness using the
holder.
É Fasten the wiring harness (main), wiring
harness (to cam position sensor [PORT
IN]), and wiring harness (to condenser) to
the engine ECM bracket using the plastic
tie.
Ê Place the condenser between the engine
ECM bracket and the wiring harness, and
then fasten the condenser using the plas-
tic tie.
Ë Route the wiring harness to the inside of
the blowby hose.
Ì Install the holder and fasten the plastic ties
in the order Ë, ×, and É.
ËÈ
Í
É
Î
Ê
Ó
ÏÑÒ
Ô
Õ
×
Ì

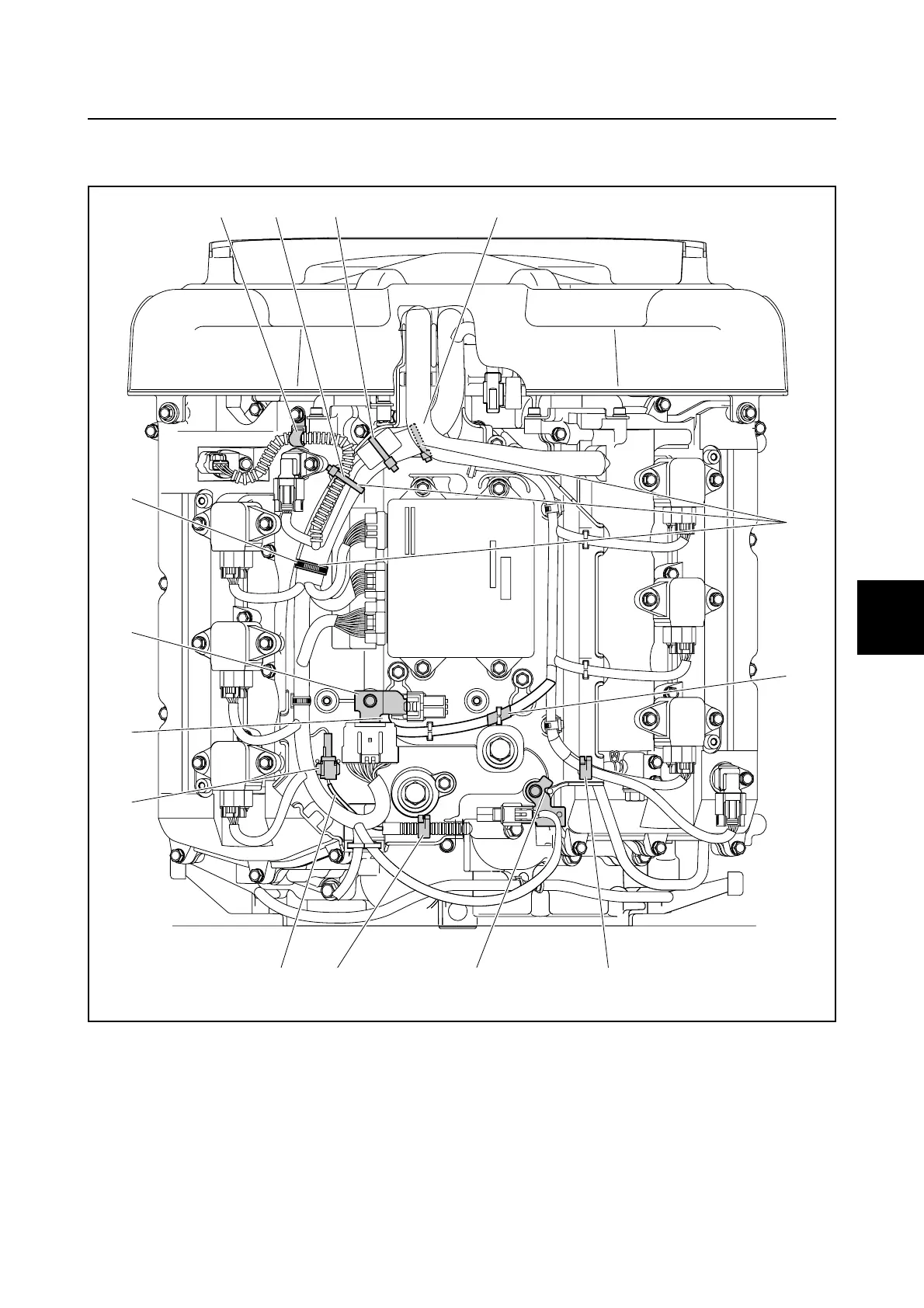

Wiring harness routing
