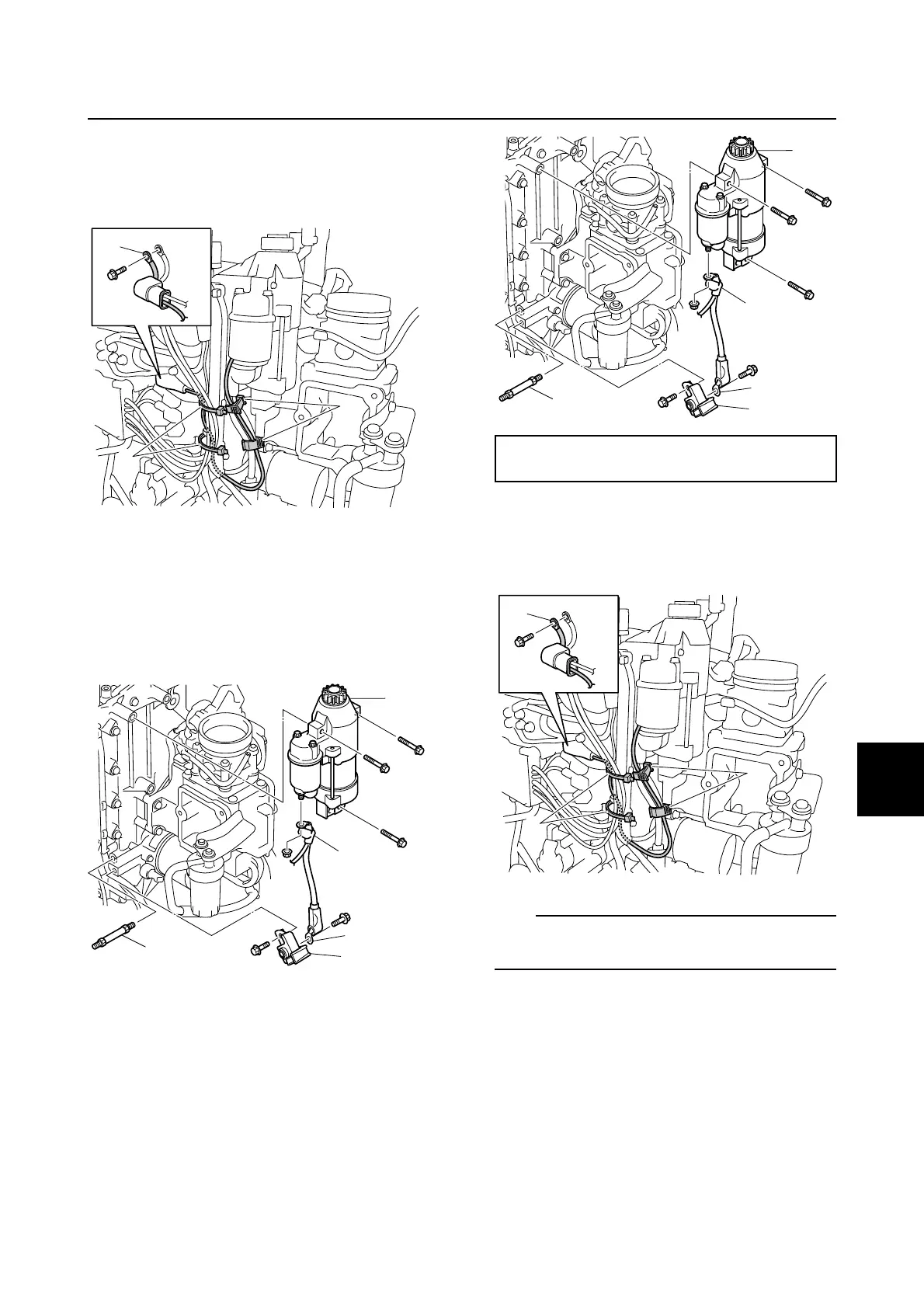

Removing the starter motor
1. Disconnect the starter motor lead a, and
then remove the plastic ties 1 and hold-
ers 2.
2. Remove the junction box wiring harness
extension terminal b, and then remove
the starter motor 3.
3. Remove the junction box wiring harness
extension terminal c, terminal 4, and
terminal stud bolt 5.
Installing the starter motor
1. Install the terminal 1, junction box wiring
harness extension terminal a, and termi-
nal stud bolt 2, and then tighten the ter-
minal stud bolt to the specified torque.
2. Install the starter motor 3, and then
install the junction box wiring harness
extension terminal b.
3. Connect the starter motor lead c and
brown lead of the wiring harness, and
then fasten the starter motor lead using
the holders 4 and plastic ties 5.
TIP:
To fasten the starter motor lead, see “Wiring
harness routing” (5-6).
a
2
1
3
5
4
b
c
Terminal stud bolt 2:
26 N·m (2.6 kgf·m, 19.2 ft·lb)
3
2
1
b
a
c
4
5
Starter motor
