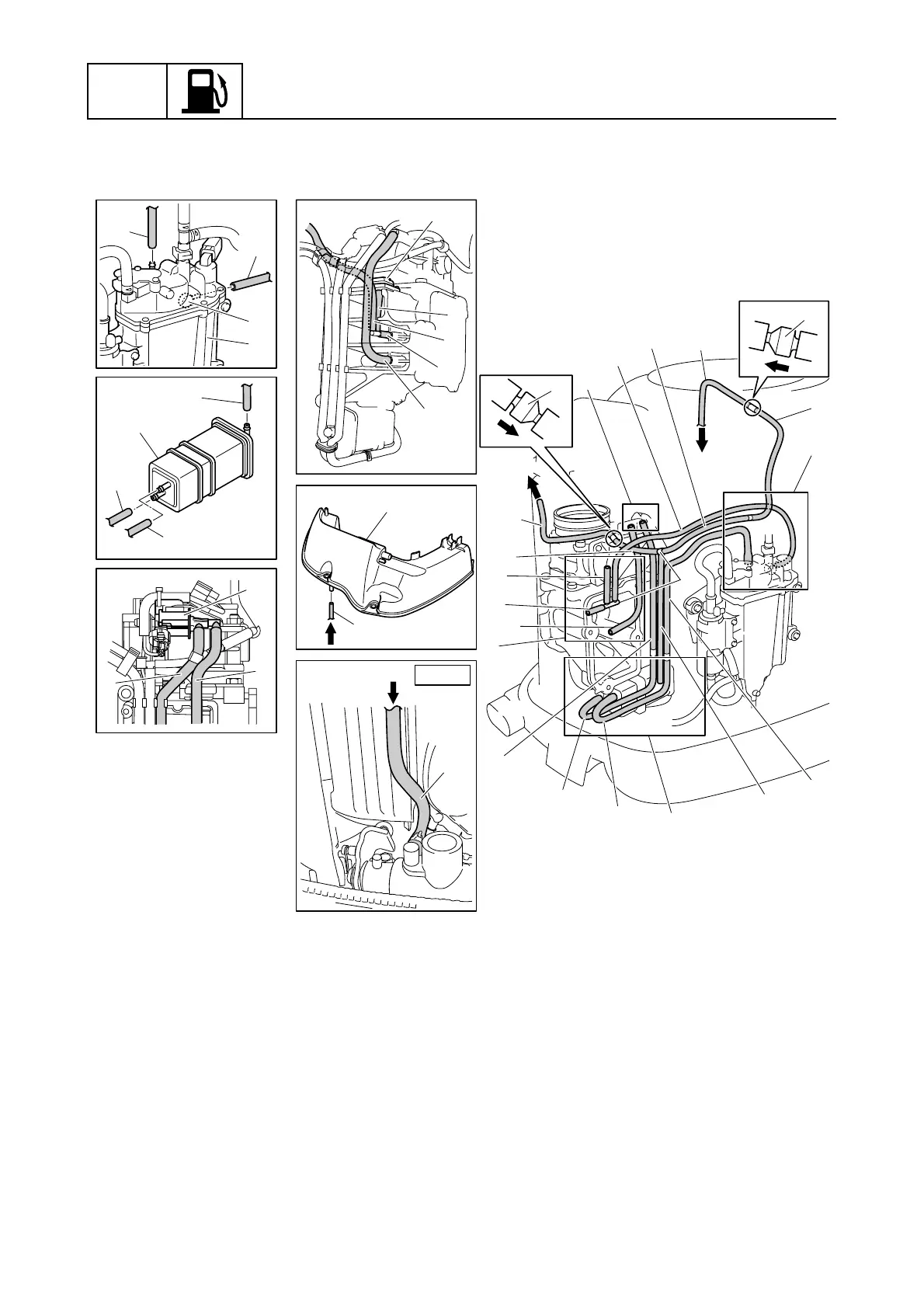

Fuel system
Vapor gas hose
1 Vapor gas hose (vapor separator to joint)
2 Vapor gas hose (canister atmospheric port
to joint)
3 Vapor gas hose (joint to canister tank port)
4 Vapor gas hose (canister purge port to
joint)
5 Vapor gas hose (joint to vapor shut-off
valve)
6 Vapor gas hose (vapor shut-off valve to
surge tank)
7 Vacuum hose (surge tank to joint)
8 Vacuum hose (joint to air pressure sensor)
9 Vapor gas hose (check valve to joint)
0 Vapor gas hose (intake silencer to check
valve)
A Vacuum hose (joint to pressure regulator)
B Vapor gas hose (joint to joint)
C Vapor gas hose (check valve to bottom
cowling)
D Vapor gas hose (joint to check valve)
a Joint
b Check valve
c Vapor separator
