6-39
FUEL
Fuel system

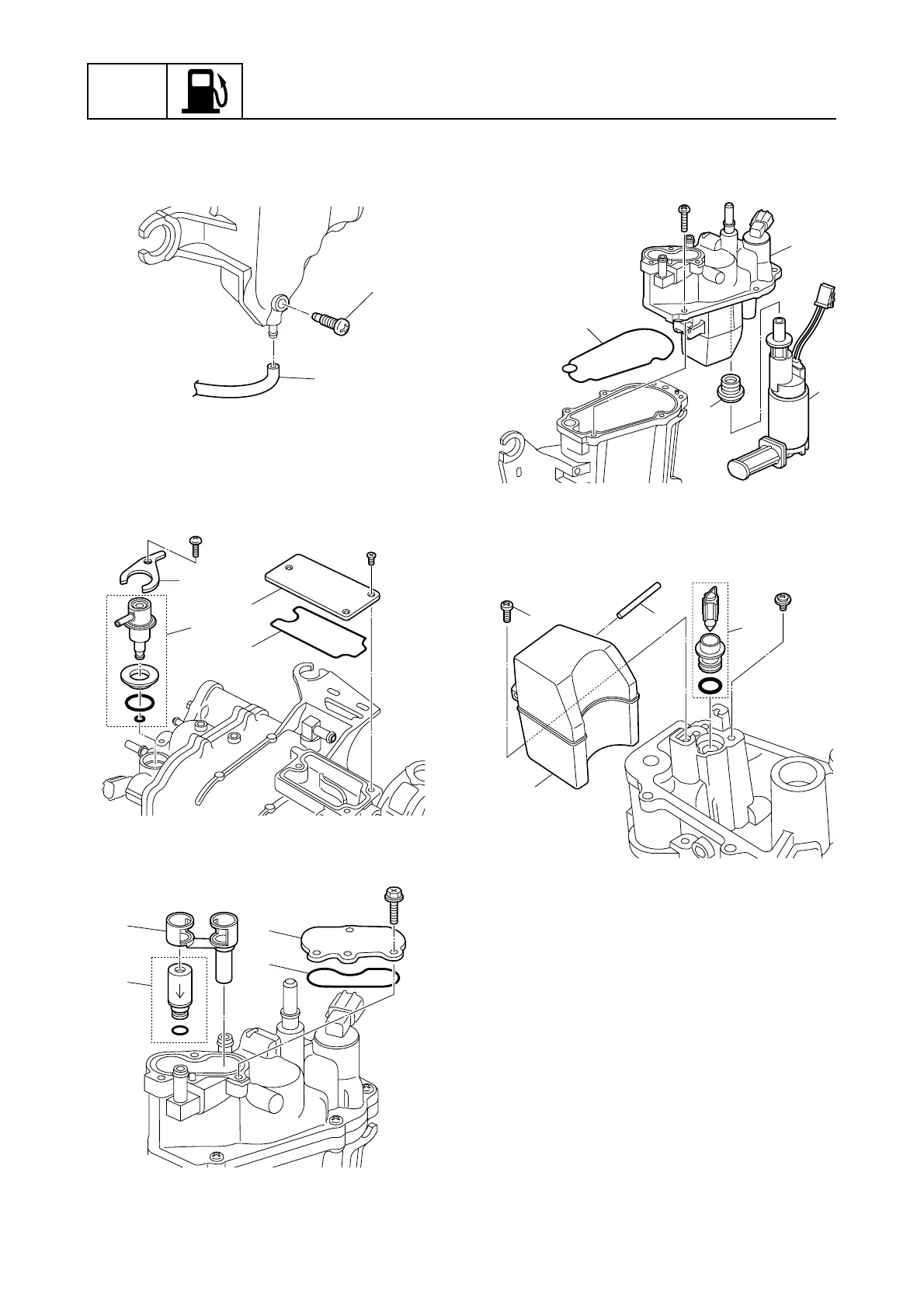

Disassembling the vapor separator
1. Remove the vapor separator drain screw
1 and drain hose 2.
2. Remove the fuel cooler cover 3 and
gasket 4.
3. Remove the holder 5, and then remove
the pressure regulator 6.
4. Remove the vapor separator cover 7,
gasket 8, filter 9, and check valve 0.
5. Remove the float chamber cover A, gas-
ket B, high-pressure fuel pump C, and
grommet D.
6. Remove the screw E, and then remove
the pin F, float G, and needle valve
assembly H.
7. Remove the lead I and filter holder J,
and then remove the filter K, joint L,
and damper M.
1
2
5
6
3
4
9
7
8
0
B
D
C
A
E
G
F
H
