7-8
7

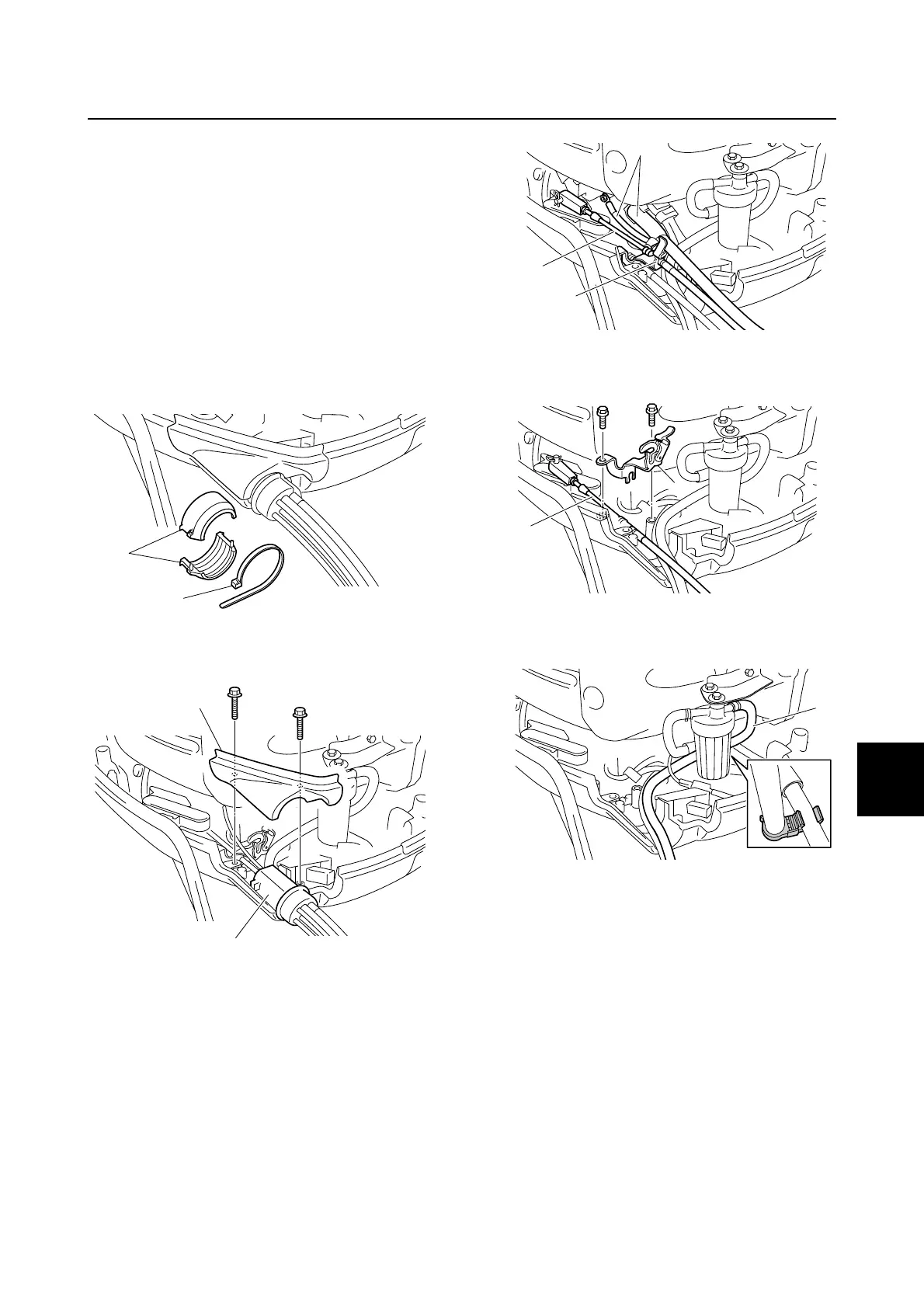

Removing the power unit
Make sure to reduce the fuel pressure before
removing the power unit. See “Reducing the
fuel pressure” (6-7).
It is recommended to loosen the flywheel
magnet nut before removing the power unit to
improve working efficiency. See “Removing
the flywheel magnet” (7-16).
1. Remove the flywheel magnet cover.
2. Remove the plastic tie 1, and then
remove the rigging tube retainer 2.
3. Remove the retaining plate 3 and rig-
ging grommet 4.
4. Disconnect the battery cables 5.
5. Remove the throttle cable 6 from the
holder a, and then disconnect the throt-
tle cable.
6. Remove the cable holder 7, and then
disconnect the shift cable 8.
7. Disconnect the fuel hose 9 from the fuel
filter.
8. Remove the PTT switch coupler b from
the bracket 0, and then disconnect the
PTT switch coupler.
9. Remove the water detection switch cou-
pler c and isolator coupler d from the
bracket 0.
1
2
3
4
5
6
a
8
7
9
Power unit assembly
To Next Page
