6-33
FUEL
Fuel system

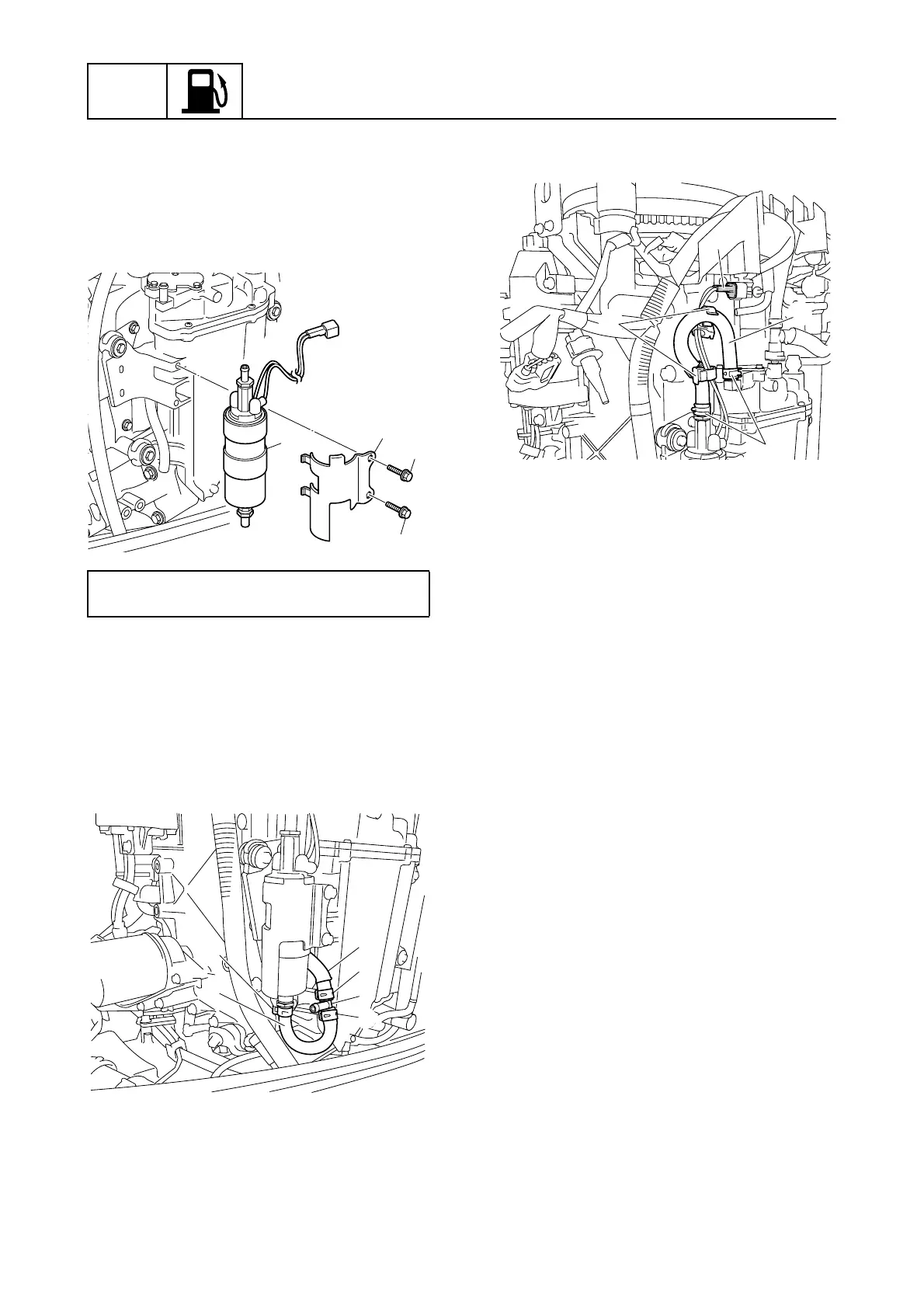

Installing the low-pressure fuel
pump
1. Install the low-pressure fuel pump 1 and
cover 2, and then tighten the low-pres-
sure fuel pump cover bolts 3 to the
specified torque.
2. Install the joint 4 to the fuel hose a, and
then fasten the fuel hose using the clamp
5.
3. Connect the fuel hose 6 to the low-pres-
sure fuel pump and joint 4, and then fas-
ten the fuel hose using the clamps 7 and
8.
4. Connect the fuel hose 9, and then fas-
ten it using the clamps 0.
5. Install the fuel hose 9 to the holders A.
6. Connect the low-pressure fuel pump cou-
pler b.
Low-pressure fuel pump cover bolt 3:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
2
3
3
1
6
8
4
7
5
a
A
9
b
0
