FUEL
Fuel system
Draining the fuel

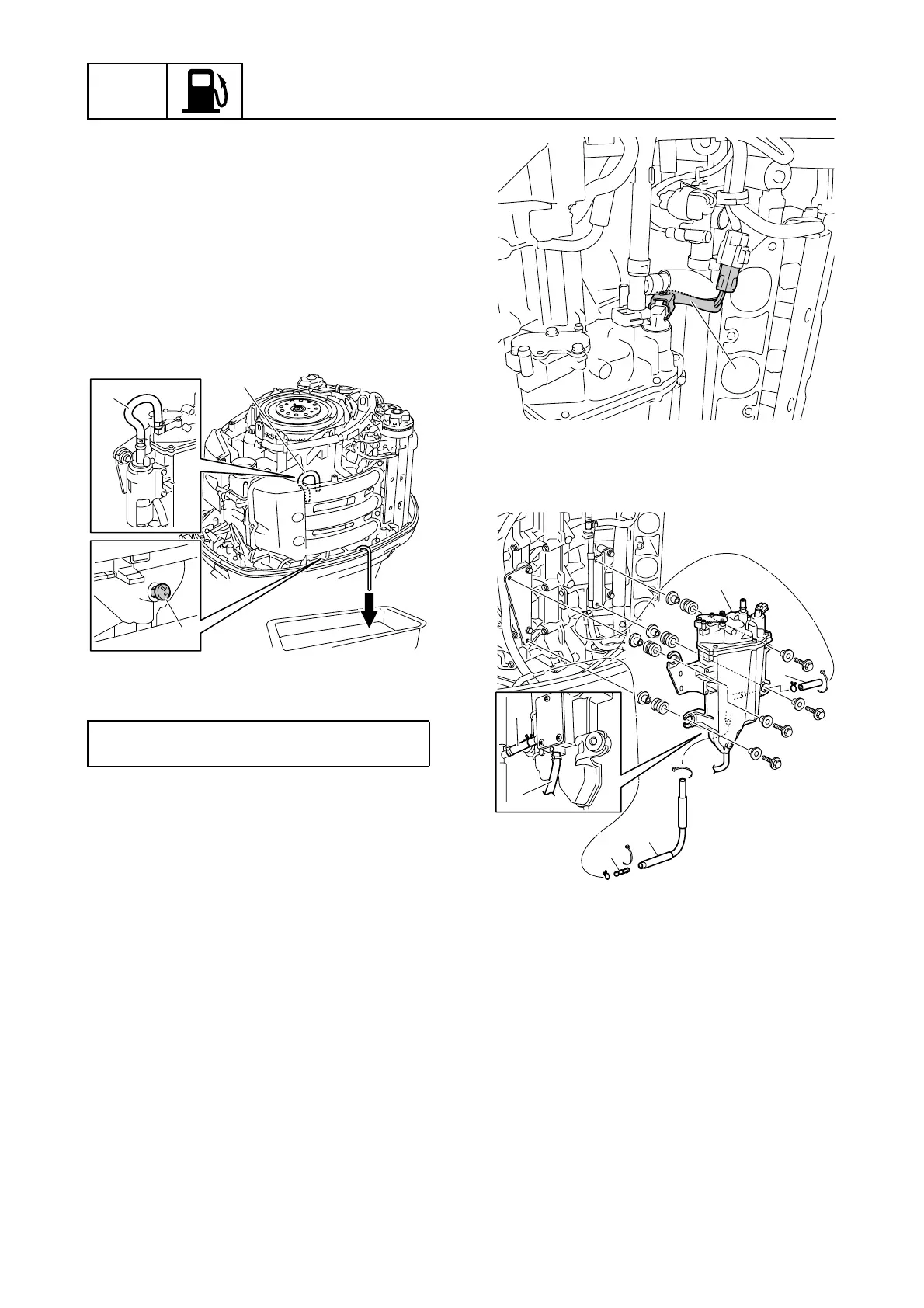

1. Remove the flywheel magnet cover.
2. Remove the intake silencer. See
“Removing the intake silencer” (6-17).
3. Disconnect the fuel hose 1 from the
vapor separator assembly.
4. Loosen the vapor separator drain screw
2 to drain the fuel into a drain pan.
5. Tighten the vapor separator drain screw
2 to the specified torque.
6. Connect the fuel hose to the vapor sepa-
rator assembly.
7. Install the intake silencer. See “Installing
the intake silencer” (6-19).
8. Install the flywheel magnet cover.
Removing the vapor separator
Cover the fuel components using a rag to
prevent fuel from spilling out.
1. Disconnect the quick connector. See
steps 3–5 in “Disconnecting the quick
connector” (6-7).
2. Remove the vapor separator wiring har-
ness extension 1.
3. Remove the vapor separator assembly
2, and then remove the cooling water
hoses 3 and 4 and joint 5.
Installing the vapor separator
1. Install the joint 1 to the cooling water
hose a, and then fasten the cooling
water hose using the clamp 2.
2. Install the cooling water hose 3, and
then fasten it using the plastic ties 4.
3. Install the cooling water hose 5, and
then fasten it using the clamp 6 and
plastic tie 7.
4. Install the vapor separator assembly 8.
Vapor separator drain screw 2:
2 N·m (0.2 kgf·m, 1.5 ft·lb)
