Yamaha F200B Service Manual

5-3
ELEC
Electrical system

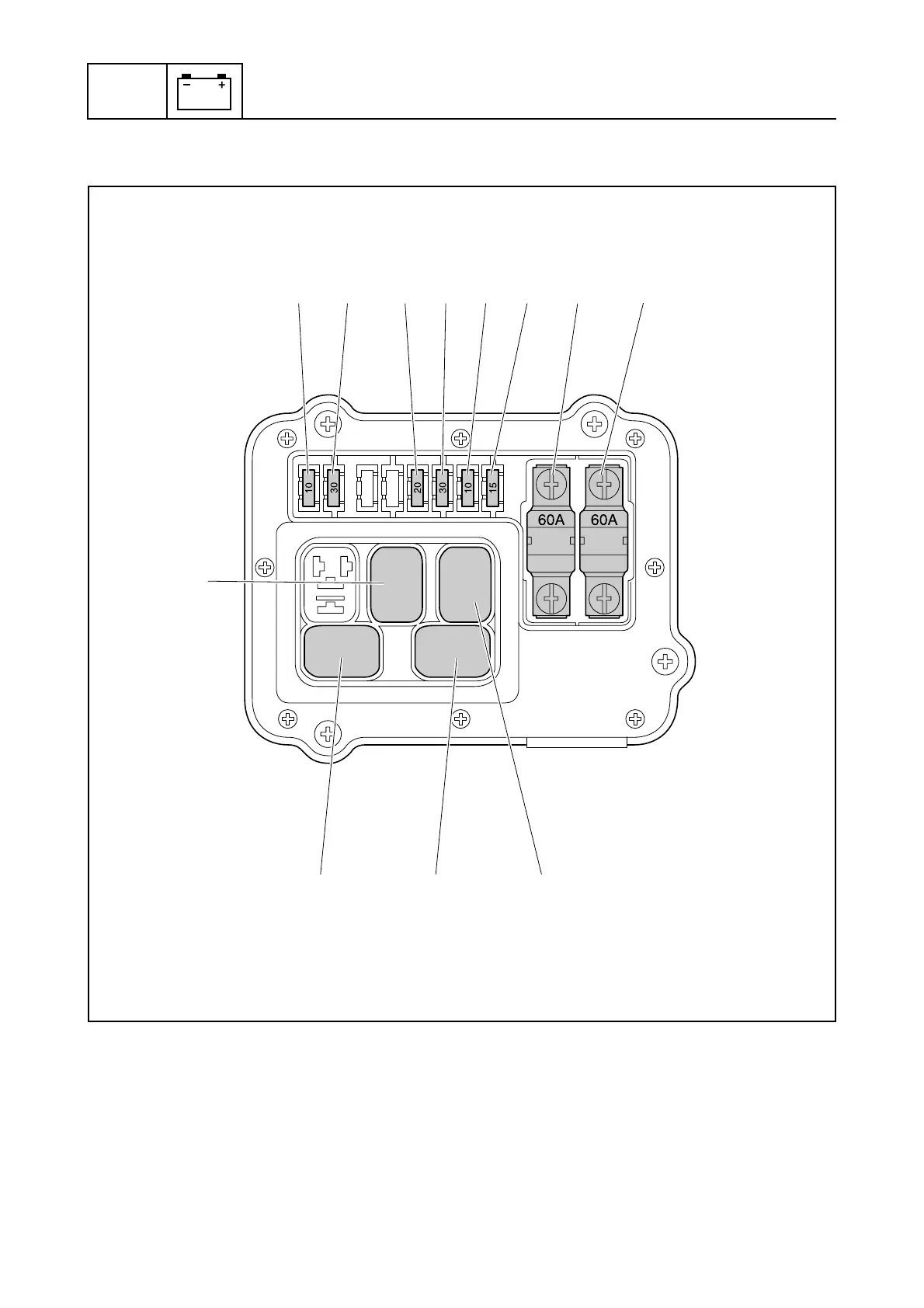

Fuse holder
1 Fuse (10 A) (ETV, engine ECM)
2 Fuse (30 A) (ignition coil, fuel injector,
VCT, engine ECM)
3 Fuse (20 A) (engine start switch, PTT
switch)
4 Fuse (30 A) (starter relay)
5 Fuse (10 A) (low-pressure fuel pump)
6 Fuse (15 A) (high-pressure fuel pump)
7 Fuse (60 A) (starting battery)
8 Fuse (60 A) (house [accessory] battery)
9 Starter relay
0 Main relay
A ETV motor relay
B High-pressure fuel pump relay
9
1 2 3 4 5
0
6
7
A
8
B
