Yamaha F200B Service Manual

7-74
7

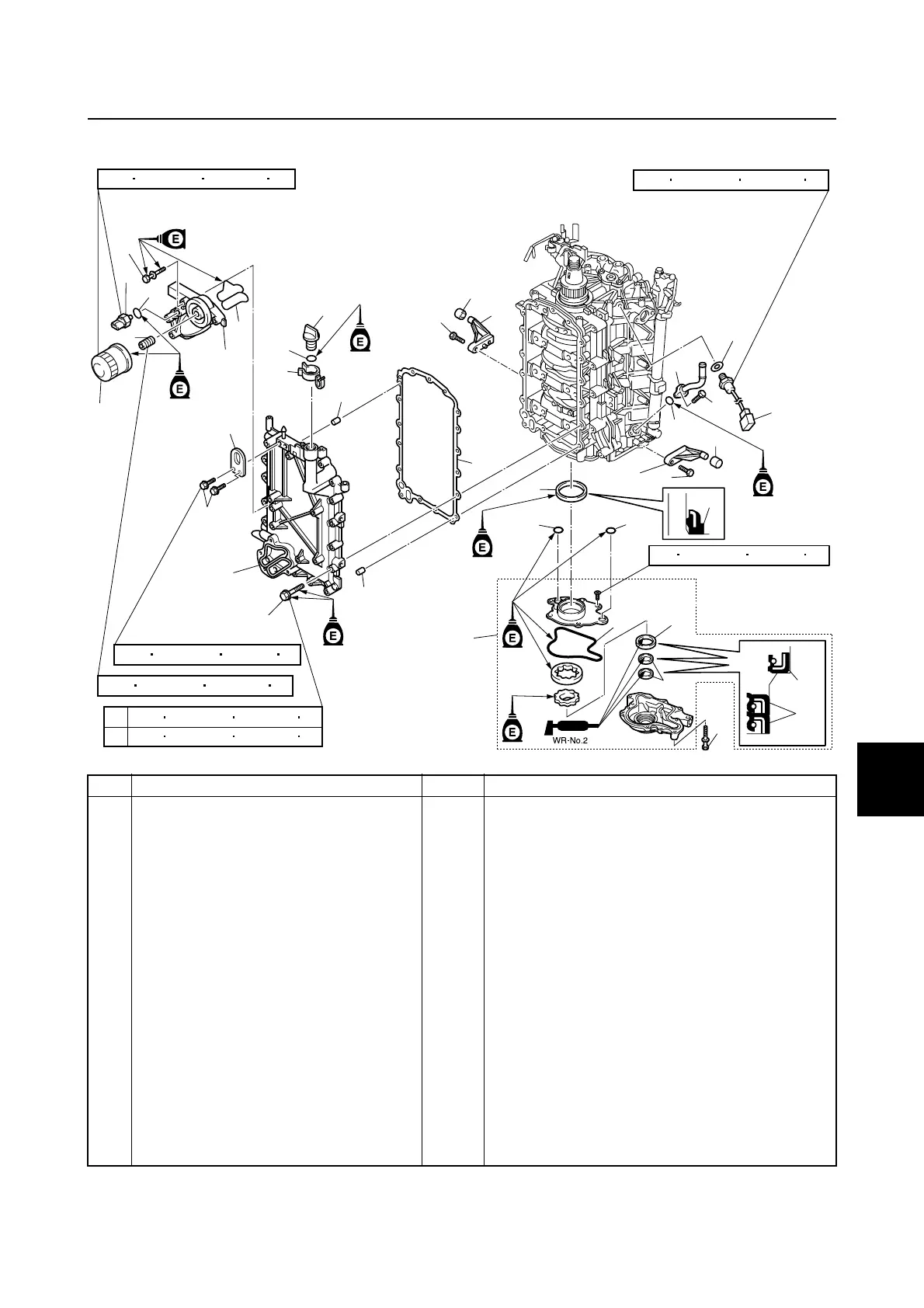

Crankcase
No. Part name Q’ty Remarks
1Bolt 5 M6 × 45 mm
2 Oil pressure sensor 1
3O-ring 1 39
3939
39
4 Oil filter 1
5 Union bolt 1
6 Oil filter bracket 1
7Gasket 1 39
3939
39
8 Oil filler cap 1
9O-ring 1 39
3939
39
10 Holder 1
11 Engine hanger 1
12 Bolt 2 M6 × 18 mm
13 Crankcase cover 1
14 Bolt 17 M8 × 45 mm
15 Dowel 2
16 Gasket 1 39
3939
39
17 Bolt 4 M6 × 25 mm
18 N m (1.8 kgf m, 13.3 ft lb)
34 N
m (3.4 kgf m, 25.1 ft lb)
14
17
18
19
23
24
25
16
15
15
8
9
10
13
11
12
1
3
2
4
5
6
7
15 N m (1.5 kgf m, 11.1 ft lb)
12 N m (1.2 kgf m, 8.9 ft lb)
14 N m (1.4 kgf m, 10.3 ft lb)
28 N
m (2.8 kgf m, 20.7 ft lb)
1
2
26
26
27
27
28
29
29
30
30
32
31
4 N m (0.4 kgf m, 3.0 ft lb)
17
18
20
22
21
Cooling water passage cover / Crankcase
